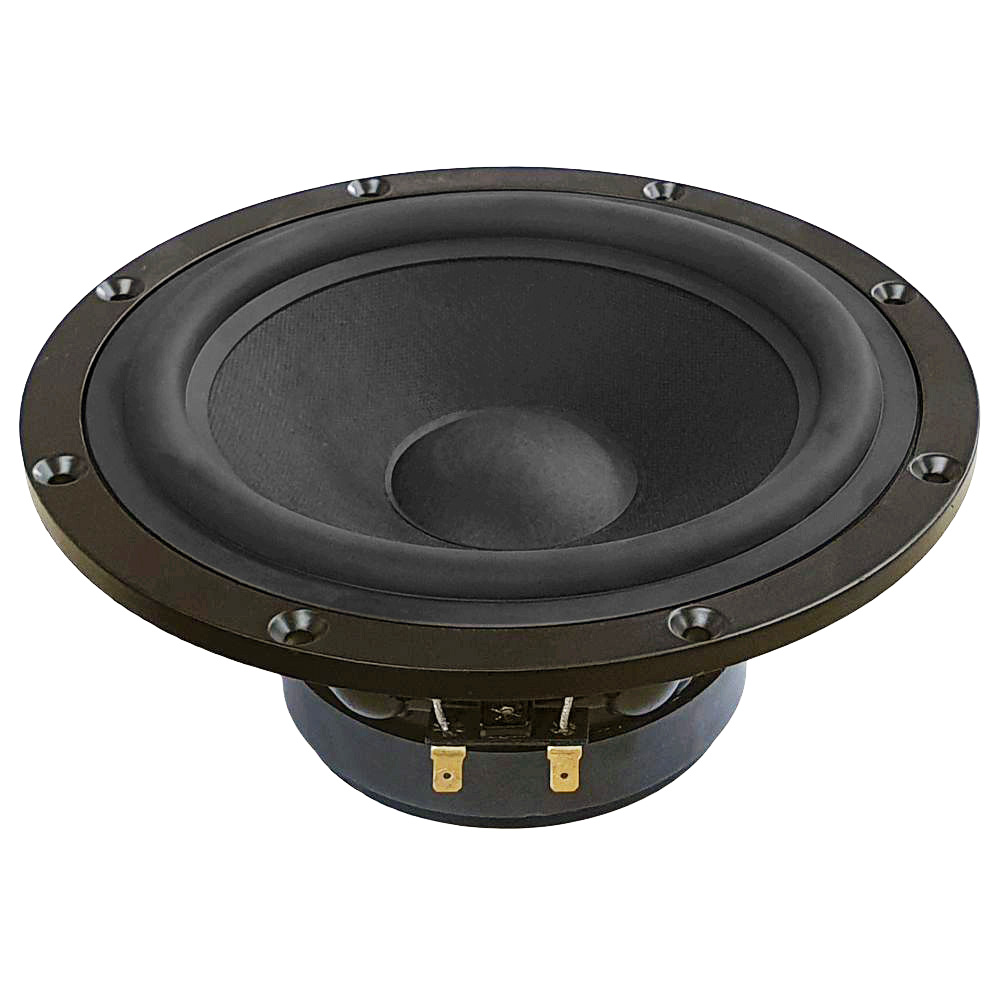

Ciare HWB205
8Ω
Woofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 28 Hz |
| Q factor | 0.29 |
| Sensitivity | 90.1 dB |
| Linear excursion | ± 7 mm |
| Program Power | 400 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 6.83
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.29
Large signal parameters
- Maximum linear excursion (one way) xmax 7mm
- Maximum excursion before damage xlim 30mm
- Air volume displaced at xmax VD 156cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.2Ω
- Inductance (1kHz) LE 0.41mH
- VC Diameter 50mm
- Winding height HVC 16mm
- Former material Kapton
Magnet
- Force factor Bl 9.26N/A
- Motor constant Bl/√RE 3.72N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 169mm
- Effective area SD 223cm²
- Moving mass MMS 23.6g
- Moving mass (without air load) MMD 21g
- Material Doped cellulose fiber
Suspensions
- Stiffness KMS 0.73N/mm
- Compliance CMS 1370µm/N
- Equivalent volume to the compliance VAS 79L
- Mechanical resistance RMS 0.61N·s/m
- Surround material Rubber
- Spider material Doped fabric

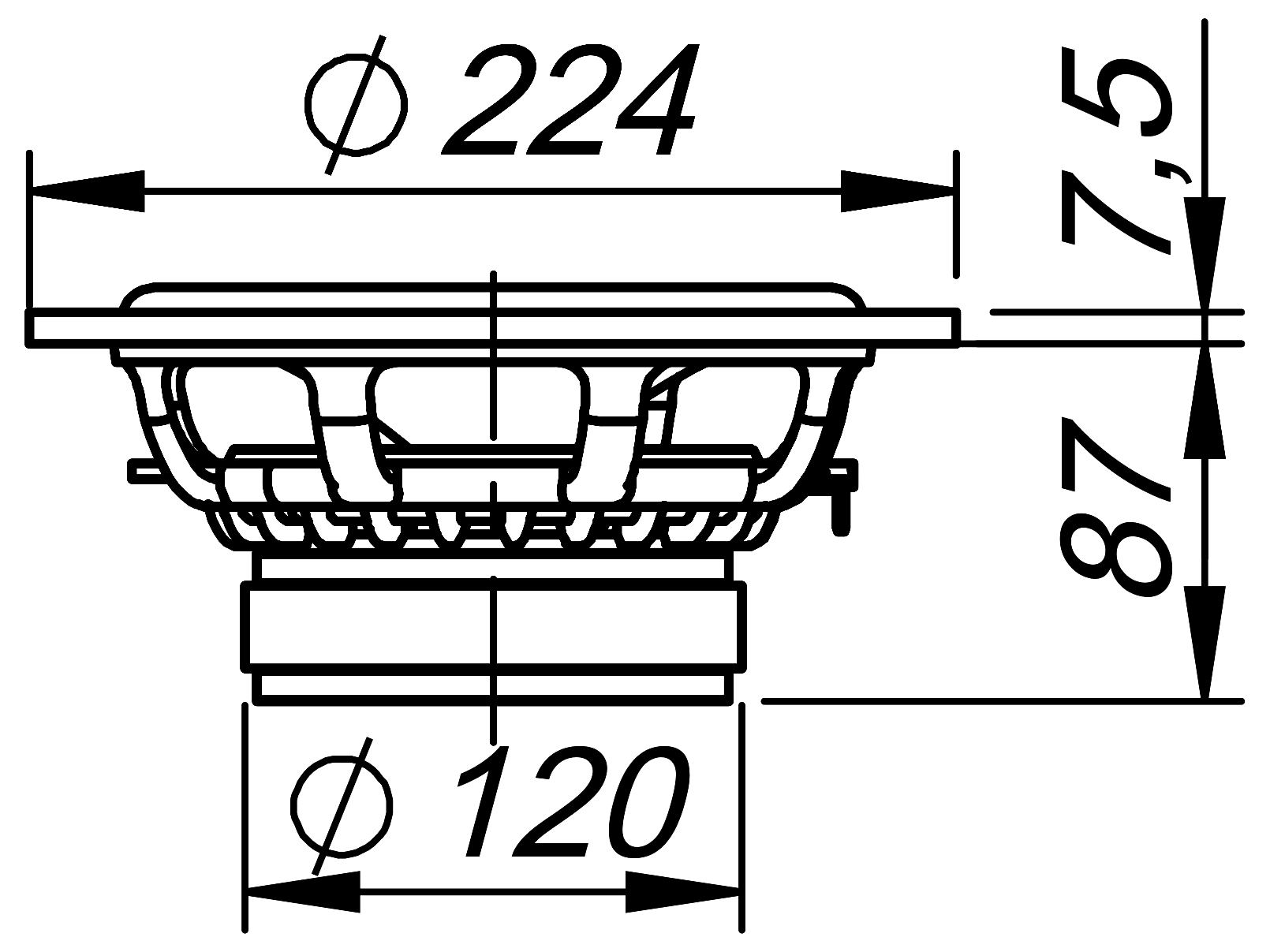

Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 224mm
- Baffle cutout diameter 184mm
- Overall depth 95mm
- Flange thickness 8mm
- Mounting depth 87mm
- Volume occupied by the driver (estimated) 1L
- Net weight 2.75kg
- Frame material Aluminium
.png)
.png)
.png)
