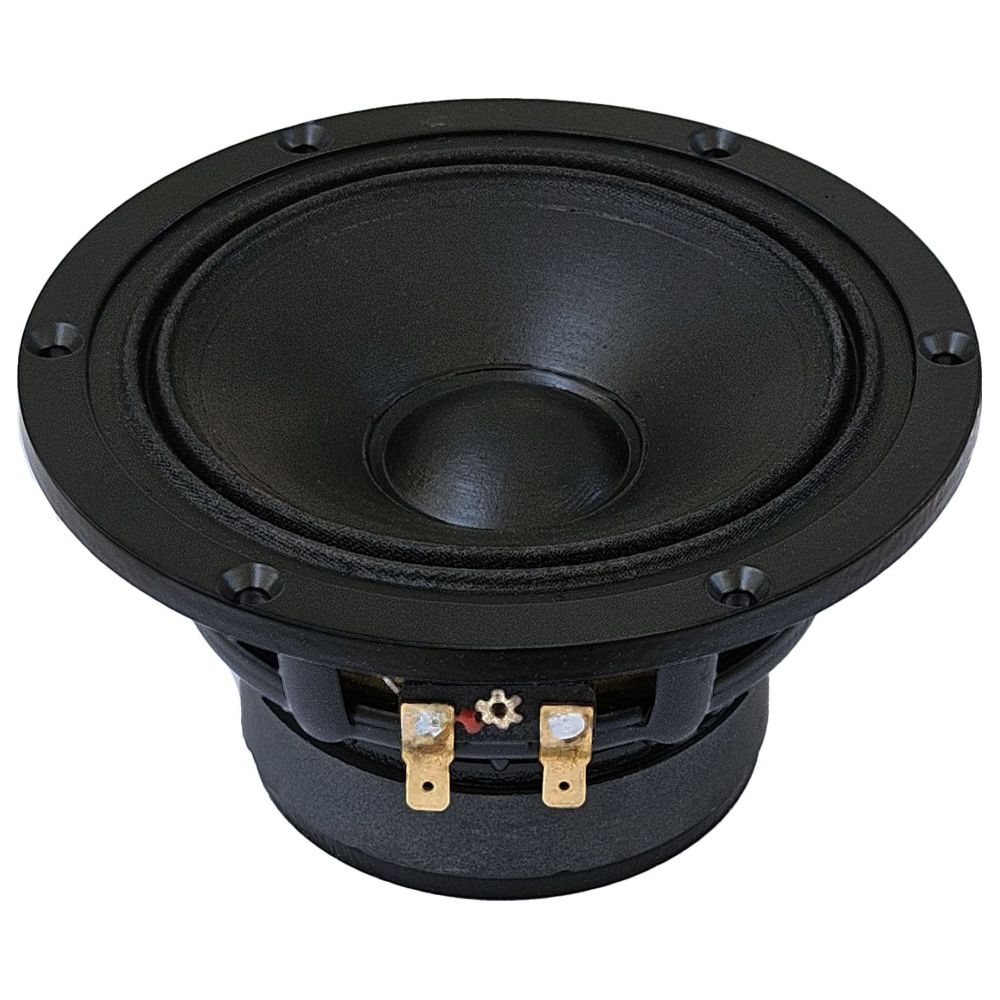

Ciare HMB135
8Ω
Mid-range
| Nominal diameter | 5″ / 130 mm |
| Resonance | 130 Hz |
| Q factor | 0.79 |
| Sensitivity | 88.8 dB |
| Linear excursion | ± 3 mm |
| Program Power | 150 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.8dB
- Frequency response 130 - 9000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 130Hz
- Mechanical quality factor QMS 2.05
- Electrical quality factor QES 1.28
- Total quality factor QTS 0.79
Large signal parameters
- Maximum linear excursion (one way) xmax 3mm
- Air volume displaced at xmax VD 26cm³
- Power handling P 75W
- Program power Pmax 150W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω
- Inductance (1kHz) LE 0.49mH
- VC Diameter 25mm
- Winding height HVC 8.5mm
- Winding material Copper Clad Aluminium
- Former material Aluminium
Magnet
- Force factor Bl 4.51N/A
- Motor constant Bl/√RE 1.87N/√W
- Air gap height HAG 5mm
- Material Ceramic
Diaphragm
- Effective diameter 105mm
- Effective area SD 87cm²
- Moving mass MMS 5.5g
- Moving mass (without air load) MMD 4.9g
- Material Doped cellulose fiber
Suspensions
- Stiffness KMS 3.66N/mm
- Compliance CMS 273µm/N
- Equivalent volume to the compliance VAS 2.9L
- Mechanical resistance RMS 2.19N·s/m
- Surround material Double Roll
- Spider material Nomex Fabric
Dimensions
- Nominal diameter 5″
- 130mm
- Overall diameter 146mm
- Baffle cutout diameter 117mm
- Overall depth 69mm
- Flange thickness 6mm
- Mounting depth 63mm
- Volume occupied by the driver (estimated) 0.34L
- Net weight 1.1kg
- Frame material Aluminium

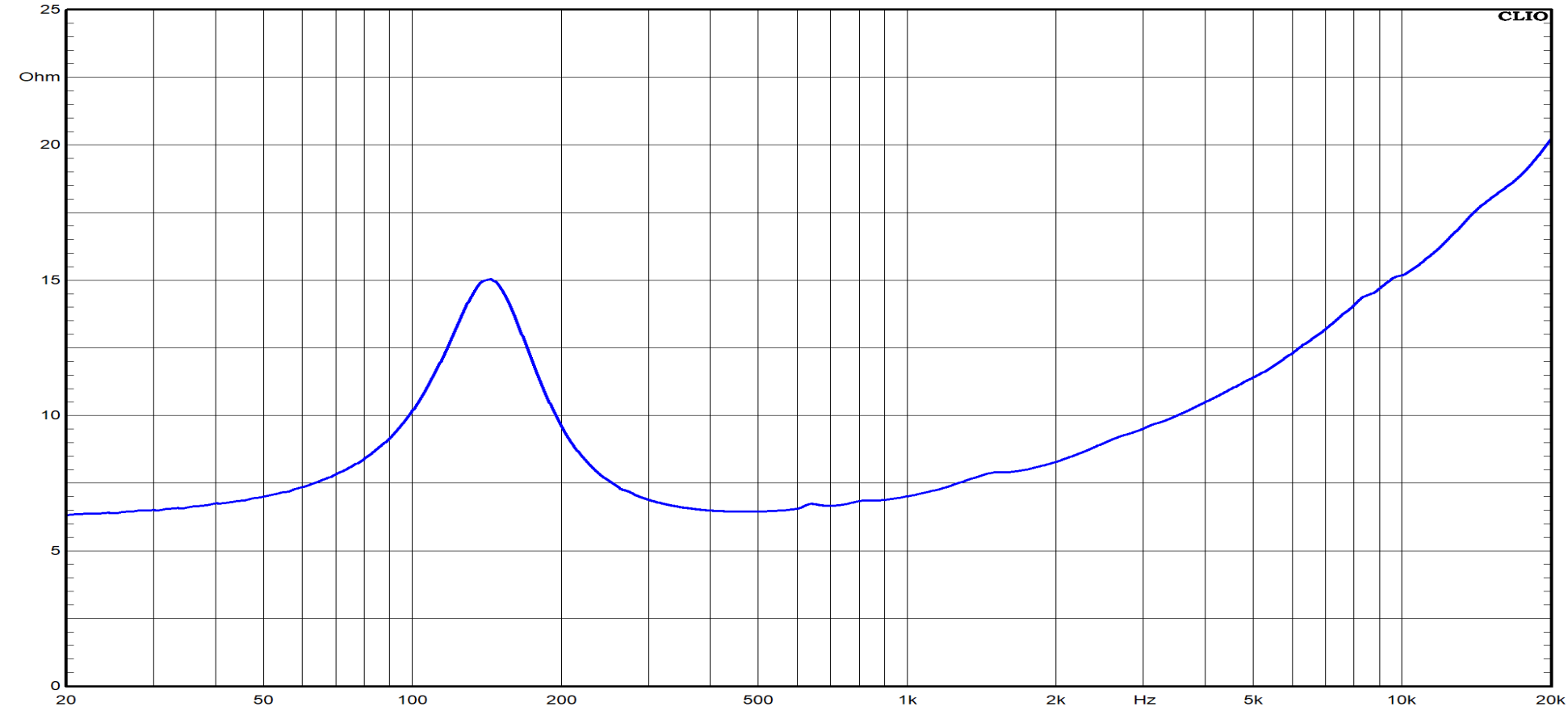

.png)
.png)
