Ciare PW328
8Ω
Woofer
| Nominal diameter | 12″ / 320 mm |
| Resonance | 48 Hz |
| Q factor | 0.32 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 3 mm |
| Program Power | 300 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 48Hz
- Mechanical quality factor QMS 3.08
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion (one way) xmax 3mm
- Air volume displaced at xmax VD 159cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.82mH
- VC Diameter 50mm
- Former material Aluminium
Magnet
- Force factor Bl 15N/A
- Motor constant Bl/√RE 6.39N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 528cm²
- Moving mass MMS 48.5g
- Moving mass (without air load) MMD 39.8g
Suspensions
- Stiffness KMS 4.35N/mm
- Compliance CMS 230µm/N
- Equivalent volume to the compliance VAS 91L
- Mechanical resistance RMS 4.75N·s/m
- Surround material Nomex

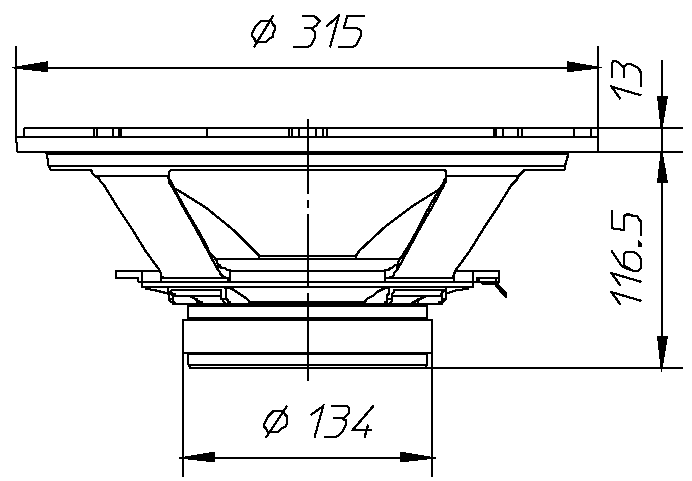

Dimensions
- Nominal diameter 12″
- 320mm
- Overall diameter 315mm
- Baffle cutout diameter 282mm
- Overall depth 117mm
- Flange thickness 13mm
- Mounting depth 104mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Aluminium

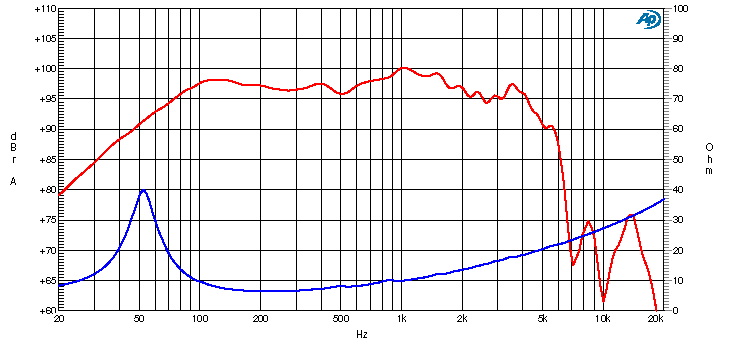

.png)
.png)
