DS18 GEN-XX12.4DHE
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 316 mm |
| Resonance | 30.5 Hz |
| Q factor | 0.47 |
| Sensitivity | 86.8 dB |
| Program Power | 1200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.8dB
- Frequency response 20 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.5Hz
- Mechanical quality factor QMS 3.99
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.47
Large signal parameters
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.6Ω
- Inductance (1kHz, in series) LE 6.74mH
- VC Diameter 50.8mm
- Winding material SV
- Former material Black Aluminum
Magnet
- Force factor (in series) Bl 19.2N/A
- Motor constant Bl/√RE 7.46N/√W
- Diameter 156mm
- Weight 3.856kg
- Material Ferrite
Diaphragm
- Effective diameter 246mm
- Effective area SD 475cm²
- Moving mass MMS 154g
- Moving mass (without air load) MMD 147g
- Material Paper
Suspensions
- Stiffness KMS 5.71N/mm
- Compliance CMS 175µm/N
- Equivalent volume to the compliance VAS 56.4L
- Mechanical resistance RMS 7.41N·s/m
- Surround material Foam

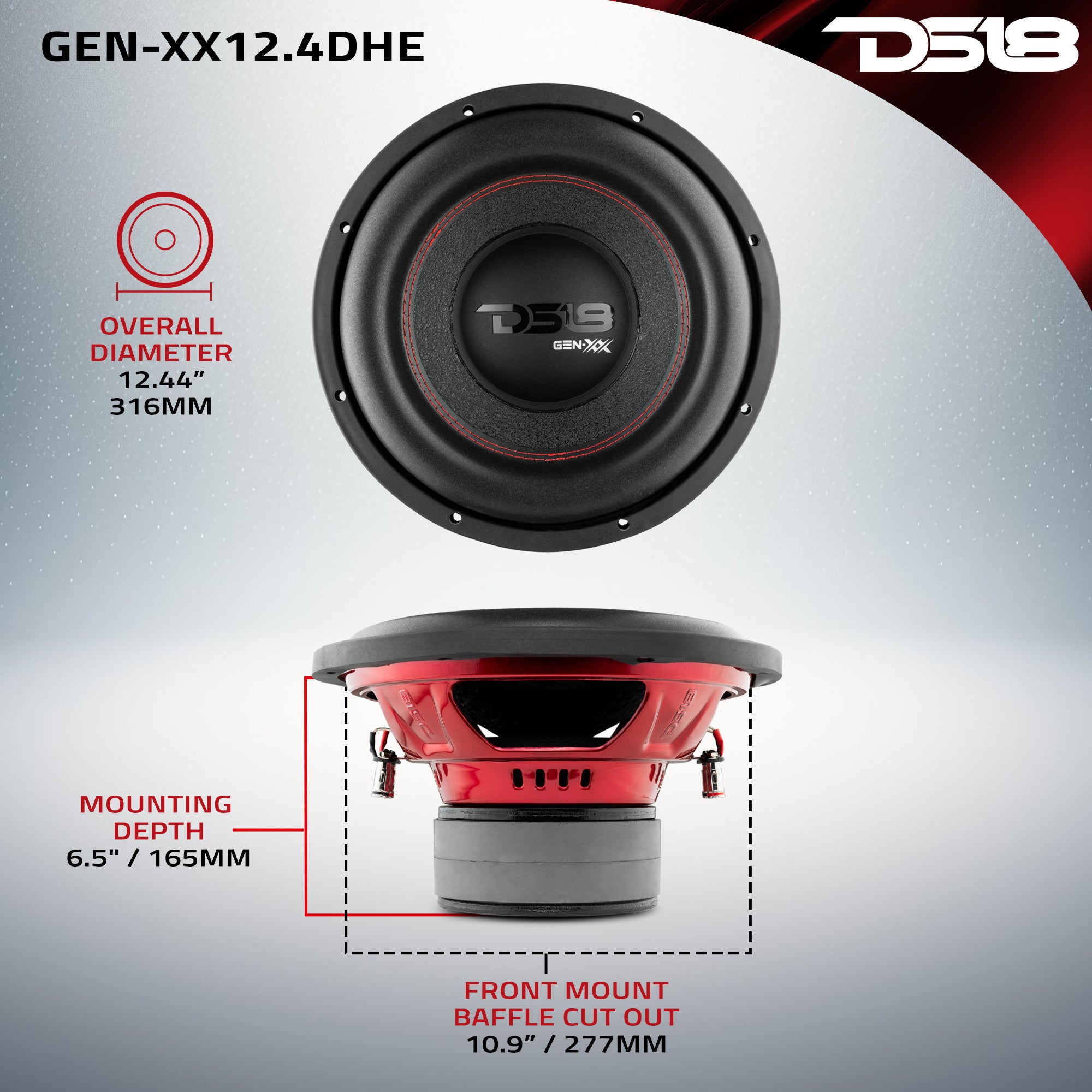

Dimensions
- Nominal diameter 12″
- 316mm
- Overall diameter 316mm
- Baffle cutout diameter 277mm
- Overall depth 193mm
- Flange thickness 28mm
- Mounting depth 165mm
- Volume occupied by the driver 1.69L
- Frame material Steel
