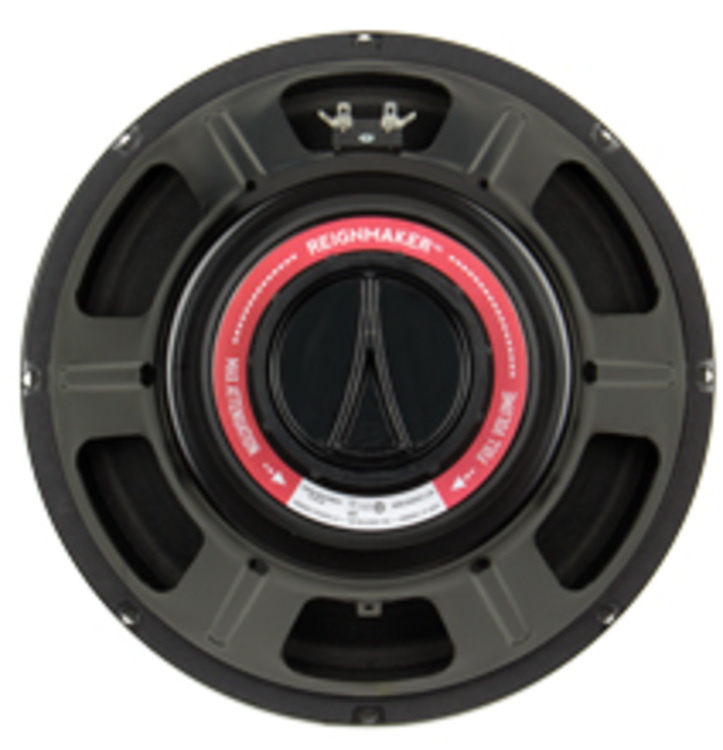

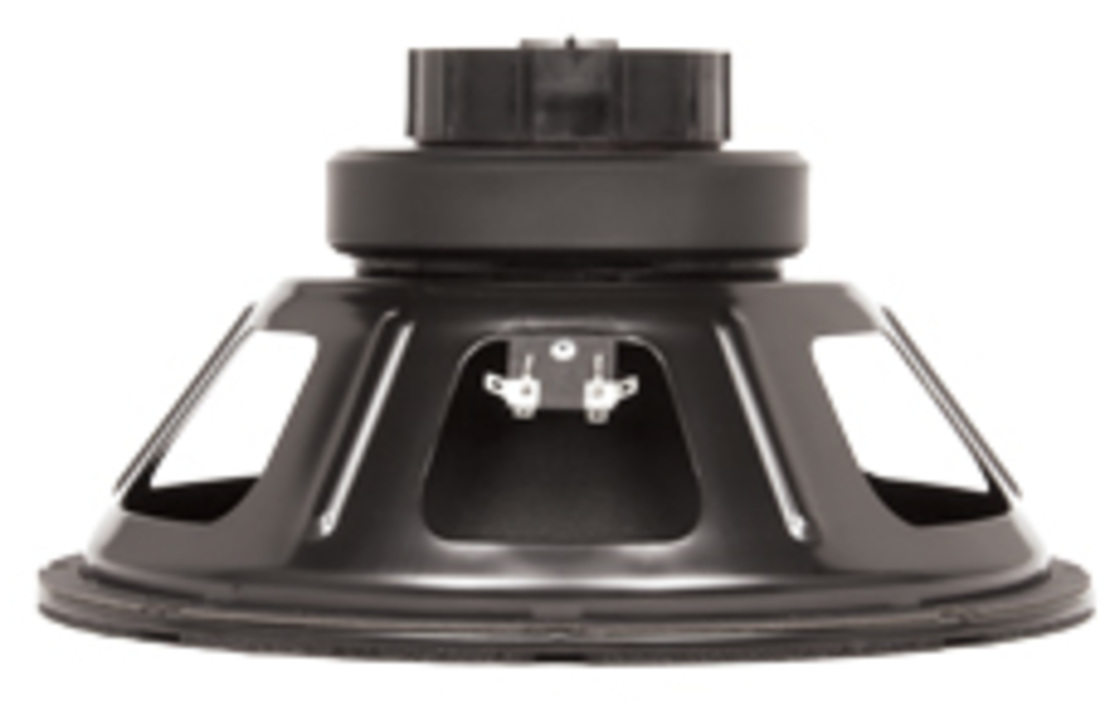

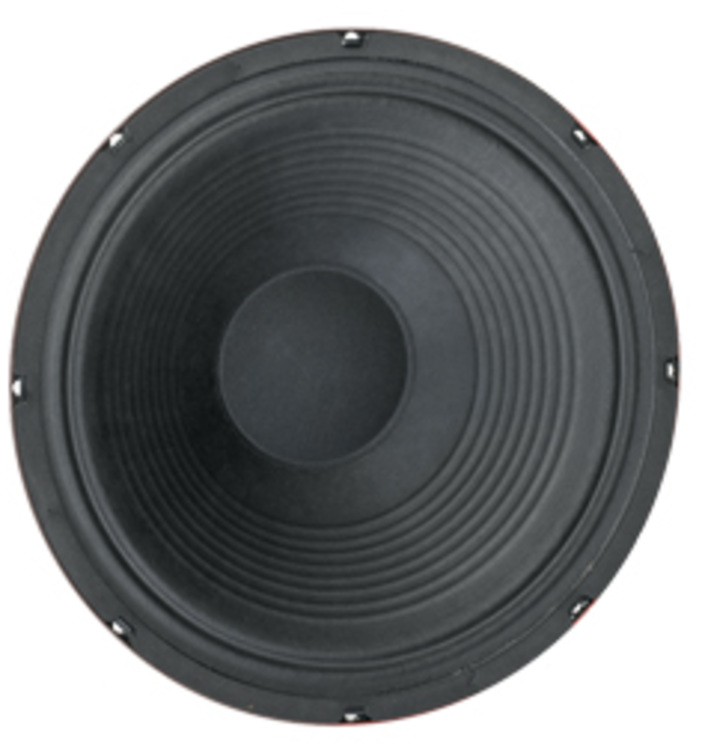

Eminence REIGNMAKER 16

16Ω

Guitar Speaker

12″ / 305 mm
Nominal diameter
104 Hz
Resonance
1.74
Q factor
98 dB
Sensitivity
± 0.47 mm
Linear excursion
150 W
Program Power
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
Sensitivity (1W, 1m, infinite baffle)
SPL1W
98.1
dB
Frequency response
80 - 6200
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
104
Hz
Mechanical quality factor
QMS
19.22
Electrical quality factor
QES
1.92
Total quality factor
QTS
1.74

Large signal parameters

Maximum linear excursion
xmax
0.47
mm
Air volume displaced at xmax
VD
24
cm³
Power handling
P
75
W
Program power
Pmax
150
W

Voice Coil

Nominal impedance
Z
16
Ω
DC resistance
RE
12.1
Ω
Inductance (1kHz)
LE
0.93
mH
VC Diameter
44
mm
Winding material
Copper
Former material
Polyimide

Magnet

Force factor
Bl
10.58
N/A
Motor constant
Bl/√RE
3.04
N/√W
Air gap height
HAG
7.9
mm
Weight
1.08
kg
Material
Ferrite

Diaphragm

Effective diameter
257
mm
Effective area
SD
520
cm²
Moving mass
MMS
27
g
Moving mass (without air load)
MMD
18.7
g
Material
Paper

Suspensions

Stiffness
KMS
11.11
N/mm
Compliance
CMS
90
µm/N
Equivalent volume to the compliance
VAS
33.7
L
Mechanical resistance
RMS
0.92
N·s/m
Surround material
Paper

Dimensions

Nominal diameter
12
305
mm
Overall diameter
306
mm
Baffle cutout diameter
306
mm
Overall depth
167
mm
Volume occupied by the driver
2.2
L
Net weight
3.54
kg
Frame material
Pressed Steel
