41 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSEASSICASUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
HELIX IK W8 Subwoofer

HELIX IK W8

2 x 2 Ω
8″ Subwoofer
fS37 Hz
SD219 cm²
QTS0.41
xmax8 mm
SPL1W84.8 dB
Bl/√RE5.89
Pmax600 W
HELIX IK W12 Subwoofer

HELIX IK W12

2 x 2 Ω
12″ Subwoofer
fS32 Hz
SD515 cm²
QTS0.41
xmax8 mm
SPL1W88.6 dB
Bl/√RE7.66
Pmax600 W
HELIX IK W10 Subwoofer

HELIX IK W10

2 x 2 Ω
10″ Subwoofer
fS36 Hz
SD333 cm²
QTS0.39
xmax8 mm
SPL1W87.3 dB
Bl/√RE6.88
Pmax600 W
HELIX S 6B Mid Bass

HELIX S 6B

4 Ω
6.5″ Mid Bass
fS67 Hz
SD141 cm²
45 - 4000 Hz
QTS0.77
xmax3 mm
SPL1W87.2 dB
Bl/√RE2.6
Pmax200 W
HELIX S 4B Mid Bass

HELIX S 4B

4 Ω
4″ Mid Bass
fS120 Hz
SD61 cm²
75 - 6000 Hz
QTS0.88
xmax3 mm
SPL1W86.9 dB
Bl/√RE2.22
Pmax140 W
HELIX S 3M Mid-range

HELIX S 3M

4 Ω
3″ Mid-range
fS130 Hz
SD32 cm²
400 - 6000 Hz
QTS0.43
xmax2 mm
SPL1W86 dB
Bl/√RE2.57
Pmax150 W
HELIX K 8W Subwoofer

HELIX K 8W

2 x 2 Ω
8″ Subwoofer
fS37 Hz
SD219 cm²
QTS0.41
xmax8 mm
SPL1W84.8 dB
Bl/√RE5.89
Pmax600 W
Discontinued
HELIX K 10S Shallow subwoofer

HELIX K 10S

2 x 2 Ω
10″ Shallow subwoofer
fS34 Hz
SD353 cm²
QTS0.45
xmax6 mm
SPL1W86.2 dB
Bl/√RE6.99
Pmax600 W
HELIX IK W6 Subwoofer

HELIX IK W6

2 x 2 Ω
6.5″ Subwoofer
fS50 Hz
SD123 cm²
QTS0.30
xmax6 mm
SPL1W85.3 dB
Bl/√RE6
Pmax300 W
HELIX IK S8 Shallow subwoofer

HELIX IK S8

2 x 2 Ω
8″ Shallow subwoofer
fS43 Hz
SD222 cm²
QTS0.51
xmax6 mm
SPL1W84.1 dB
Bl/√RE6.27
Pmax600 W
HELIX IK S12 Shallow subwoofer

HELIX IK S12

2 x 2 Ω
12″ Shallow subwoofer
fS36 Hz
SD523 cm²
QTS0.48
xmax8 mm
SPL1W86.8 dB
Bl/√RE9.77
Pmax600 W
HELIX IK S10-SVC2 Shallow subwoofer

HELIX IK S10-SVC2

2 Ω
10″ Shallow subwoofer
fS37 Hz
SD353 cm²
QTS0.51
xmax6 mm
SPL1W86 dB
Bl/√RE7.14
Pmax600 W
HELIX Ci7 W200FM-S3 Woofer

HELIX Ci7 W200FM-S3

3 Ω
8″ Woofer
fS52 Hz
SD201 cm²
35 - 2500 Hz
QTS0.69
xmax3.9 mm
SPL1W87.4 dB
Bl/√RE3.23
Pmax225 W
HELIX Ci7 W165FM-S3 Mid Bass

HELIX Ci7 W165FM-S3

3 Ω
6.5″ Mid Bass
fS60 Hz
SD131 cm²
50 - 3500 Hz
QTS0.55
xmax3.7 mm
SPL1W87.1 dB
Bl/√RE2.82
Pmax225 W
HELIX Ci7 W130-S3 Mid Bass

HELIX Ci7 W130-S3

3 Ω
5″ Mid Bass
fS73 Hz
SD85 cm²
70 - 4000 Hz
QTS0.41
xmax3.4 mm
SPL1W87.1 dB
Bl/√RE3.23
Pmax180 W
HELIX Ci7 M100FM-S3 Mid-range

HELIX Ci7 M100FM-S3

3 Ω
4″ Mid-range
fS85 Hz
SD55 cm²
110 - 7000 Hz
QTS0.47
xmax1.3 mm
SPL1W86.6 dB
Bl/√RE2.48
Pmax150 W
HELIX Ci3 W200FM-S3 Woofer

HELIX Ci3 W200FM-S3

3 Ω
8″ Woofer
fS67 Hz
SD214 cm²
50 - 3000 Hz
QTS0.76
xmax3.8 mm
SPL1W89.6 dB
Bl/√RE2.94
Pmax150 W
HELIX Ci3 W200FM-S2 Woofer

HELIX Ci3 W200FM-S2

2 Ω
8″ Woofer
fS72 Hz
SD214 cm²
50 - 3000 Hz
QTS0.88
xmax4 mm
SPL1W89.4 dB
Bl/√RE2.98
Pmax150 W
HELIX Ci3 W165FM-S3 Mid Bass

HELIX Ci3 W165FM-S3

3 Ω
6.5″ Mid Bass
fS70 Hz
SD133 cm²
60 - 3500 Hz
QTS0.84
xmax3.2 mm
SPL1W87.9 dB
Bl/√RE2.31
Pmax150 W
HELIX Ci3 W165FM-S2 Mid Bass

HELIX Ci3 W165FM-S2

2 Ω
6.5″ Mid Bass
fS74 Hz
SD133 cm²
60 - 3500 Hz
QTS0.74
xmax3.7 mm
SPL1W88.1 dB
Bl/√RE2.61
Pmax150 W
HELIX Ci3 W130-S3 Mid Bass

HELIX Ci3 W130-S3

3 Ω
5″ Mid Bass
fS89 Hz
SD98 cm²
80 - 4000 Hz
QTS0.74
xmax3.2 mm
SPL1W87.1 dB
Bl/√RE2.27
Pmax135 W
HELIX Ci3 M100FM-S3 Mid-range

HELIX Ci3 M100FM-S3

3 Ω
4″ Mid-range
fS146 Hz
SD53 cm²
120 - 6000 Hz
QTS0.83
xmax2 mm
SPL1W87.4 dB
Bl/√RE1.96
Pmax120 W
HELIX Ci3 C165.2FM-S3 Mid Bass

HELIX Ci3 C165.2FM-S3

3 Ω
6.5″ Mid Bass
fS72 Hz
SD133 cm²
60 - 25000 Hz
QTS0.82
xmax3.2 mm
SPL1W88.2 dB
Bl/√RE2.16
Pmax150 W
HELIX Ci3 C130.2-S3 Mid Bass

HELIX Ci3 C130.2-S3

3 Ω
5″ Mid Bass
fS92 Hz
SD97 cm²
80 - 25000 Hz
QTS0.68
xmax3.2 mm
SPL1W88.1 dB
Bl/√RE2.19
Pmax135 W
HELIX Ci3 C100.2FM-S3 Mid-range

HELIX Ci3 C100.2FM-S3

3 Ω
4″ Mid-range
fS137 Hz
SD57 cm²
100 - 25000 Hz
QTS0.66
xmax2 mm
SPL1W90.2 dB
Bl/√RE1.85
Pmax120 W
HELIX CB C87.2-S3 2 way

HELIX CB C87.2-S3

3 Ω
3.5″ 2 way
fS92 Hz
SD36 cm²
110 - 22000 Hz
QTS0.62
xmax2.2 mm
SPL1W83.9 dB
Bl/√RE1.67
Pmax60 W
HELIX CB C690.2-S3 2 way

HELIX CB C690.2-S3

3 Ω
6 x 9″ 2 way
fS56 Hz
SD205 cm²
50 - 22000 Hz
QTS0.54
xmax2 mm
SPL1W89.7 dB
Bl/√RE3.24
Pmax150 W
HELIX CB C570.2-S3 2 way

HELIX CB C570.2-S3

3 Ω
5 x 7″ 2 way
fS67 Hz
SD149 cm²
60 - 22000 Hz
QTS0.81
xmax2.5 mm
SPL1W87.4 dB
Bl/√RE2.42
Pmax105 W
HELIX CB C460.2-S3 2 way

HELIX CB C460.2-S3

3 Ω
4 x 6″ 2 way
fS120 Hz
SD77 cm²
90 - 22000 Hz
QTS0.96
xmax2.5 mm
SPL1W86.9 dB
Bl/√RE2.39
Pmax75 W
HELIX CB C165.2-S3 2 way

HELIX CB C165.2-S3

3 Ω
6.5″ 2 way
fS65 Hz
SD139 cm²
60 - 22000 Hz
QTS0.78
xmax2.5 mm
SPL1W87.7 dB
Bl/√RE2.37
Pmax120 W
HELIX CB C130.2-S3 2 way

HELIX CB C130.2-S3

3 Ω
5″ 2 way
fS92 Hz
SD97 cm²
80 - 22000 Hz
QTS0.92
xmax2.5 mm
SPL1W86.9 dB
Bl/√RE2.19
Pmax105 W
HELIX CB C100.2-S3 2 way

HELIX CB C100.2-S3

3 Ω
4″ 2 way
fS113 Hz
SD45 cm²
100 - 22000 Hz
QTS0.87
xmax2.5 mm
SPL1W82.9 dB
Bl/√RE2.25
Pmax90 W
Discontinued

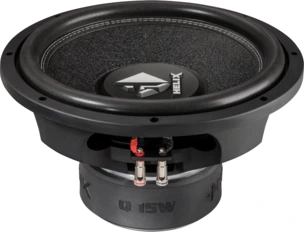

HELIX Q 15W Subwoofer

HELIX Q 15W

2 x 2 Ω
15″ Subwoofer
fS33 Hz
SD819 cm²
QTS0.41
xmax14 mm
SPL1W88.4 dB
Bl/√RE12.6
Pmax2000 W
Discontinued
HELIX Q 12W Subwoofer

HELIX Q 12W

2 x 2 Ω
12″ Subwoofer
fS35 Hz
SD539 cm²
QTS0.37
xmax14 mm
SPL1W86.3 dB
Bl/√RE13.6
Pmax2000 W
Discontinued
HELIX Q 10W Subwoofer

HELIX Q 10W

2 x 2 Ω
10″ Subwoofer
fS35 Hz
SD333 cm²
QTS0.38
xmax14 mm
SPL1W83.8 dB
Bl/√RE10.9
Pmax1500 W
HELIX P 6B Mid Bass

HELIX P 6B

4 Ω
6.5″ Mid Bass
fS56 Hz
SD129 cm²
40 - 4000 Hz
QTS0.49
xmax3 mm
SPL1W88 dB
Bl/√RE3.05
Pmax200 W
HELIX P 5B Mid Bass

HELIX P 5B

4 Ω
5″ Mid Bass
fS71 Hz
SD79 cm²
60 - 5500 Hz
QTS0.44
xmax3 mm
SPL1W87.1 dB
Bl/√RE2.99
Pmax160 W
HELIX P 3M Mid-range

HELIX P 3M

4 Ω
3″ Mid-range
fS130 Hz
SD30 cm²
400 - 5000 Hz
QTS0.45
xmax2 mm
SPL1W85.2 dB
Bl/√RE2.42
Pmax150 W
HELIX K 12W Subwoofer

HELIX K 12W

2 x 2 Ω
12″ Subwoofer
fS32 Hz
SD515 cm²
QTS0.41
xmax8 mm
SPL1W88.6 dB
Bl/√RE7.66
Pmax600 W
HELIX K 10W Subwoofer

HELIX K 10W

2 x 2 Ω
10″ Subwoofer
fS36 Hz
SD333 cm²
QTS0.39
xmax8 mm
SPL1W87.3 dB
Bl/√RE6.88
Pmax600 W
