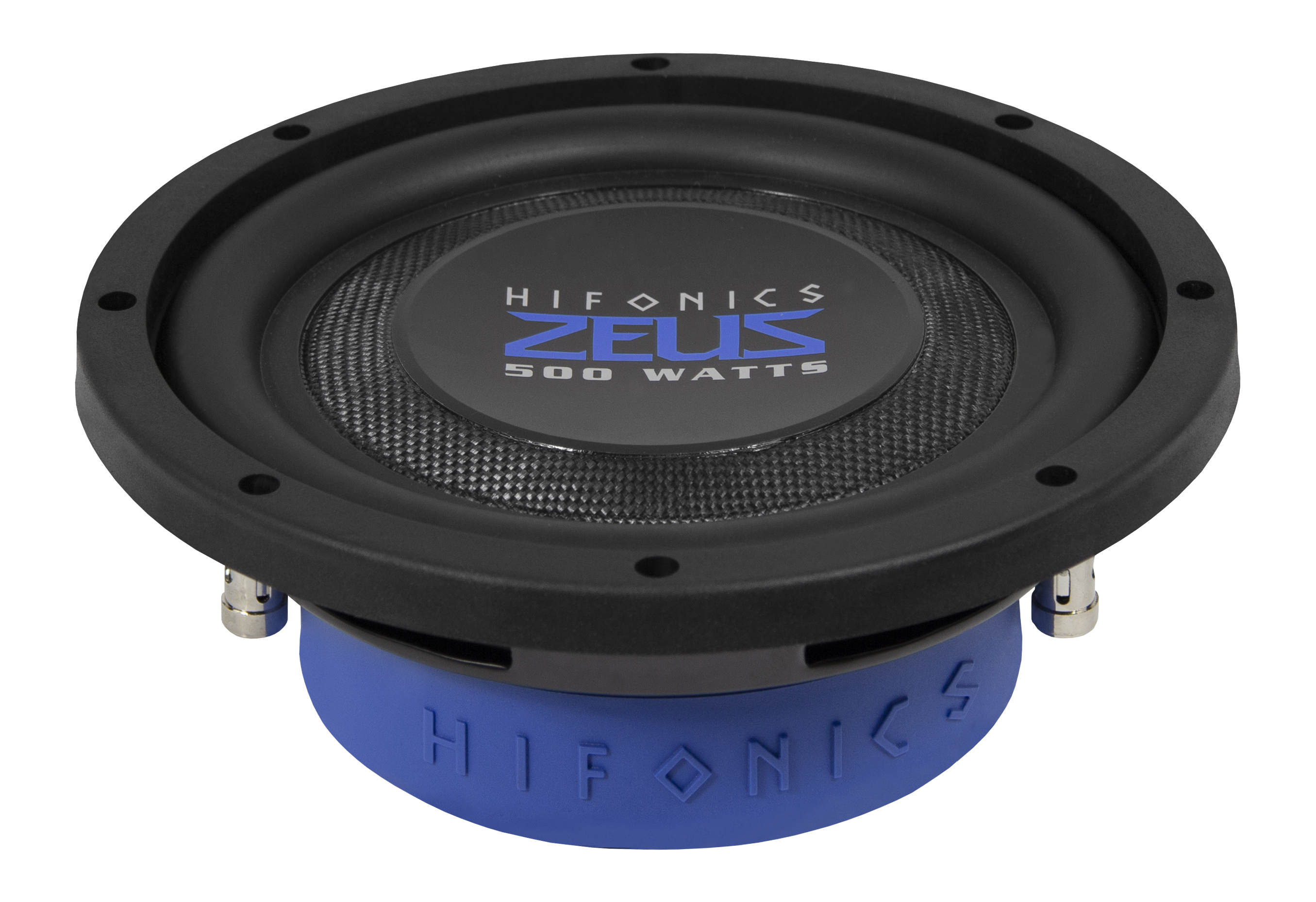

HiFonics ZEUS STREET ZST8D2
2x2Ω
2x4ΩShallow Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 37.4 Hz |
| Q factor | 0.56 |
| Sensitivity | 82.5 dB |
| Linear excursion | ± 10 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 37.4Hz
- Mechanical quality factor QMS 7.04
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 214cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 4.36mH
- VC Diameter 50mm
- Winding height HVC 28mm
- Former material TIL (Glass-Fibre)
Magnet
- Force factor (in series) Bl 13.2N/A
- Motor constant Bl/√RE 6.6N/√W
- Diameter 134mm
- Height 20mm
- Weight 1.134kg
- Material Y30 Ferrite
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass MMS 110g
- Moving mass (without air load) MMD 108g
- Material Glass-Fibre
Suspensions
- Stiffness KMS 6.14N/mm
- Compliance CMS 163µm/N
- Equivalent volume to the compliance VAS 10.6L
- Mechanical resistance RMS 3.67N·s/m
- Surround material Rubber
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 214mm
- Baffle cutout diameter 182mm
- Mounting depth 78mm
- Volume occupied by the driver (estimated) 0.98L
- Frame material Steel
