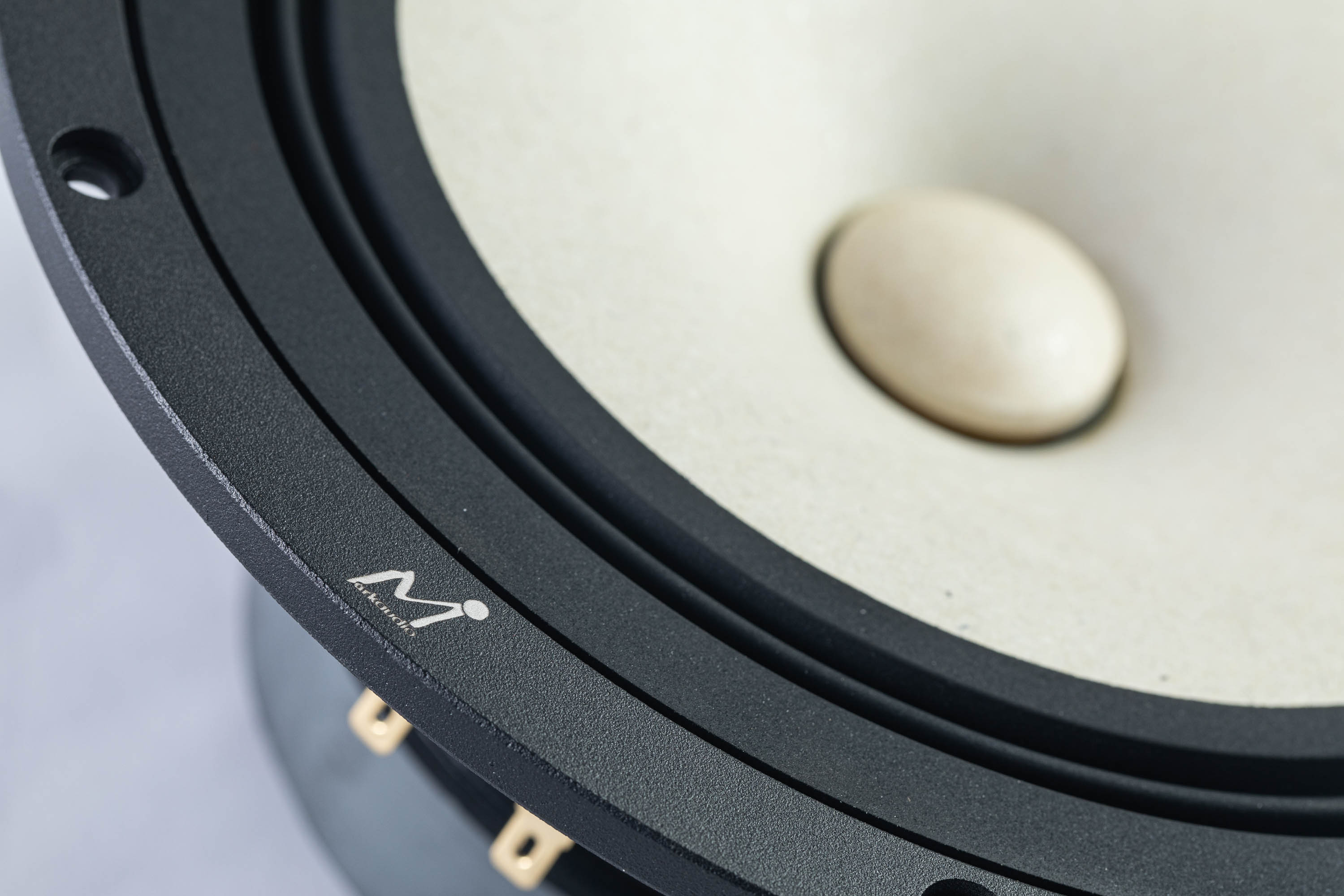

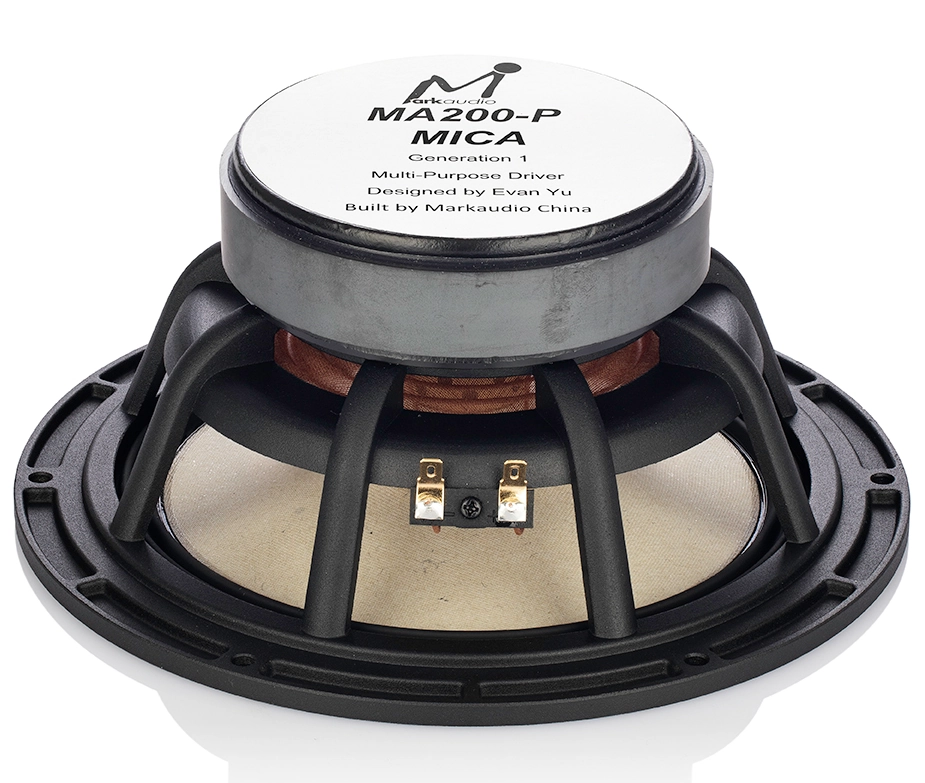

Markaudio MA200-P MICA
8Ω
Fullrange
| Nominal diameter | 8″ / 200 mm |
| Resonance | 39 Hz |
| Q factor | 0.37 |
| Sensitivity | 92.6 dB |
| Linear excursion | ± 7 mm |
| Program power | 100 W |
.webp)
.webp)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.6dB

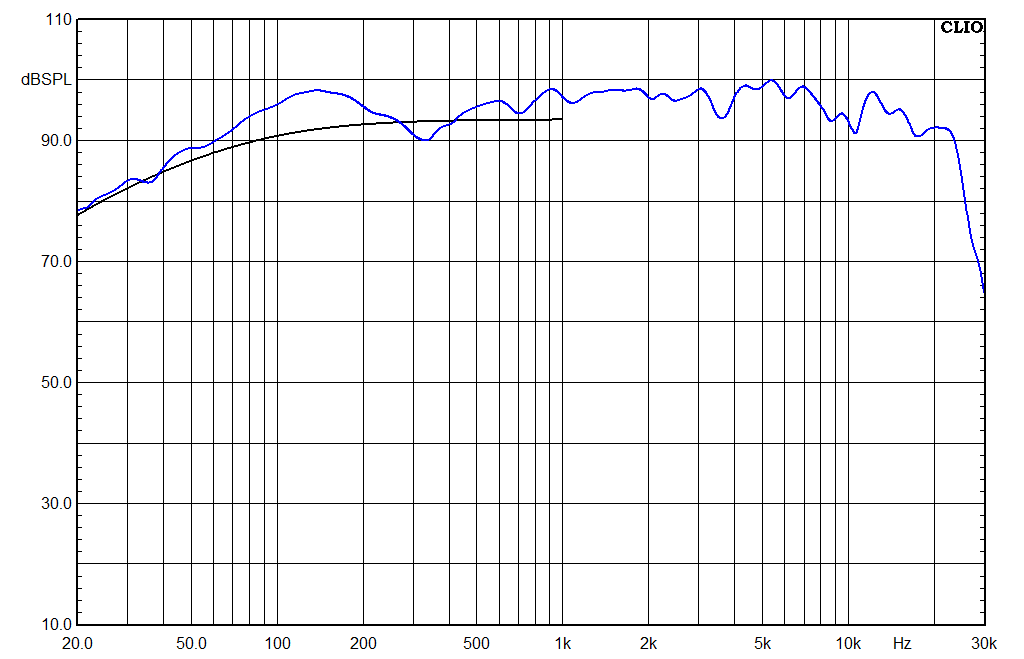

- Frequency response 40 - 22000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 2.29
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.37
Large signal parameters
- Maximum linear excursion (one way) xmax 7mm
- Air volume displaced at xmax VD 144cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil

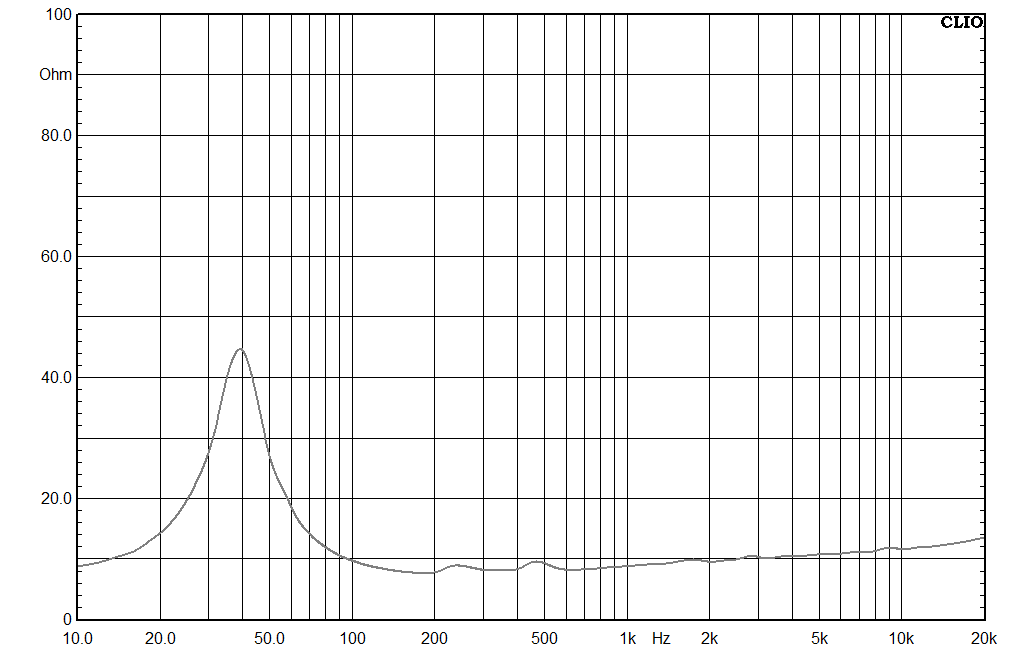

- Nominal impedance Z 8Ω
- DC resistance RE 6.4Ω
- Inductance (1kHz) LE 0.165mH
Magnet
- Force factor Bl 7.02N/A
- Motor constant Bl/√RE 2.78N/√W
- Diameter 120mm
Diaphragm
- Effective diameter 162mm
- Effective area SD 206cm²
- Moving mass (including air load) MMS 14.1g
- Moving mass MMD 11.8g
- Material Mica-reinforced paper
Suspensions
- Stiffness KMS 0.892N/mm
- Compliance CMS 1121µm/N
- Equivalent volume to the compliance VAS 66.5L
- Mechanical resistance RMS 1.55N·s/m

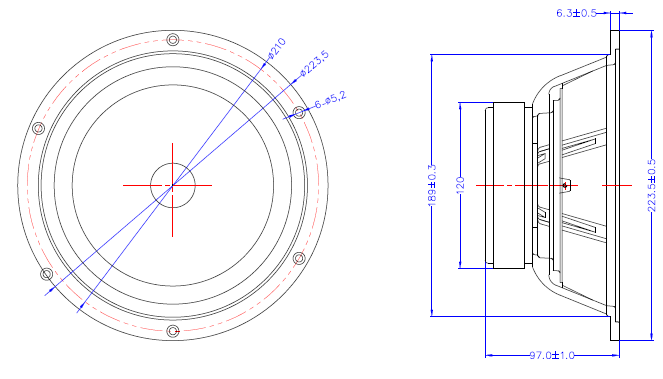

Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 224mm
- Baffle cutout diameter 189mm
- Overall depth 97mm
- Flange thickness 6mm
- Mounting depth 91mm
- Volume occupied by the driver (estimated) 0.92L
- Frame material Aluminum
.png)
.png)
.png)
