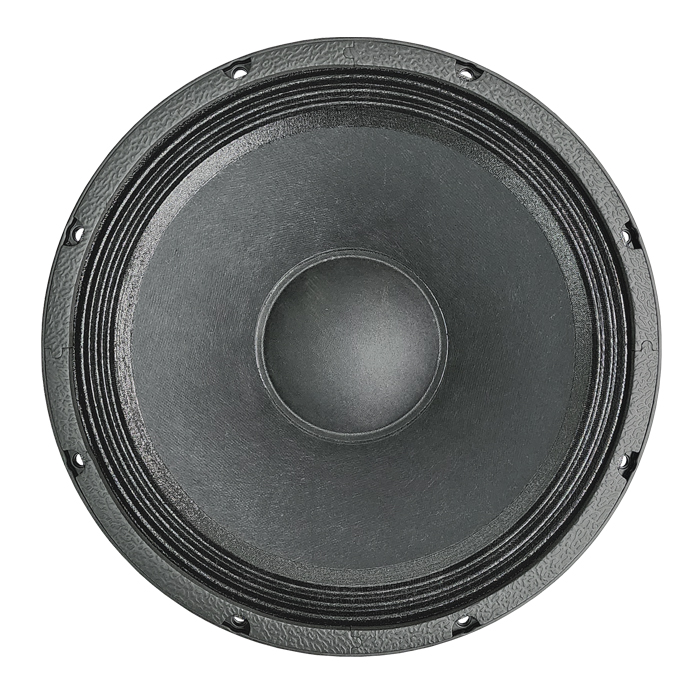

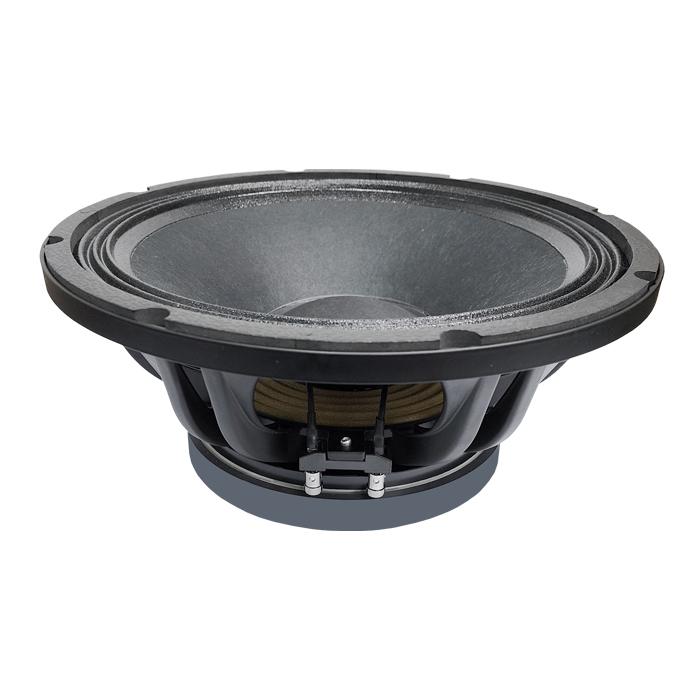

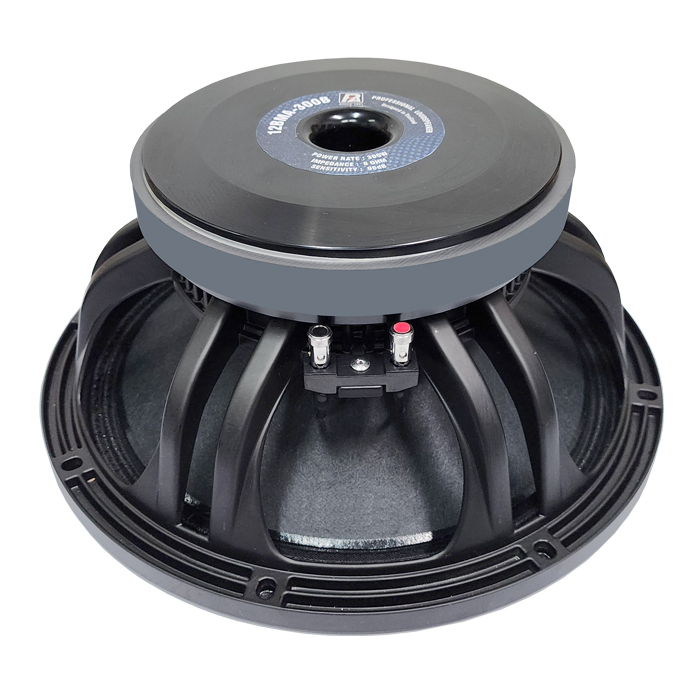

P.Audio 12BMA-300B
8Ω
Low frequency
| Nominal diameter | 12″ / 305 mm |
| Resonance | 61 Hz |
| Q factor | 0.49 |
| Sensitivity | 95.4 dB |
| Linear excursion | ± 4 mm |
| Program power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.4dB

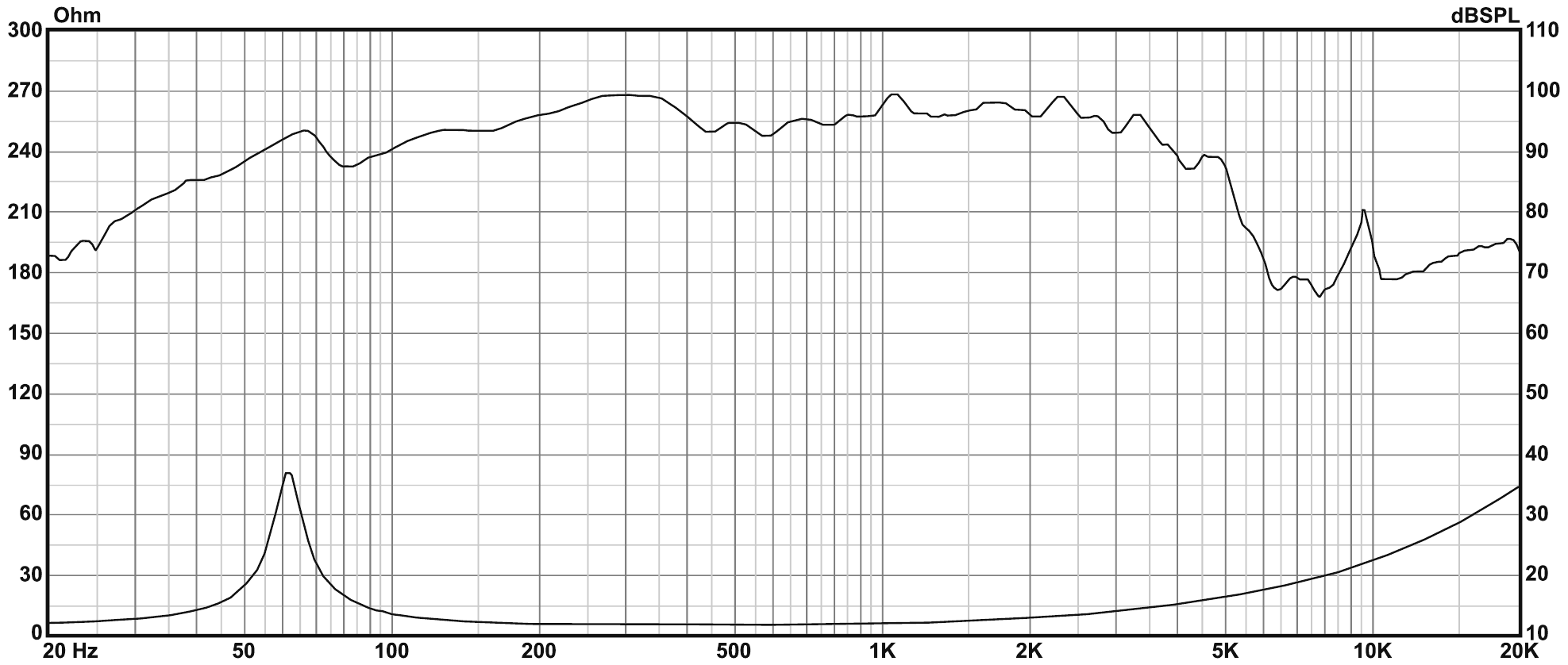

- Frequency response 60 - 3500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 61Hz
- Mechanical quality factor QMS 7.80
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Air volume displaced at xmax VD 212cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.59mH
- VC Diameter 75.5mm
- Winding height HVC 18mm
- Winding material Copper Clad Aluminium
- Former material Glass Fiber
Magnet
- Flux density B 1T
- Force factor Bl 13.7N/A
- Motor constant Bl/√RE 6.01N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 530cm²
- Moving mass (including air load) MMS 49.1g
- Moving mass MMD 40.4g
- Material Paper
Suspensions
- Stiffness KMS 7.35N/mm
- Compliance CMS 136µm/N
- Equivalent volume to the compliance VAS 54.4L
- Mechanical resistance RMS 2.41N·s/m
- Surround material Cloth
- Spider material Single

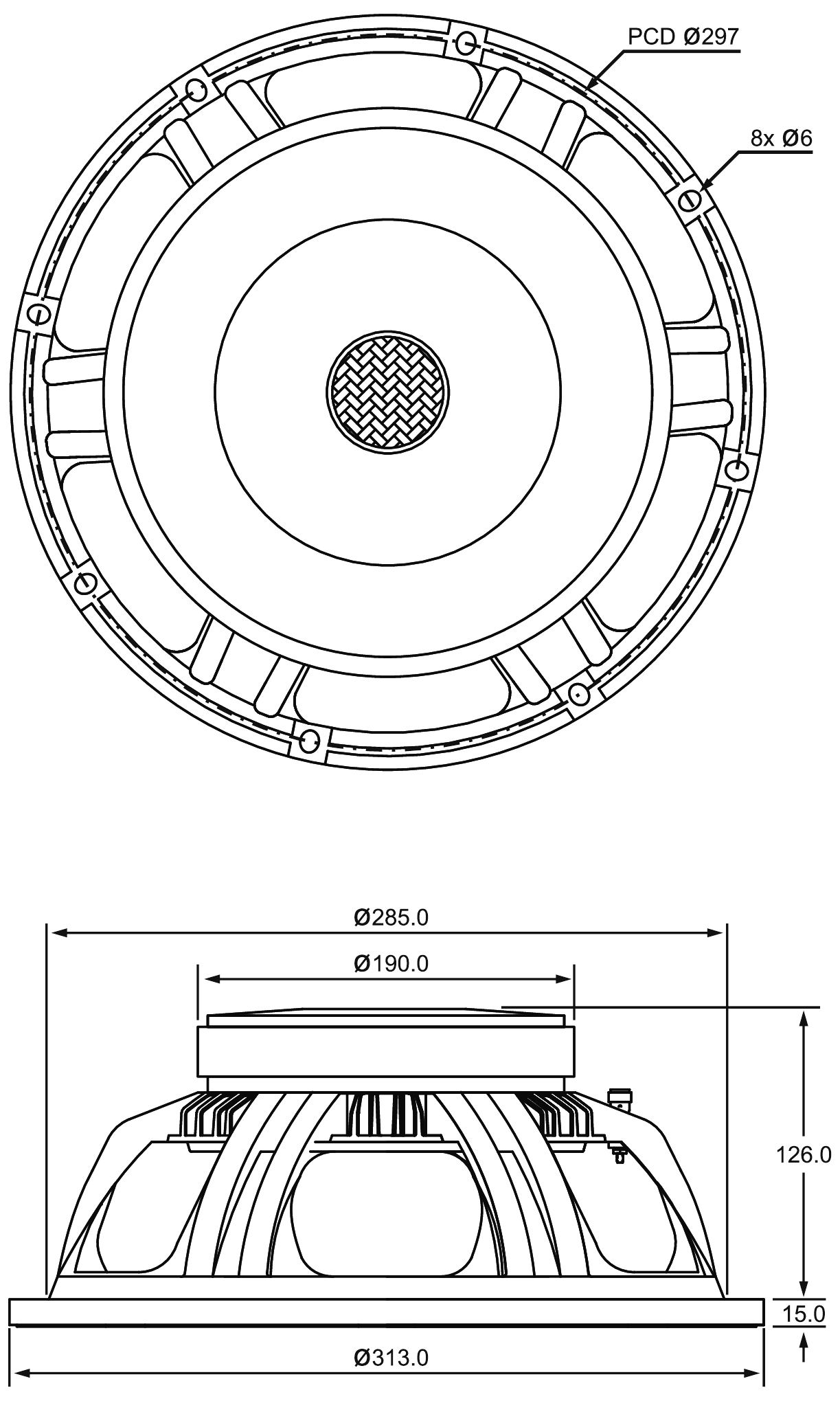

Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 313mm
- Baffle cutout diameter 285mm
- Overall depth 141mm
- Flange thickness 15mm
- Mounting depth 126mm
- Volume occupied by the driver (estimated) 2.9L
- Net weight 6.9kg
- Frame material Aluminium
