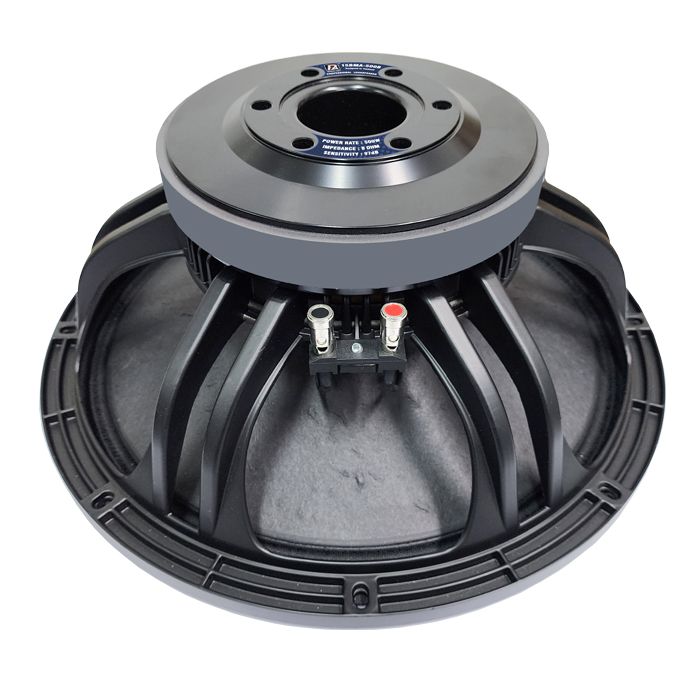

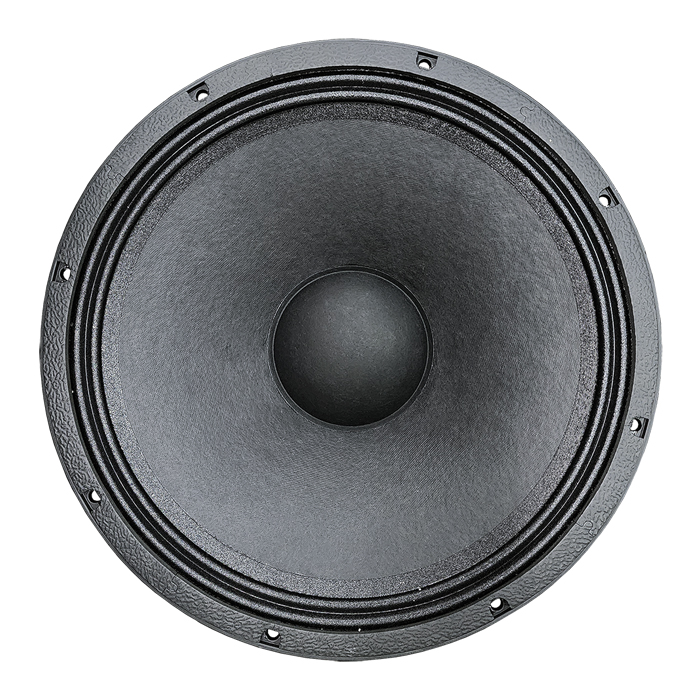

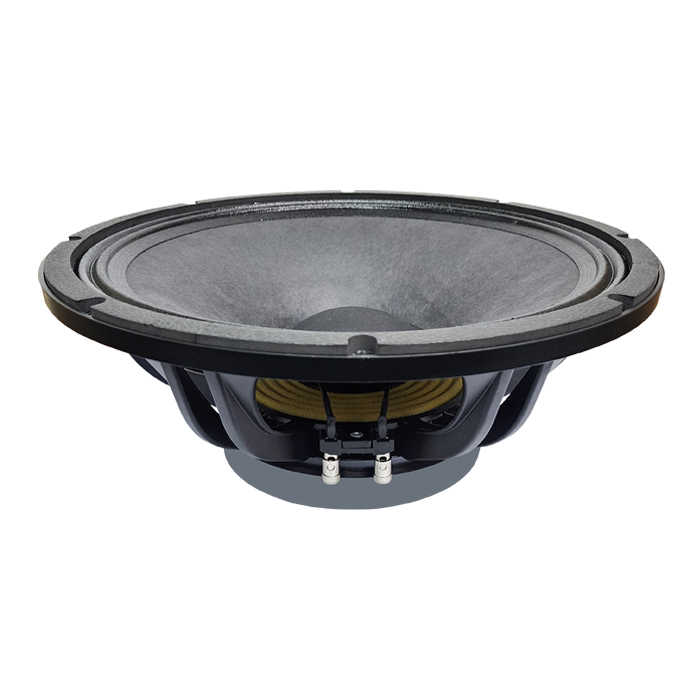

P.Audio 15BMA-500B
8Ω
Low frequency
| Nominal diameter | 15″ / 381 mm |
| Resonance | 51 Hz |
| Q factor | 0.49 |
| Sensitivity | 97.3 dB |
| Linear excursion | ± 5 mm |
| Program power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 97.3dB

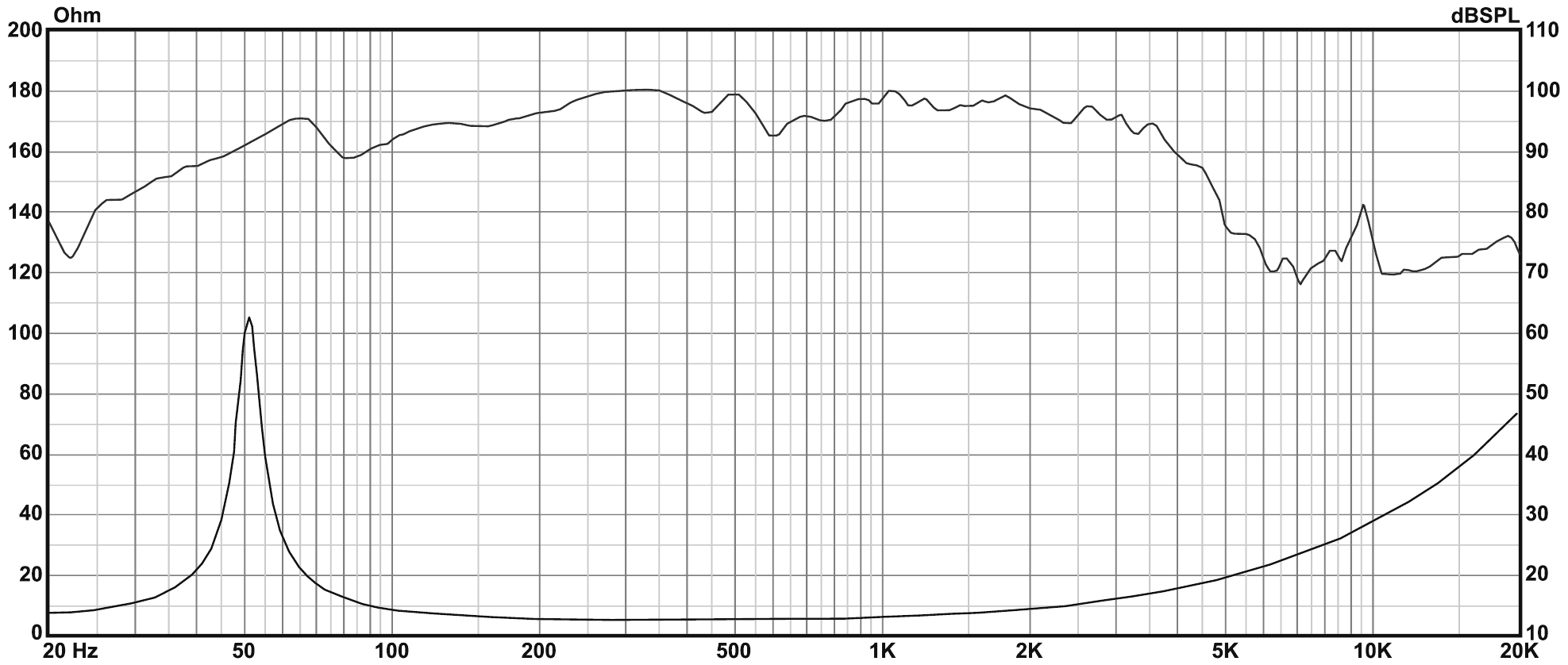

- Frequency response 45 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 51Hz
- Mechanical quality factor QMS 9.90
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.49
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Air volume displaced at xmax VD 446cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.59mH
- VC Diameter 82.5mm
- Winding height HVC 20mm
- Winding material Copper Clad Aluminium
- Former material Glass Fiber
Magnet
- Flux density B 1.1T
- Force factor Bl 17.2N/A
- Motor constant Bl/√RE 7.4N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 337mm
- Effective area SD 891cm²
- Moving mass (including air load) MMS 89.1g
- Moving mass MMD 70.6g
- Material Paper
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 121L
- Mechanical resistance RMS 2.88N·s/m
- Surround material Cloth
- Spider material Single

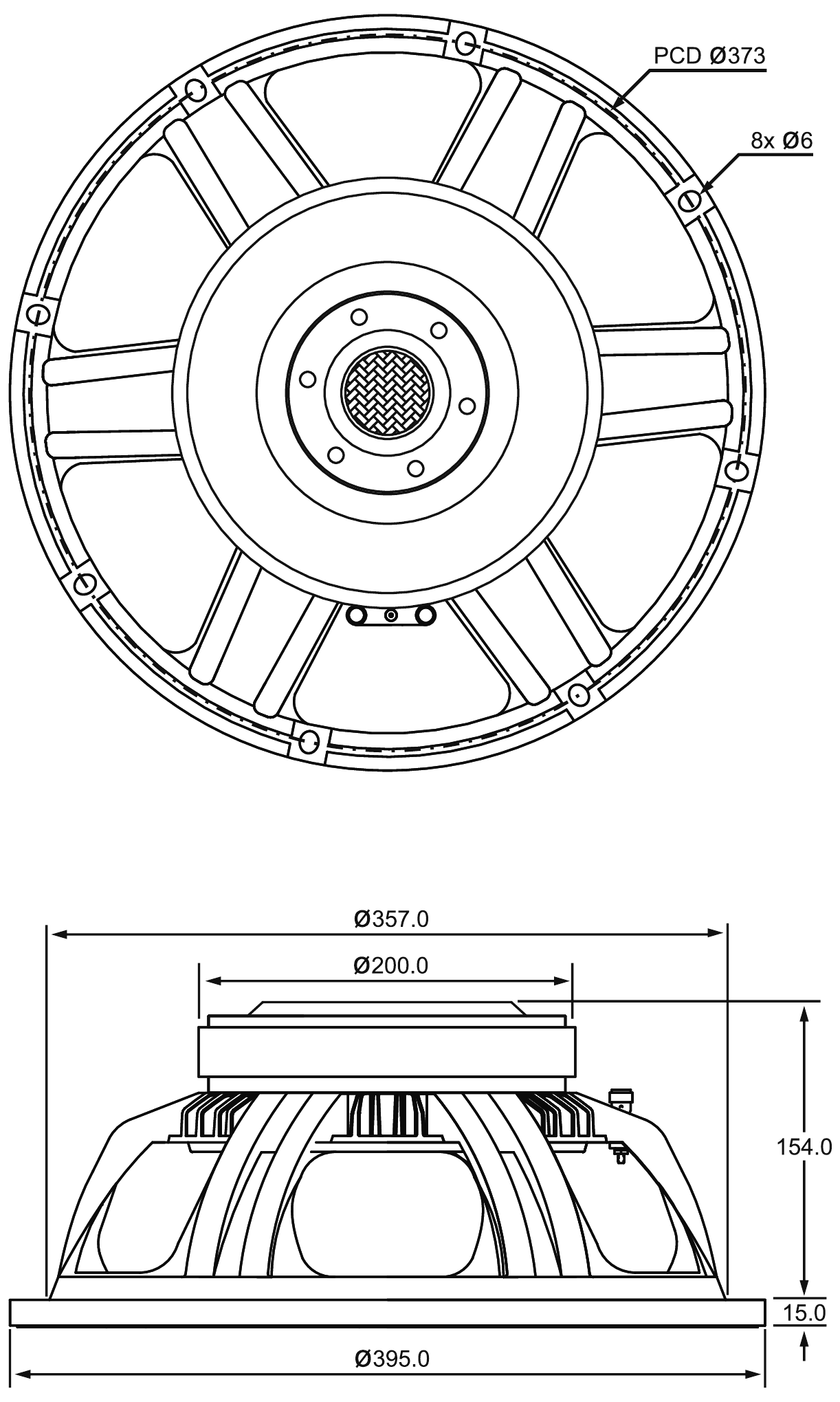

Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 395mm
- Baffle cutout diameter 357mm
- Overall depth 169mm
- Flange thickness 15mm
- Mounting depth 154mm
- Volume occupied by the driver (estimated) 4.2L
- Net weight 8.3kg
- Frame material Aluminium
