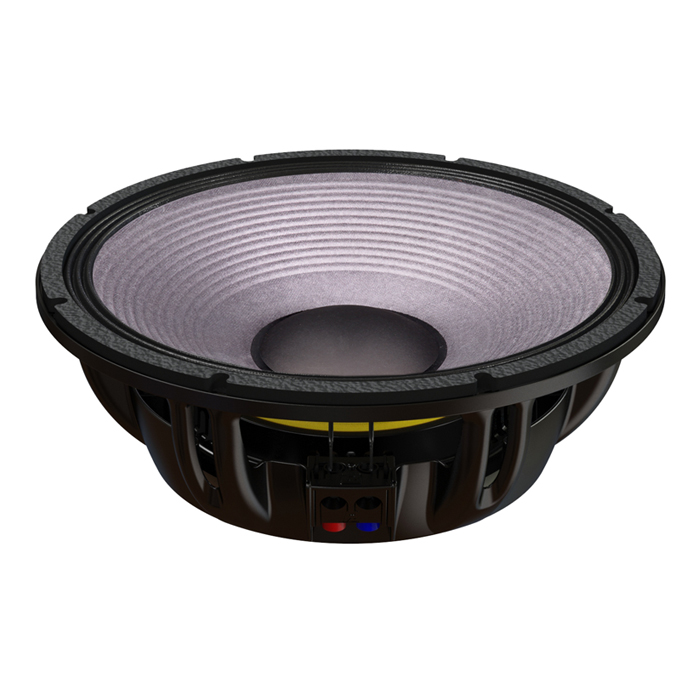

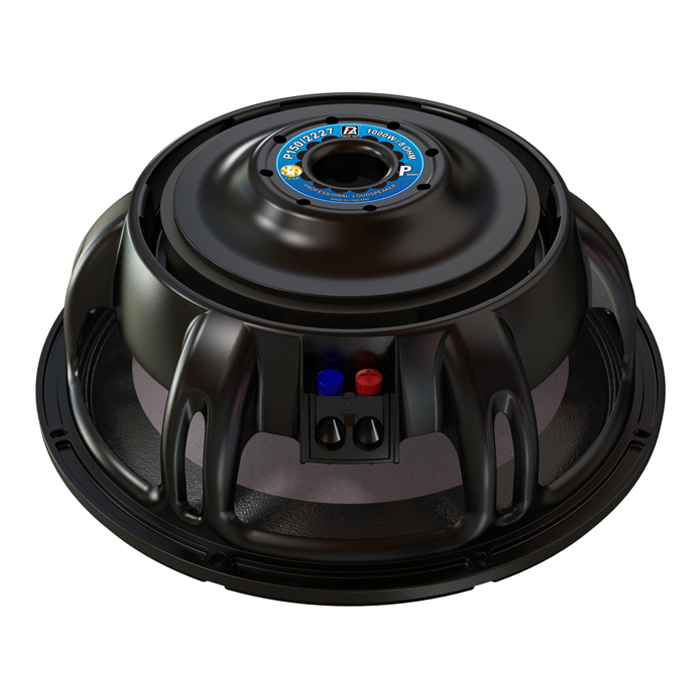

P.Audio P150/2227
8Ω
Low frequency
| Nominal diameter | 15″ / 381 mm |
| Resonance | 45 Hz |
| Q factor | 0.34 |
| Sensitivity | 96.6 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.6dB

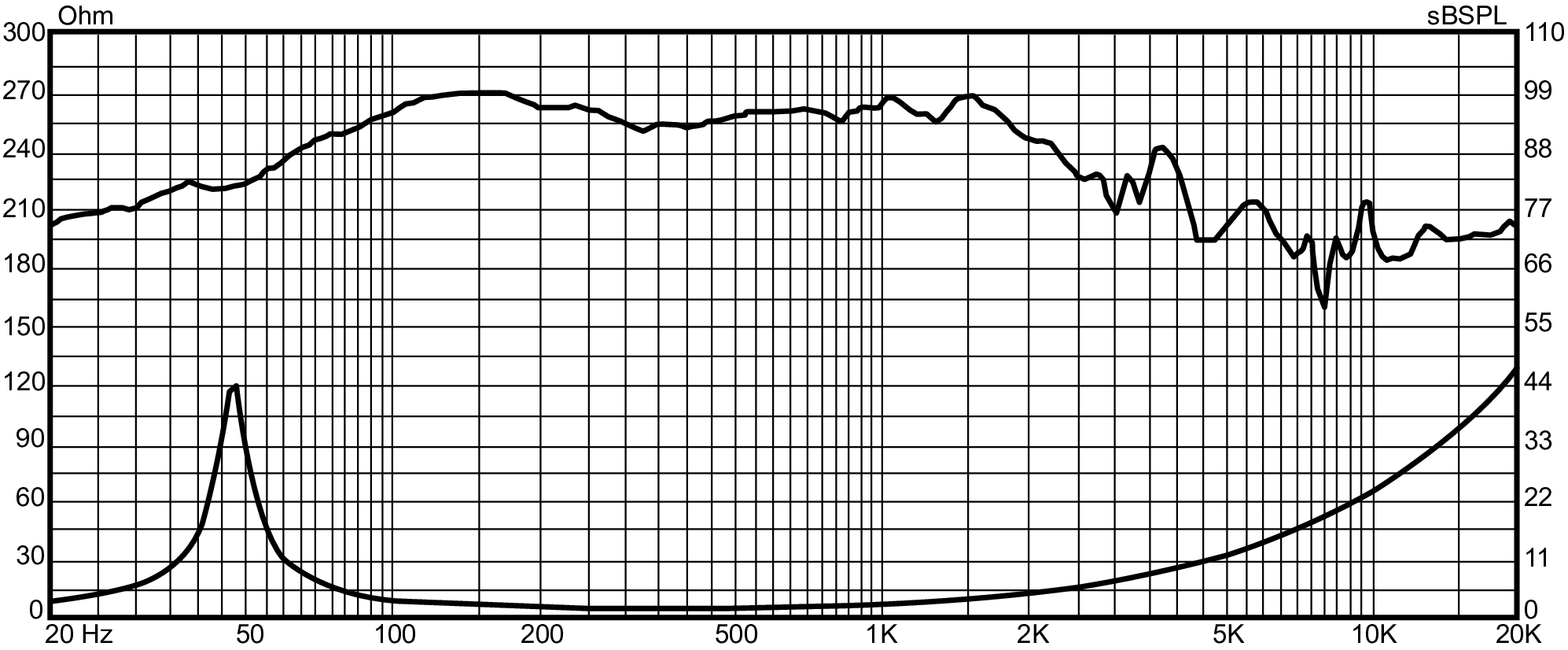

- Frequency response 45 - 2000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45Hz
- Mechanical quality factor QMS 7.70
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion xmax 5.5mm
- Air volume displaced at xmax VD 499cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 1.03mH
- VC Diameter 101.6mm
- Winding height HVC 21mm
- Winding material Flat Aluminium Wire
- Former material Glass Fiber
Magnet
- Flux density B 1.2T
- Force factor Bl 22.5N/A
- Motor constant Bl/√RE 9.69N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 340mm
- Effective area SD 908cm²
- Moving mass MMS 113g
- Moving mass (without air load) MMD 94g
- Material Paper
Suspensions
- Stiffness KMS 9.26N/mm
- Compliance CMS 108µm/N
- Equivalent volume to the compliance VAS 118L
- Mechanical resistance RMS 4.14N·s/m
- Surround material Cloth
- Spider material Double Layer

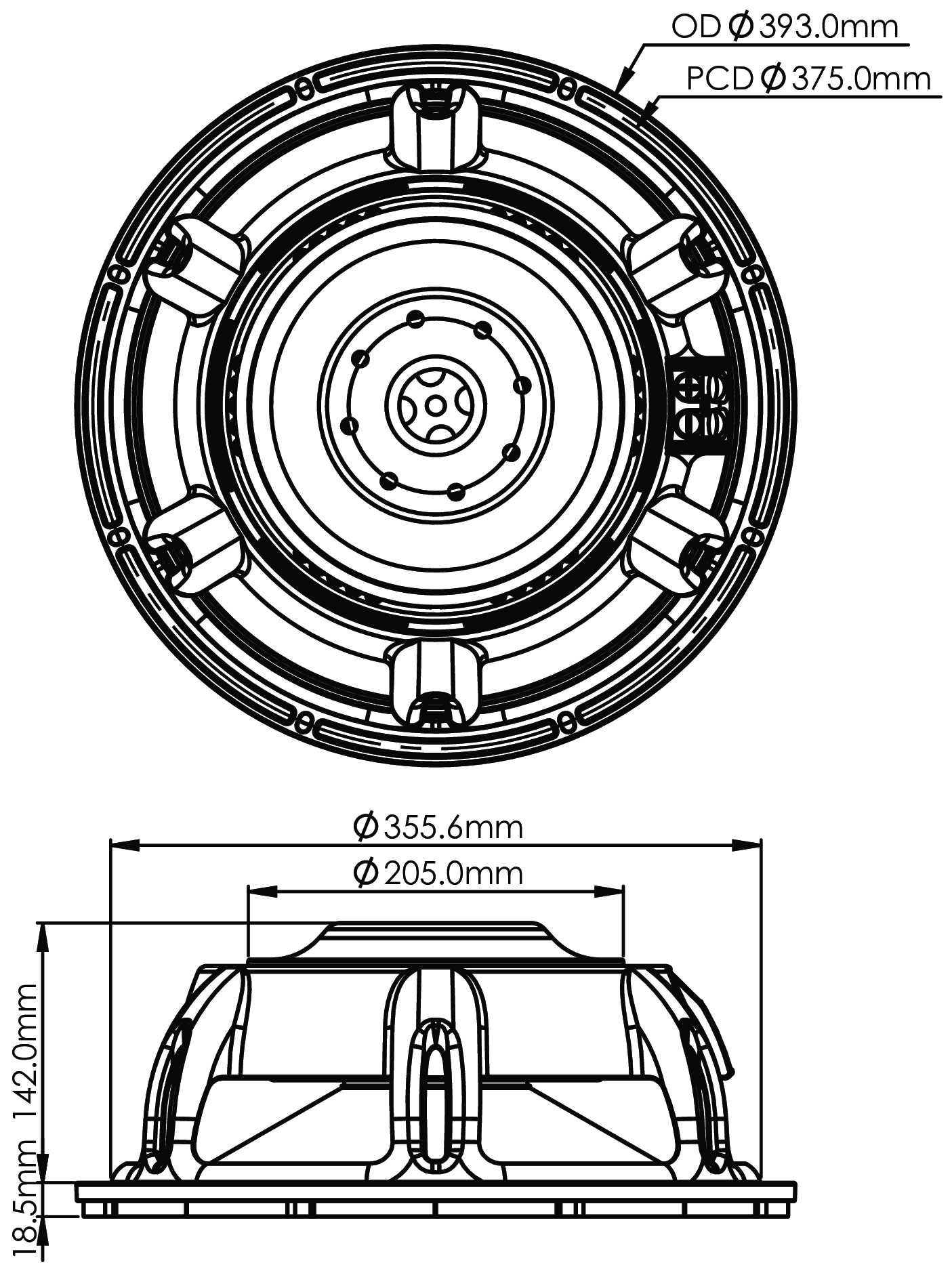

Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 393mm
- Baffle cutout diameter 356mm
- Overall depth 161mm
- Flange thickness 19mm
- Mounting depth 142mm
- Volume occupied by the driver (estimated) 5.2L
- Net weight 12.0kg
- Frame material Aluminium
