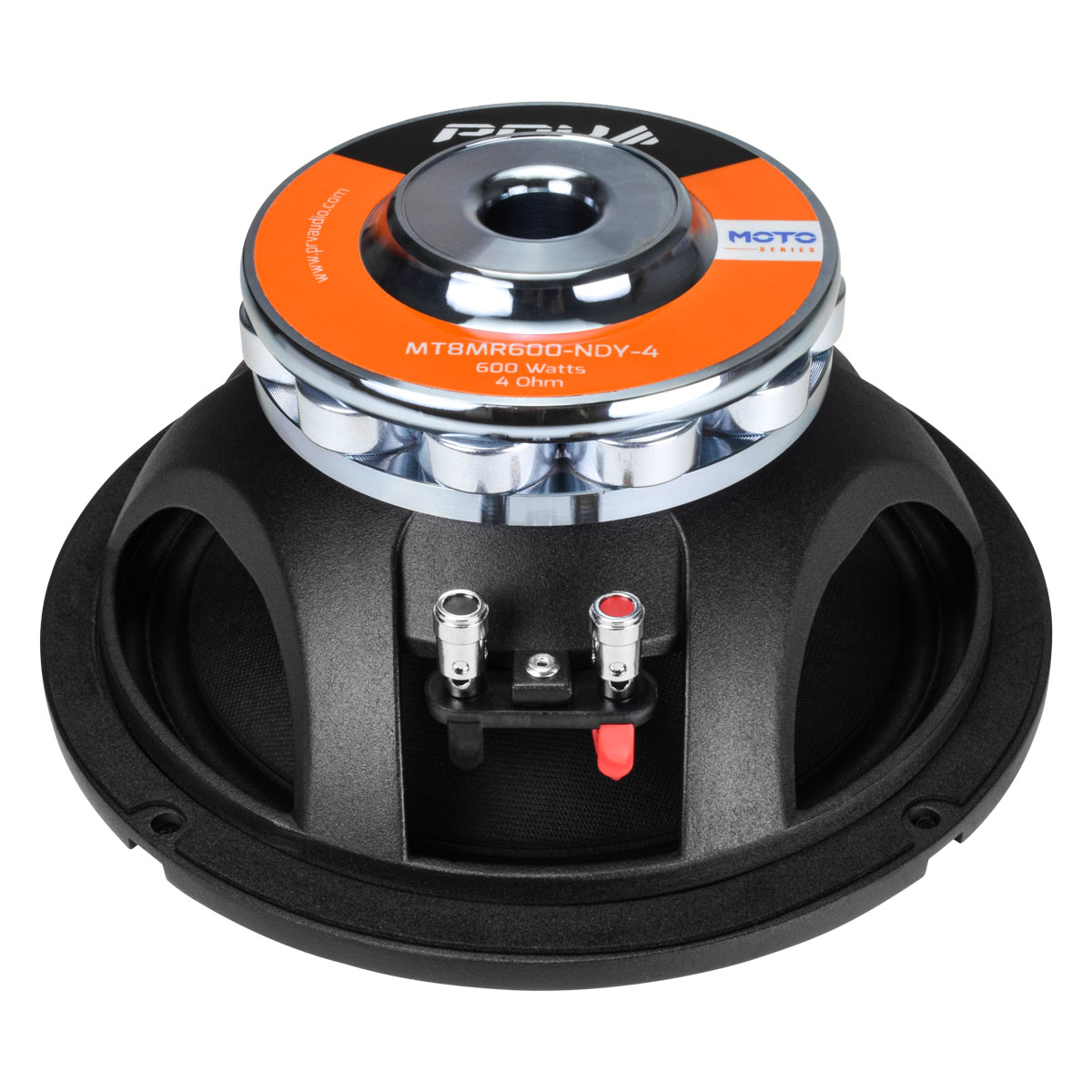

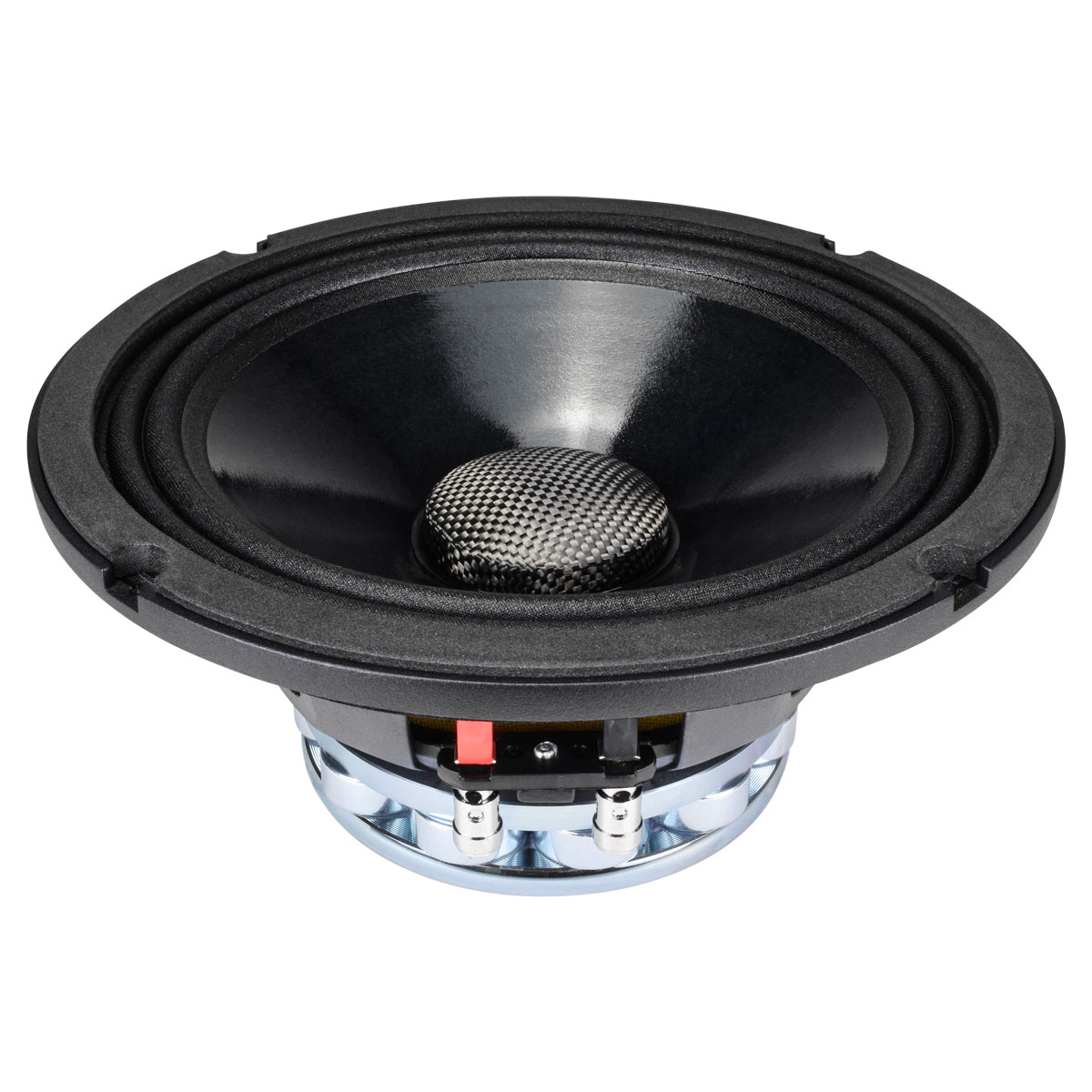

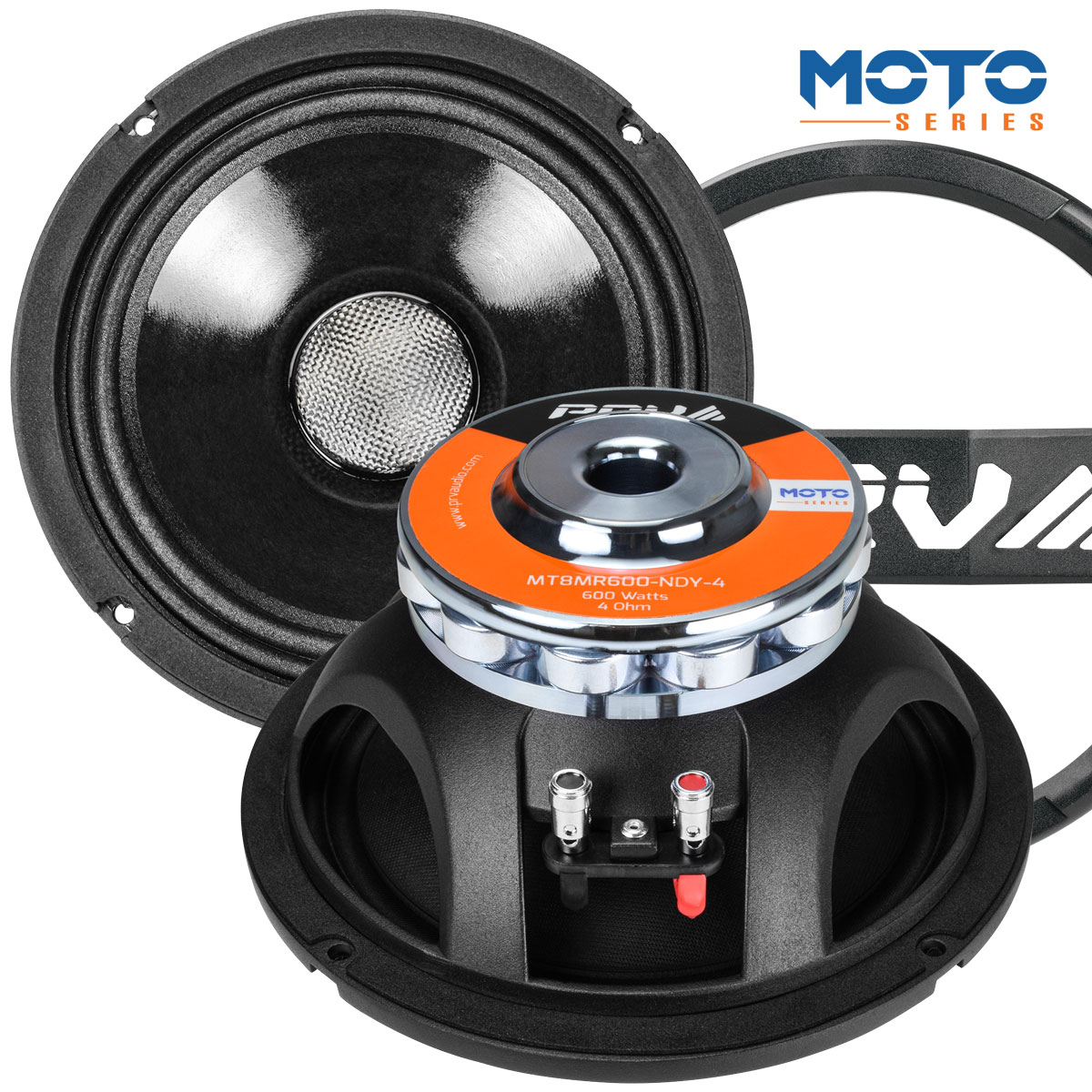

PRV Audio MT8MR600-NDY-4
4Ω
Low frequency
| Nominal diameter | 8″ / 206 mm |
| Resonance | 91 Hz |
| Q factor | 0.42 |
| Sensitivity | 95 dB |
| Linear excursion | ± 3.8 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95dB

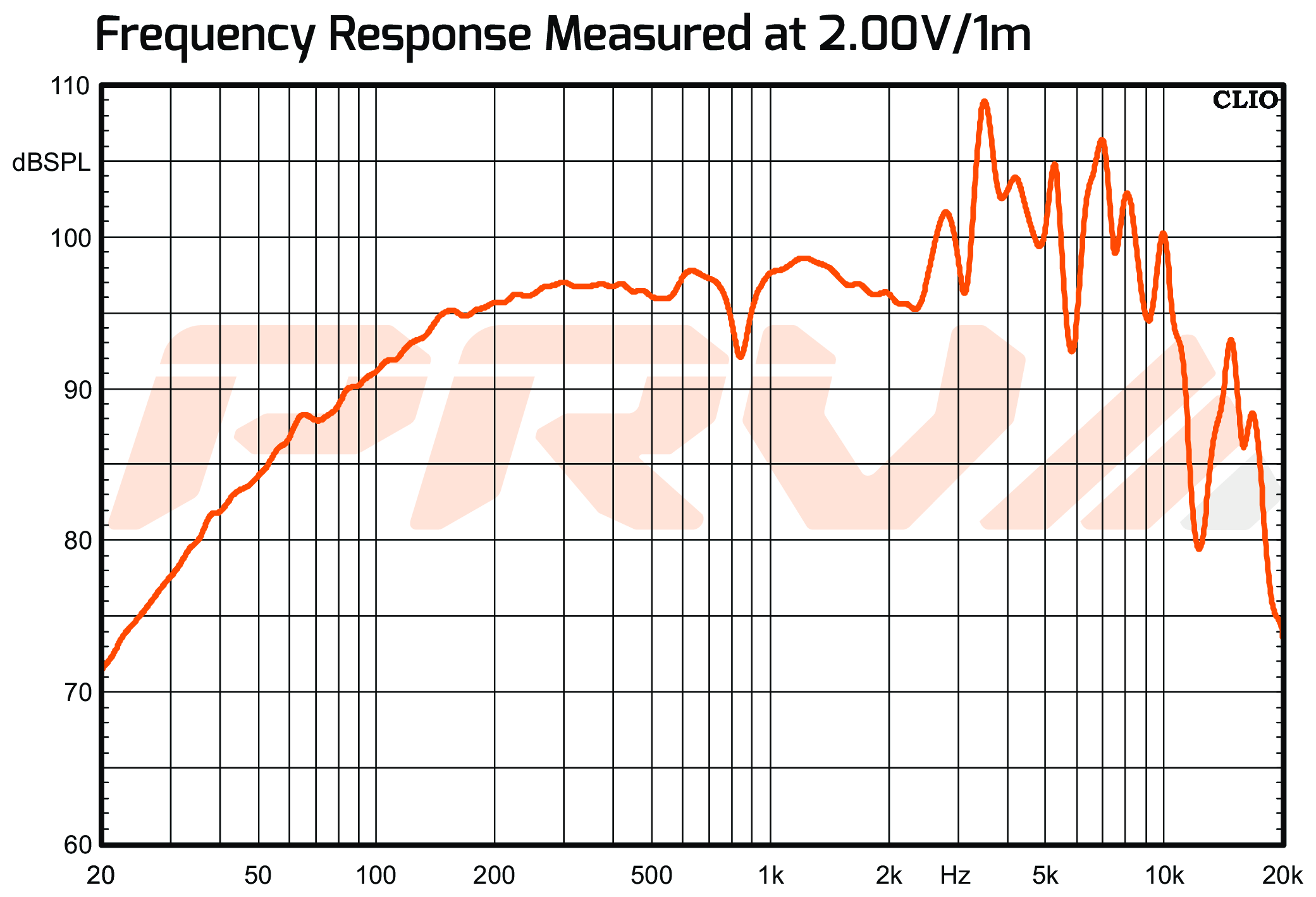

- Frequency response 90 - 10000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 91Hz
- Mechanical quality factor QMS 23.19
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion xmax 3.8mm
- Air volume displaced at xmax VD 85cm³
- Power handling P 300W
- Program power Pmax 600W
- Peak power Ppeak 1200W
Voice Coil

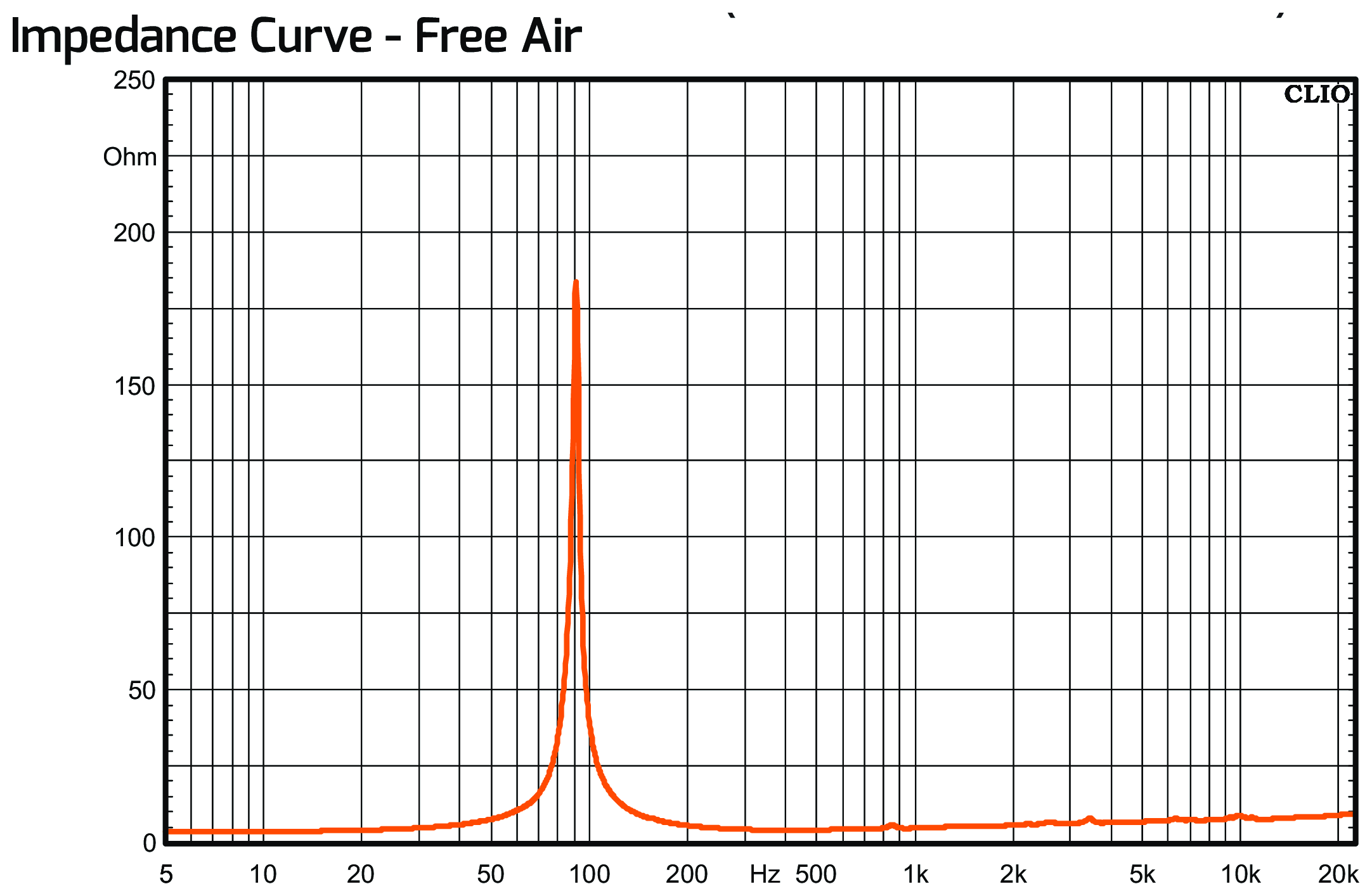

- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.108mH
- VC Diameter 50.8mm
- Winding height HVC 11mm
- Winding material Copper Clad Aluminium
- Former material Kapton
Magnet
- Force factor Bl 9.86N/A
- Motor constant Bl/√RE 5.43N/√W
- Air gap height HAG 7mm
Diaphragm
- Effective diameter 170mm
- Effective area SD 227cm²
- Moving mass MMS 21.9g
- Moving mass (without air load) MMD 19.5g
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 10.2L
- Mechanical resistance RMS 0.54N·s/m

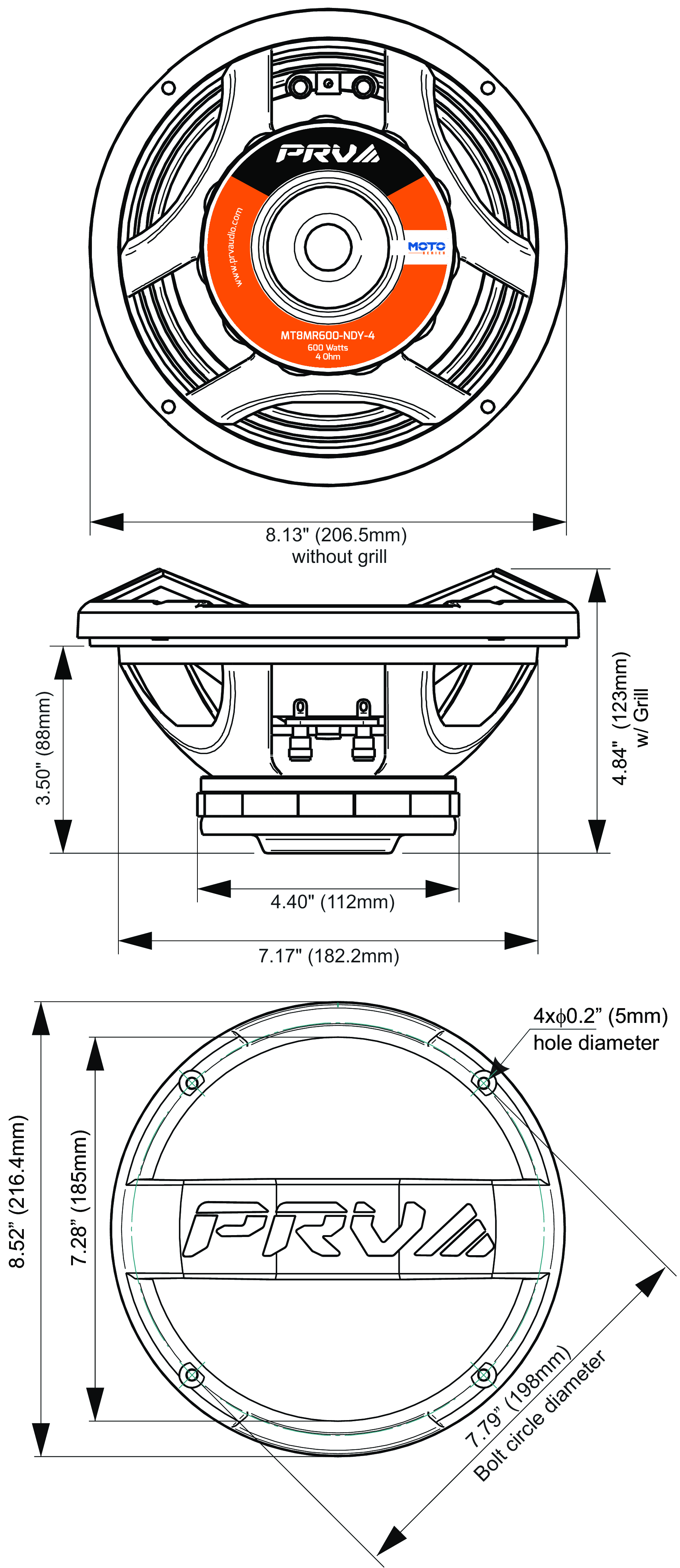

Dimensions
- Nominal diameter 8″
- 206mm
- Overall diameter 206mm
- Baffle cutout diameter 182mm
- Overall depth 123mm
- Flange thickness 34mm
- Mounting depth 89mm
- Volume occupied by the driver (estimated) 1L
- Net weight 2.4kg
- Frame material Die Cast Aluminium
.png)
.png)
.png)
