Precision Devices PD.121
Woofer
12″ / 300 mm
Nominal diameter
53 Hz
Resonance
0.23
Q factor
97 dB
Sensitivity
± 2.7 mm
Linear excursion
600 W
Program Power
![Precision Devices PD.121 Woofer](/PrecisionDevices/PD.121/PrecisionDevices_PD.121_(Photo_1).jpg)

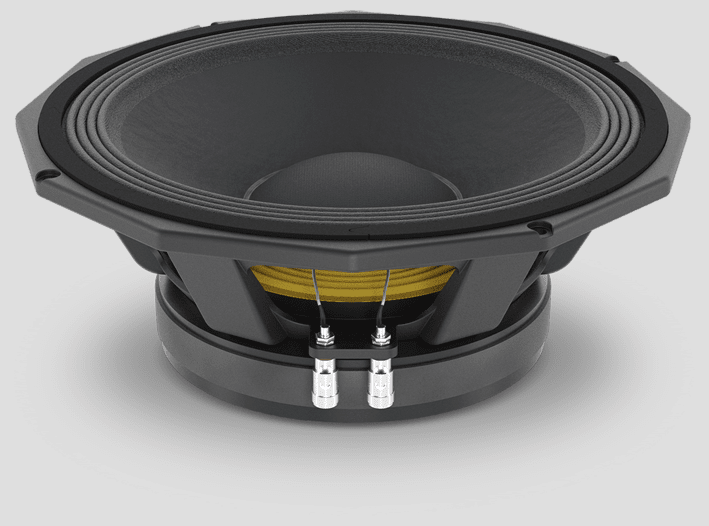

![Precision Devices PD.121 Woofer](/PrecisionDevices/PD.121/PrecisionDevices_PD.121_(Photo_2).jpg)
- Sensitivity (1W, 1m, infinite baffle)
- SPL1W
- 97.0
- dB
- Frequency response
- 100 - 6000
- Hz
- Resonance frequency (free air)
- fS
- 53.3
- Hz
- Mechanical quality factor
- QMS
- 14.66
- Electrical quality factor
- QES
- 0.23
- Total quality factor
- QTS
- 0.23
- Maximum linear excursion
- xmax
- 2.7
- mm
- Air volume displaced at xmax
- VD
- 143
- cm³
- Power handling
- P
- 300
- W
- Program power
- Pmax
- 600
- W
- Nominal impedance
- Z
- 8
- Ω
- DC resistance
- RE
- 5.9
- Ω
- Inductance (1kHz)
- LE
- 0.42
- mH
- VC Diameter
- 63
- mm
- Winding height
- HVC
- 12
- mm
- Winding material
- Copper
- Former material
- Glass Fibre
- Flux density
- B
- 1.5
- T
- Force factor
- Bl
- 21.46
- N/A
- Motor constant
- Bl/√RE
- 8.81
- N/√W
- Air gap height
- HAG
- 9
- mm
- Material
- Ceramic
- Effective diameter
- 260
- mm
- Effective area
- SD
- 531
- cm²
- Moving mass
- MMS
- 65.4
- g
- Moving mass (without air load)
- MMD
- 56.3
- g
- Material
- Paper
- Stiffness
- KMS
- 5.94
- N/mm
- Compliance
- CMS
- 168
- µm/N
- Equivalent volume to the compliance
- VAS
- 66.6
- L
- Mechanical resistance
- RMS
- 1.49
- N·s/m

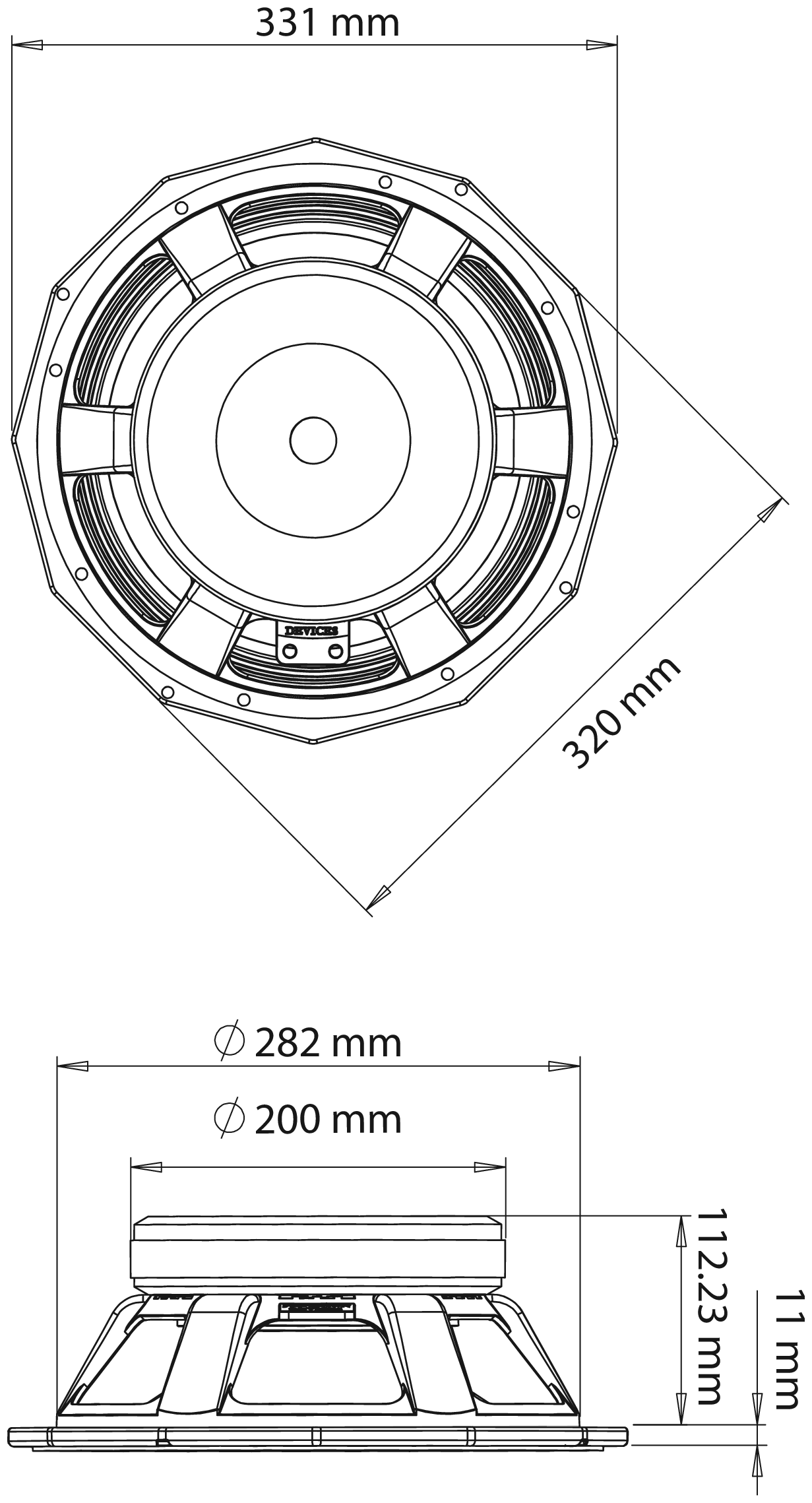

- Nominal diameter
- 12
- ″
- 300
- mm
- Overall diameter
- 330
- mm
- Baffle cutout diameter
- 282
- mm
- Overall depth
- 125
- mm
- Flange thickness
- 10
- mm
- Mounting depth
- 115
- mm
- Volume occupied by the driver (estimated)
- 3.3
- L
- Net weight
- 9.2
- kg
Thiele & Small parameters
Large signal parameters
Voice Coil
Magnet
Diaphragm
Suspensions
Dimensions
![Precision Devices PD.121 SPL & Impedance](/PrecisionDevices/PD.121/PrecisionDevices_PD.121_(Frequency_response_+_Impedance).png)
