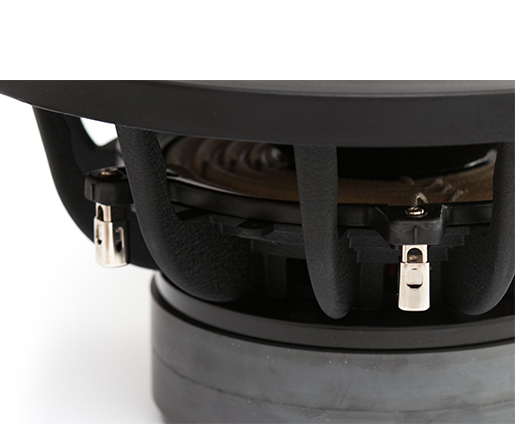

Pride HP 15 D2
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 28 Hz |
| Q factor | 0.39 |
| Sensitivity | 88.4 dB |
| Linear excursion | ± 19 mm |
| Program Power | 2500 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 11.25
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion xmax 19mm
- Air volume displaced at xmax VD 1501cm³
- Power handling P 1250W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.2Ω
- Inductance (1kHz, in series, estimated) LE 3.49mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 22N/A
- Motor constant Bl/√RE 12.3N/√W
- Weight 4.2kg
- Material Ferrite
Diaphragm
- Effective diameter 317mm
- Effective area SD 790cm²
- Moving mass MMS 347g
- Moving mass (without air load) MMD 332g
Suspensions
- Stiffness KMS 10.8N/mm
- Compliance CMS 93µm/N
- Equivalent volume to the compliance VAS 82L
- Mechanical resistance RMS 5.43N·s/m
Dimensions
- Nominal diameter 15″
- 381mm
- Baffle cutout diameter 353mm
- Overall depth 182mm
- Volume occupied by the driver (estimated) 4.4L
- Net weight 13.0kg
- Frame material Aluminium
