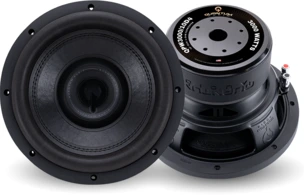

QUANTUM QPW3000/10D4 Subwoofer

QUANTUM QPW3000/10D4

2 x 4 Ω
10″ Subwoofer
fS32.7 Hz
SD346 cm²
QTS0.54
SPL1W82.9 dB
Bl/√RE8.23
Pmax1500 W
QUANTUM QPW3000/12D4 Subwoofer

QUANTUM QPW3000/12D4

2 x 4 Ω
12″ Subwoofer
fS30 Hz
SD527 cm²
QTS0.58
SPL1W85.4 dB
Bl/√RE8.1
Pmax3000 W
QUANTUM QPW3000/8D4 Subwoofer

QUANTUM QPW3000/8D4

2 x 4 Ω
8″ Subwoofer
fS41.1 Hz
SD191 cm²
QTS0.40
SPL1W82.8 dB
Bl/√RE7.52
Pmax1200 W
