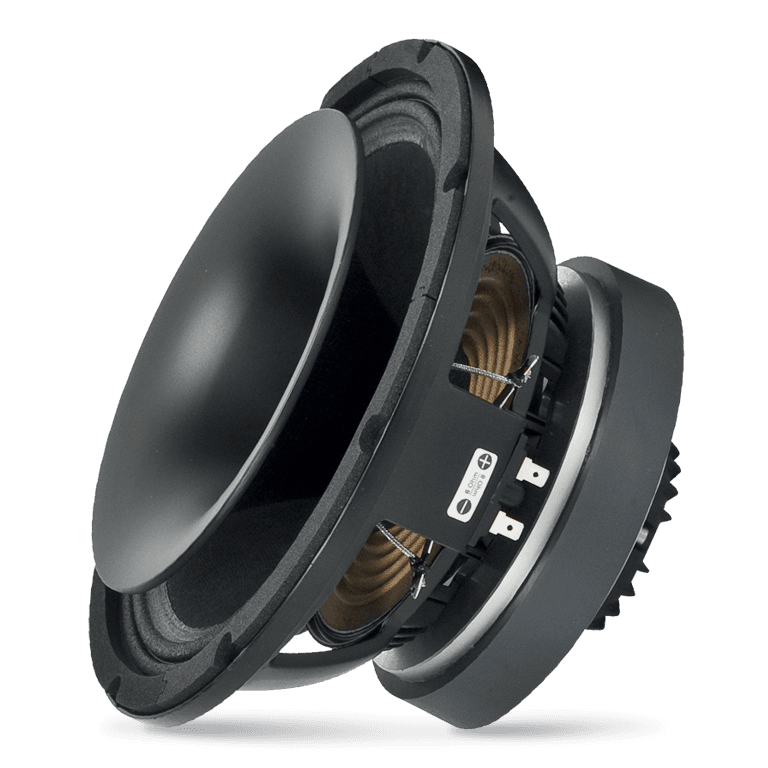

RCF CX10G251
8Ω
Coaxial
| Nominal diameter | 10″ / 254 mm |
| Resonance | 72 Hz |
| Q factor | 0.28 |
| Sensitivity | 99.4 dB |
| Linear excursion | ± 5 mm |
| Program Power | 600 W |
Discontinued
.png)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 99.4dB
- Frequency response 65 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 72Hz
- Mechanical quality factor QMS 5.00
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.28
Large signal parameters
- Maximum linear excursion xmax 5mm
- Maximum excursion before damage xlim 15mm
- Air volume displaced at xmax VD 200cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.5mH
- VC Diameter 63mm
- Winding material Aluminium
Magnet
- Force factor Bl 14.2N/A
- Motor constant Bl/√RE 6.23N/√W
- Material Ceramic
Diaphragm
- Effective diameter 210mm
- Effective area SD 400cm²
- Moving mass MMS 25g
- Moving mass (without air load) MMD 19.5g
- Material Polymide
Suspensions
- Stiffness KMS 6.9N/mm
- Compliance CMS 145µm/N
- Equivalent volume to the compliance VAS 33L
- Mechanical resistance RMS 2.26N·s/m
- Surround material Polycotton
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 260mm
- Baffle cutout diameter 232mm
- Overall depth 144mm
- Flange thickness 8mm
- Mounting depth 136mm
- Volume occupied by the driver 2.5L
- Net weight 6.0kg
