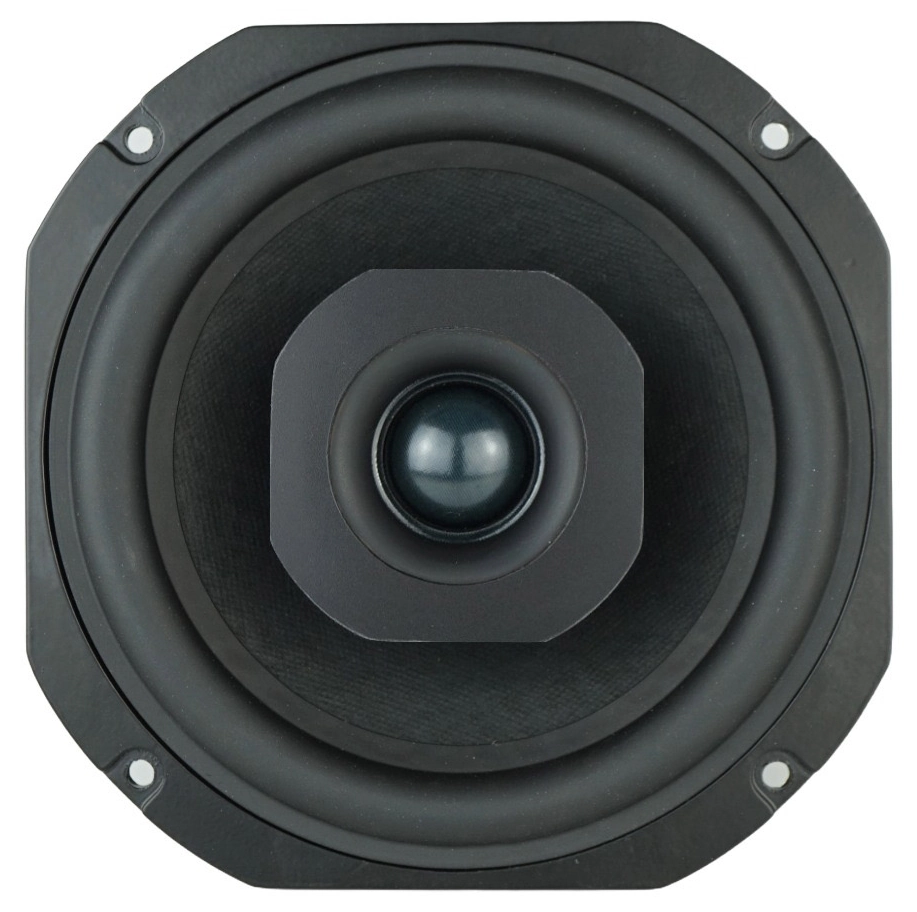

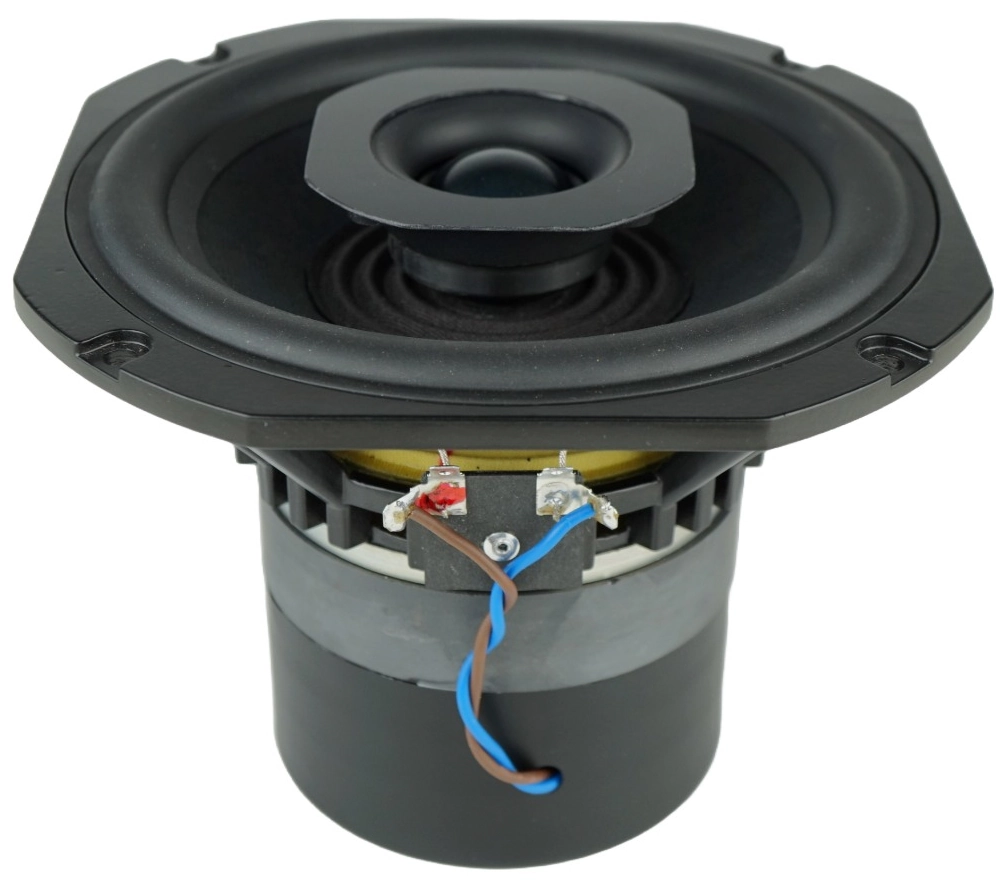

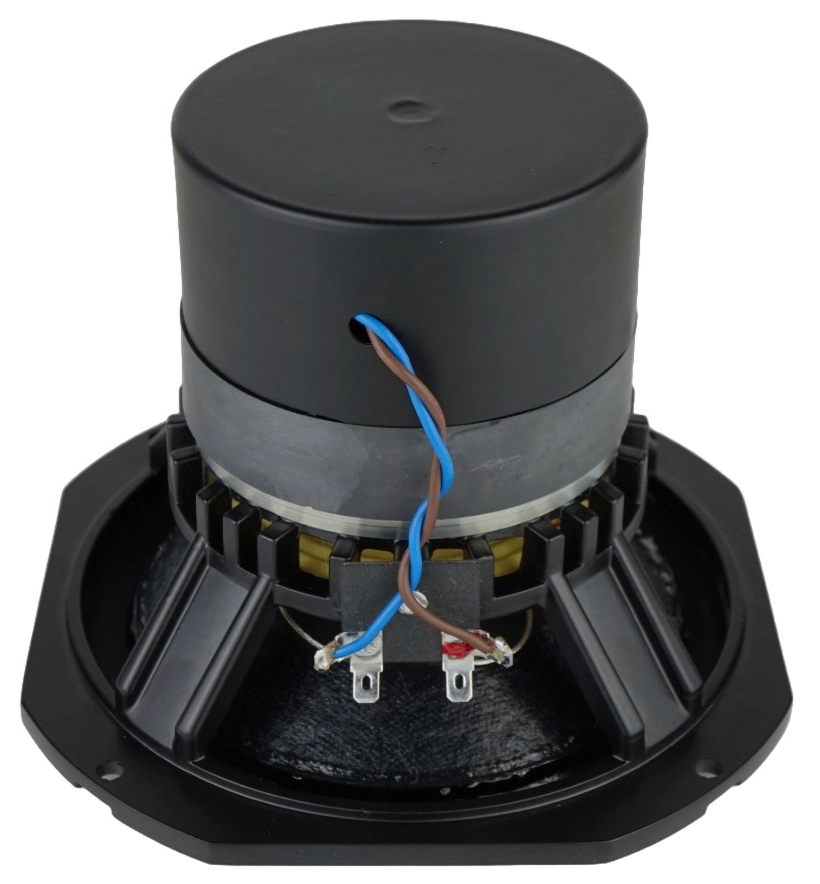

VOLT CX160.1
8Ω
Coaxial
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 40 Hz |
| Q factor | 0.35 |
| Sensitivity | 87.8 dB |
| Linear excursion | ± 3 mm |
| Program Power | 200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.8dB

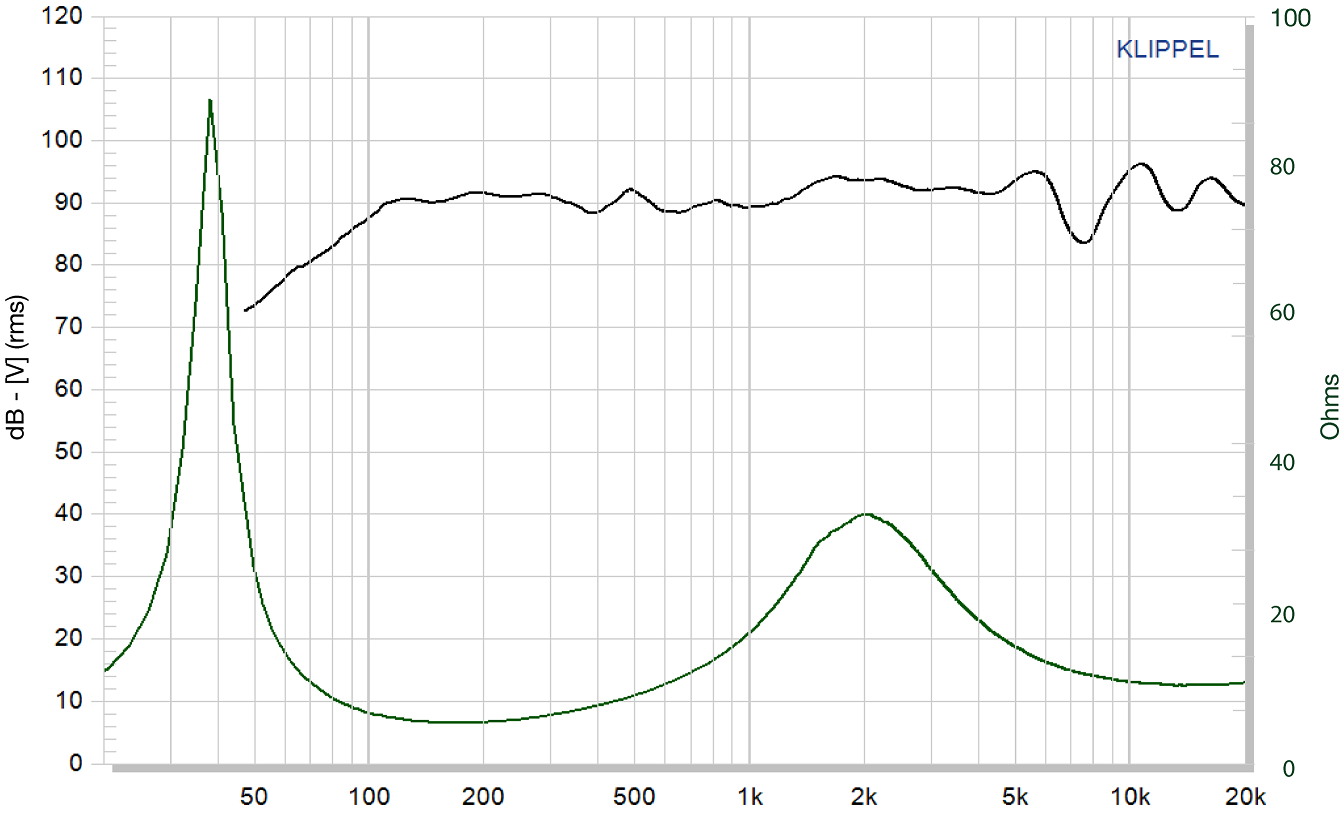

- Frequency response 50 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 40Hz
- Mechanical quality factor QMS 9.53
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion xmax 3mm
- Maximum excursion before damage xlim 12mm
- Air volume displaced at xmax VD 46cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.67mH
- VC Diameter 38mm
- Winding height HVC 17.5mm
Magnet
- Force factor Bl 9.5N/A
- Motor constant Bl/√RE 4.01N/√W
- Air gap height HAG 5.5mm
- Diameter 100mm
- Material Ferrite
Diaphragm
- Effective diameter 140mm
- Effective area SD 154cm²
- Moving mass MMS 23g
- Moving mass (without air load) MMD 21.6g
- Material Paper pulp
Suspensions
- Stiffness KMS 1.49N/mm
- Compliance CMS 670µm/N
- Equivalent volume to the compliance VAS 22.6L
- Mechanical resistance RMS 0.61N·s/m

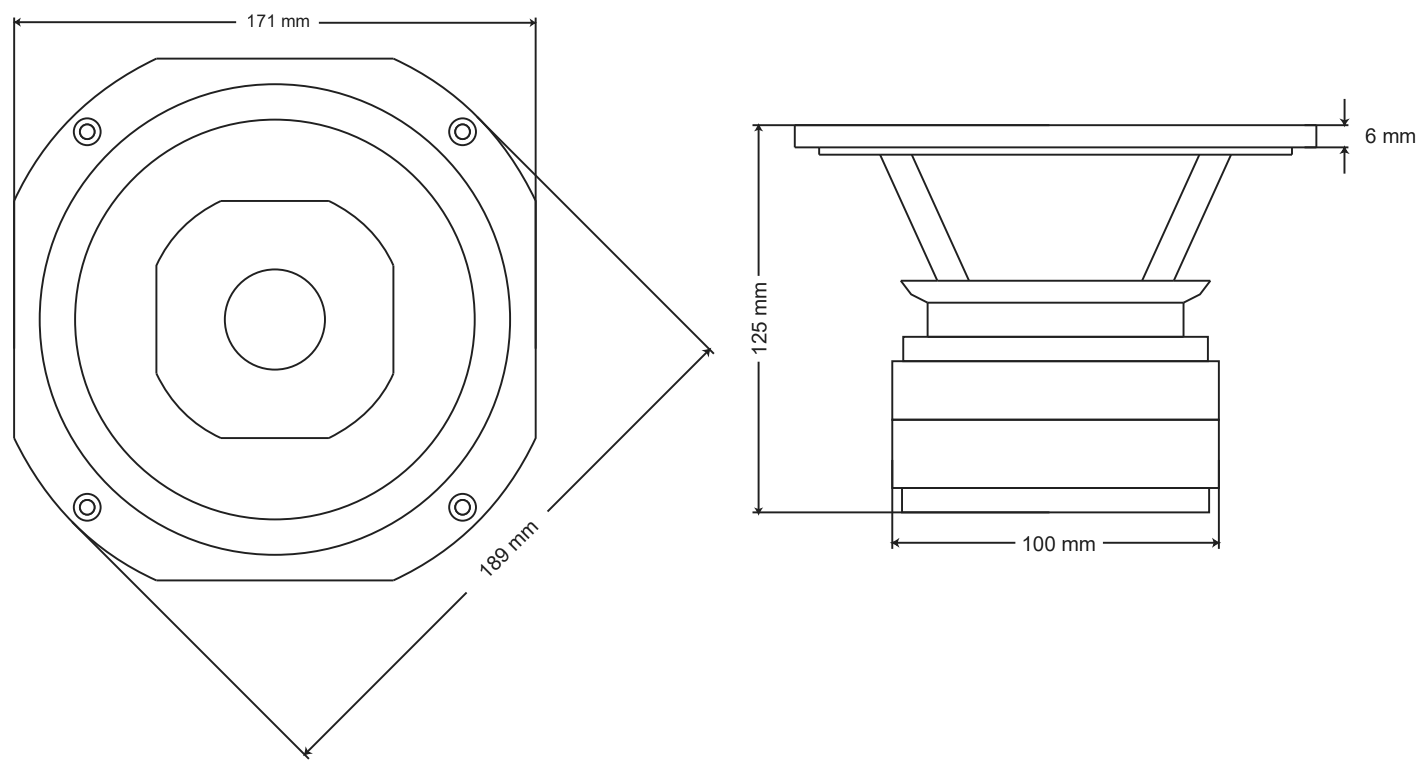

Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 171mm
- Baffle cutout diameter 160mm
- Overall depth 125mm
- Flange thickness 6mm
- Mounting depth 119mm
- Volume occupied by the driver 0.7L
- Net weight 2.5kg
- Frame material Diecast Aluminium
.png)
.png)
