VOLT B251.8 Woofer

VOLT B251.8

8 Ω
10″ Woofer
fS31 Hz
SD323 cm²
24 - 1000 Hz
QTS0.36
xmax5 mm
SPL1W88.4 dB
Bl/√RE4.87
Pmax300 W
VOLT SB2550 Subwoofer

VOLT SB2550

8 Ω
10″ Subwoofer
fS21 Hz
SD337 cm²
18 - 500 Hz
QTS0.29
xmax11 mm
SPL1W86.3 dB
Bl/√RE5.72
Pmax400 W
VOLT RV2501 Subwoofer

VOLT RV2501

8 Ω
10″ Subwoofer
fS39 Hz
SD330 cm²
30 - 800 Hz
QTS0.33
xmax5 mm
SPL1W90.2 dB
Bl/√RE6.04
Pmax500 W
Discontinued

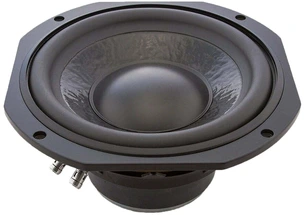

VOLT B2550 Subwoofer

VOLT B2550

8 Ω
10″ Subwoofer
fS24 Hz
SD337 cm²
18 - 500 Hz
QTS0.32
xmax10 mm
SPL1W85.8 dB
Bl/√RE6.06
Pmax400 W
VOLT SB220.1 Subwoofer

VOLT SB220.1

8 Ω
8″ Subwoofer
fS39 Hz
SD227 cm²
25 - 1000 Hz
QTS0.53
xmax14 mm
SPL1W86.2 dB
Bl/√RE4.21
Pmax300 W
Discontinued

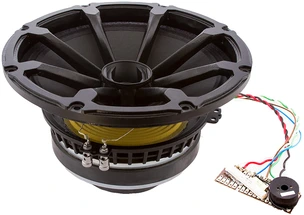

VOLT RVCXD3153 Coaxial

VOLT RVCXD3153

8 Ω
12″ Coaxial
fS50 Hz
SD479 cm²
50 - 19000 Hz
QTS0.23
xmax4 mm
SPL1W97.9 dB
Bl/√RE6.74
Pmax800 W
VOLT RV4564 Subwoofer

VOLT RV4564

8 Ω
18″ Subwoofer
fS26 Hz
SD1029 cm²
25 - 500 Hz
QTS0.31
xmax12.5 mm
SPL1W92.3 dB
Bl/√RE10.7
Pmax1500 W
Discontinued
VOLT RV4514 Subwoofer

VOLT RV4514

8 Ω
18″ Subwoofer
fS44 Hz
SD1029 cm²
25 - 500 Hz
QTS0.37
xmax10 mm
SPL1W96.4 dB
Bl/√RE9.3
Pmax2000 W
Discontinued
VOLT RV4504 Subwoofer

VOLT RV4504

8 Ω
18″ Subwoofer
fS38 Hz
SD1029 cm²
25 - 600 Hz
QTS0.31
xmax10 mm
SPL1W95.3 dB
Bl/√RE10.7
Pmax1500 W
VOLT RV3863 Subwoofer

VOLT RV3863

8 Ω
15″ Subwoofer
fS29 Hz
SD760 cm²
30 - 500 Hz
QTS0.31
xmax7.5 mm
SPL1W92.9 dB
Bl/√RE8.01
Pmax800 W
Discontinued
VOLT RV3823 Subwoofer

VOLT RV3823

8 Ω
15″ Subwoofer
fS58 Hz
SD760 cm²
30 - 500 Hz
QTS0.43
xmax4.5 mm
SPL1W95.6 dB
Bl/√RE8.45
Pmax1000 W
Discontinued
VOLT RV3813 Subwoofer

VOLT RV3813

8 Ω
15″ Subwoofer
fS35 Hz
SD760 cm²
35 - 2500 Hz
QTS0.31
xmax4.5 mm
SPL1W96.7 dB
Bl/√RE7.08
Pmax1000 W
Discontinued

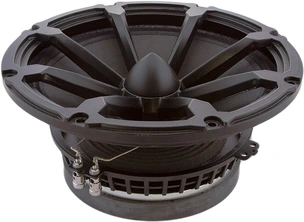

VOLT RV3153 Woofer

VOLT RV3153

8 Ω
12″ Woofer
fS51 Hz
SD479 cm²
50 - 3000 Hz
QTS0.27
xmax4 mm
SPL1W97.4 dB
Bl/√RE6.16
Pmax800 W
VOLT RV3143 Woofer

VOLT RV3143

8 Ω
12″ Woofer
fS35 Hz
SD479 cm²
29 - 700 Hz
QTS0.30
xmax5.2 mm
SPL1W92.2 dB
Bl/√RE7.29
Pmax600 W
Discontinued

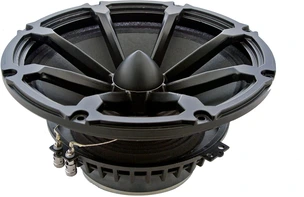

VOLT RV3113 Woofer

VOLT RV3113

8 Ω
12″ Woofer
fS51 Hz
SD479 cm²
50 - 3000 Hz
QTS0.43
xmax4 mm
SPL1W94.4 dB
Bl/√RE5.35
Pmax600 W
Discontinued

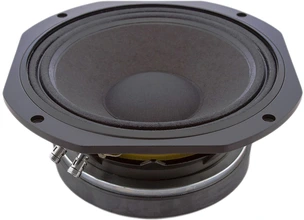

VOLT M2500.2

VOLT M2500.2

8 Ω
10″ 
fS59 Hz
SD337 cm²
200 - 3000 Hz
QTS0.14
xmax0.4 mm
SPL1W98.3 dB
Bl/√RE8.86
Pmax400 W
Discontinued
VOLT CX220.1 Coaxial

VOLT CX220.1

8 Ω
8″ Coaxial
fS36 Hz
SD214 cm²
40 - 20000 Hz
QTS0.24
xmax5.5 mm
SPL1W90.1 dB
Bl/√RE4.7
Pmax300 W
Discontinued

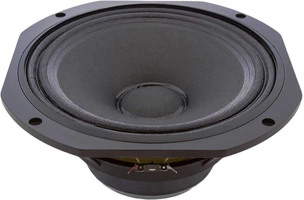

VOLT BM251.4 Woofer

VOLT BM251.4

8 Ω
10″ Woofer
fS59 Hz
SD337 cm²
40 - 4500 Hz
QTS0.28
xmax2.5 mm
SPL1W96.4 dB
Bl/√RE5.46
Pmax400 W
Discontinued

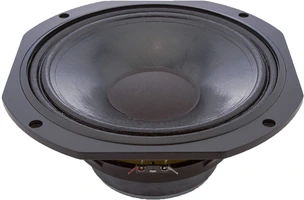

VOLT BM251.3 Woofer

VOLT BM251.3

8 Ω
10″ Woofer
fS55 Hz
SD336 cm²
40 - 4000 Hz
QTS0.35
xmax5 mm
SPL1W94.1 dB
Bl/√RE5.35
Pmax400 W
Discontinued

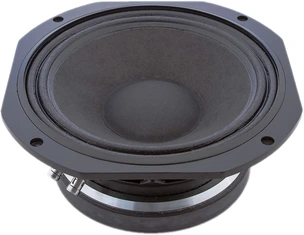

VOLT BM2500.5 Woofer

VOLT BM2500.5

8 Ω
10″ Woofer
fS52 Hz
SD336 cm²
45 - 2500 Hz
QTS0.25
xmax4 mm
SPL1W95.4 dB
Bl/√RE6.58
Pmax500 W
VOLT BM2500.4 Subwoofer

VOLT BM2500.4

8 Ω
10″ Subwoofer
fS45 Hz
SD337 cm²
25 - 2000 Hz
QTS0.27
xmax8 mm
SPL1W91.9 dB
Bl/√RE7.07
Pmax400 W
VOLT BM228.8 Woofer

VOLT BM228.8

8 Ω
8″ Woofer
fS35 Hz
SD214 cm²
30 - 3000 Hz
QTS0.35
xmax4 mm
SPL1W87.6 dB
Bl/√RE4.86
Pmax300 W
Discontinued

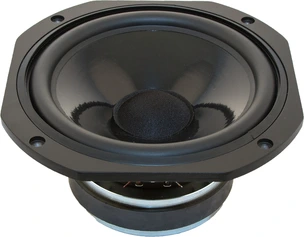

VOLT BM220.8 Woofer

VOLT BM220.8

8 Ω
8″ Woofer
fS34 Hz
SD214 cm²
30 - 3000 Hz
QTS0.27
xmax4 mm
SPL1W89.9 dB
Bl/√RE4.69
Pmax300 W
Discontinued

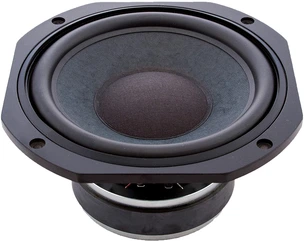

VOLT BM220.1 Woofer

VOLT BM220.1

8 Ω
8″ Woofer
fS35 Hz
SD214 cm²
40 - 2500 Hz
QTS0.20
xmax5.5 mm
SPL1W90.5 dB
Bl/√RE5.32
Pmax300 W
VOLT BM165.1 Mid Bass

VOLT BM165.1

8 Ω
6.5″ Mid Bass
fS30 Hz
SD154 cm²
50 - 3000 Hz
QTS0.24
xmax6.3 mm
SPL1W87.4 dB
Bl/√RE4.18
Pmax200 W
Discontinued
VOLT B2549 Subwoofer

VOLT B2549

8 Ω
10″ Subwoofer
fS24 Hz
SD337 cm²
18 - 500 Hz
QTS0.32
xmax10 mm
SPL1W85.8 dB
Bl/√RE6.06
Pmax400 W
VOLT B2500.1 Woofer

VOLT B2500.1

8 Ω
10″ Woofer
fS39 Hz
SD337 cm²
25 - 1000 Hz
QTS0.34
xmax5.5 mm
SPL1W87.3 dB
Bl/√RE7.83
Pmax500 W
Discontinued

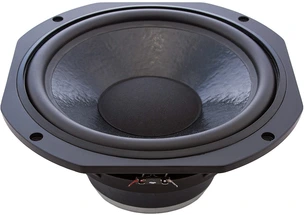

VOLT B250.8 Woofer

VOLT B250.8

8 Ω
10″ Woofer
fS32 Hz
SD324 cm²
24 - 1000 Hz
QTS0.30
xmax5.5 mm
SPL1W90.8 dB
Bl/√RE4.82
Pmax300 W
Discontinued

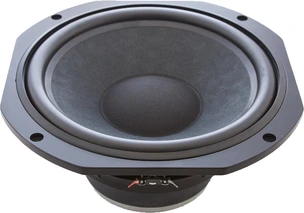

VOLT B250.2 Woofer

VOLT B250.2

8 Ω
10″ Woofer
fS50 Hz
SD324 cm²
30 - 1000 Hz
QTS0.32
xmax6 mm
SPL1W92.1 dB
Bl/√RE6.24
Pmax300 W
VOLT B220.2 Woofer

VOLT B220.2

8 Ω
8″ Woofer
fS32 Hz
SD214 cm²
25 - 1000 Hz
QTS0.25
xmax5.3 mm
SPL1W89 dB
Bl/√RE4.82
Pmax300 W
