VOLT B2549

• Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB

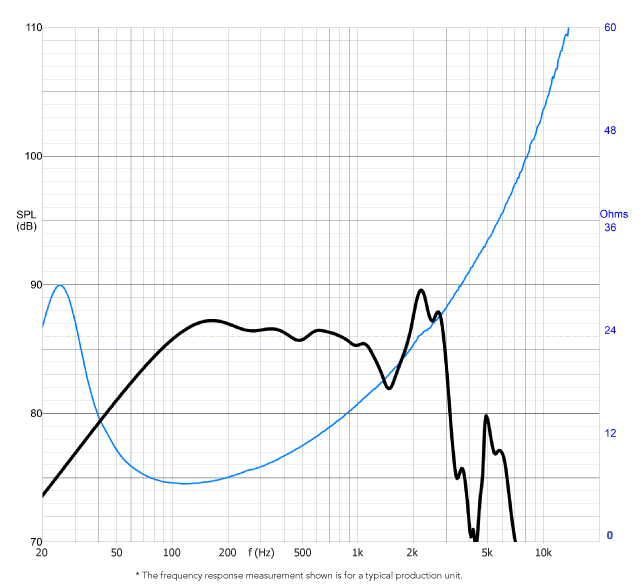

• Frequency response 18 - 500Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 24Hz
• Mechanical quality factor QMS 1.80
• Electrical quality factor QES 0.39
• Total quality factor QTS 0.32

Large signal parameters

• Maximum linear excursion xmax 10mm
• Maximum excursion before damage xlim 18mm
• Air volume displaced at xmax VD 337cm³
• Power handling P 200W
• Program power Pmax 400W

Voice Coil

• Nominal impedance Z 8Ω
• DC resistance RE 5.8Ω
• Inductance (1kHz) LE 0.95mH
• VC Diameter 50mm
• Winding material Copper

Magnet

• Force factor Bl 14.6N/A
• Motor constant Bl/√RE 6.06N/√W
• Weight 3.7kg

Diaphragm

• Effective diameter 207mm
• Effective area SD 337cm²
• Moving mass MMS 96g
• Moving mass (without air load) MMD 91.1g

Suspensions

• Stiffness KMS 2.13N/mm
• Compliance CMS 470µm/N
• Equivalent volume to the compliance VAS 74L
• Mechanical resistance RMS 8.04N·s/m

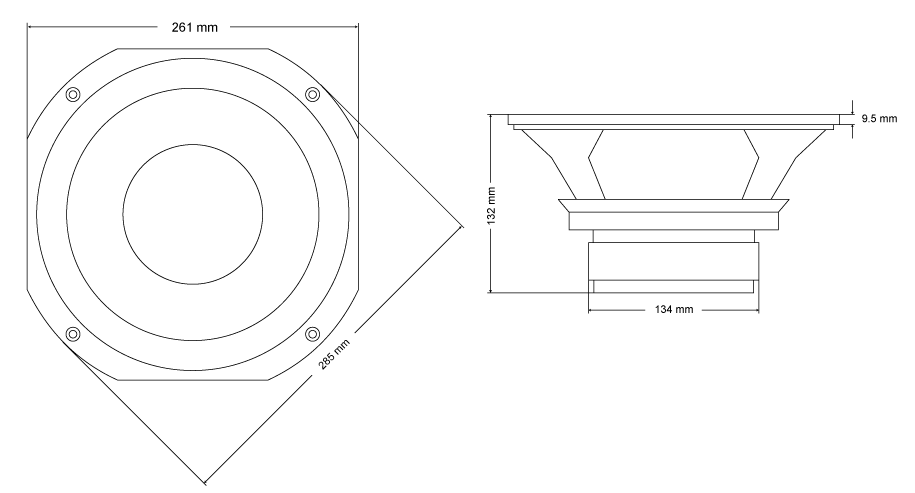

Dimensions

• Nominal diameter 10″
• 250mm
• Overall diameter 285mm
• Baffle cutout diameter 245mm
• Overall depth 132mm
• Flange thickness 9mm
• Mounting depth 123mm
• Volume occupied by the driver 1.2L
• Net weight 5.8kg
• Frame material Diecast Aluminium
