Peerless XXLS-P835037 Subwoofer

Peerless XXLS-P835037

4 Ω
10″ Subwoofer
fS30 Hz
SD346 cm²
40 - 500 Hz
QTS0.43
xmax15 mm
SPL1W86.4 dB
Bl/√RE6.26
Pmax240 W
Peerless XXLS-P835016 Subwoofer

Peerless XXLS-P835016

4 Ω
10″ Subwoofer
fS24 Hz
SD346 cm²
20 - 1000 Hz
QTS0.33
xmax15 mm
SPL1W86.7 dB
Bl/√RE6.2
Pmax200 W
Discontinued
Peerless XLS-P835028 Subwoofer

Peerless XLS-P835028

4 Ω
10″ Subwoofer
fS34.1 Hz
SD314 cm²
20 - 500 Hz
QTS0.51
xmax9 mm
SPL1W85 dB
Bl/√RE6.42
Pmax320 W
Discontinued
Peerless XLS-P830452 Subwoofer

Peerless XLS-P830452

4 Ω
10″ Subwoofer
fS22.6 Hz
SD350 cm²
20 - 2000 Hz
QTS0.22
xmax12.5 mm
SPL1W86.3 dB
Bl/√RE9.27
Pmax300 W
Discontinued

Peerless STW-325F75AL00-06

6 Ω
12″ Subwoofer
fS30 Hz
SD625 cm²
20 - 1000 Hz
QTS0.59
xmax9 mm
SPL1W87.9 dB
Bl/√RE7.67
Pmax1600 W
Discontinued

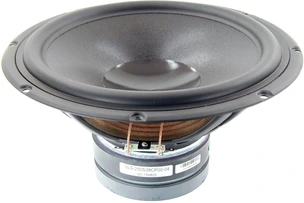

Peerless SLS-250S38CP00-04 Subwoofer

Peerless SLS-250S38CP00-04

4 Ω
10″ Subwoofer
fS26.9 Hz
SD346 cm²
20 - 20000 Hz
QTS0.37
xmax4.6 mm
SPL1W88.9 dB
Bl/√RE4.91
Pmax160 W
Discontinued

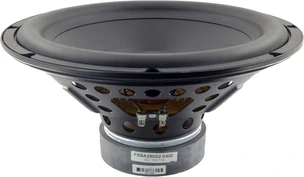

Peerless SBS-300F38CP01-04 Subwoofer

Peerless SBS-300F38CP01-04

4 Ω
12″ Subwoofer
fS36.2 Hz
SD511 cm²
40 - 200 Hz
QTS0.61
xmax8.3 mm
SPL1W86.4 dB
Bl/√RE6.41
Pmax500 W
Discontinued

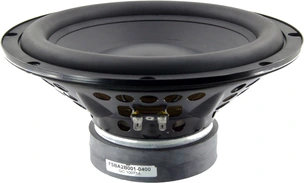

Peerless SBS-250F38CP01-04 Subwoofer

Peerless SBS-250F38CP01-04

4 Ω
10″ Subwoofer
fS50 Hz
SD340 cm²
40 - 200 Hz
QTS0.77
xmax10.5 mm
SPL1W86.3 dB
Bl/√RE5.52
Pmax400 W
Discontinued

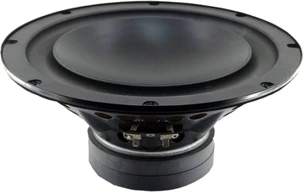

Peerless SBS-250F38AL01-04 Subwoofer

Peerless SBS-250F38AL01-04

4 Ω
10″ Subwoofer
fS33.4 Hz
SD314 cm²
30 - 200 Hz
QTS0.50
xmax7.4 mm
SPL1W84.2 dB
Bl/√RE6.86
Pmax500 W
Discontinued

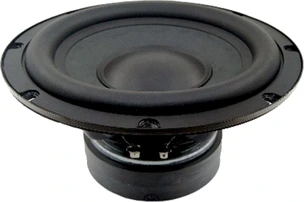

Peerless SBS-200F38PR01-04 Subwoofer

Peerless SBS-200F38PR01-04

4 Ω
8″ Subwoofer
fS31.2 Hz
SD255 cm²
20 - 1000 Hz
QTS0.40
xmax11.3 mm
SPL1W85.3 dB
Bl/√RE5.86
Pmax400 W
Discontinued

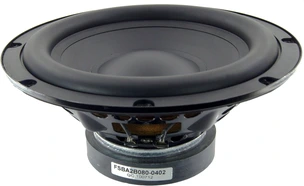

Peerless SBS-200F35CP01-04 Subwoofer

Peerless SBS-200F35CP01-04

4 Ω
8″ Subwoofer
fS40.5 Hz
SD241 cm²
40 - 500 Hz
QTS0.52
xmax9.1 mm
SPL1W85.5 dB
Bl/√RE5.28
Pmax400 W
Discontinued

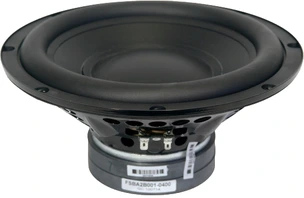

Peerless SBS-200F35AL01-04 Subwoofer

Peerless SBS-200F35AL01-04

4 Ω
8″ Subwoofer
fS44.3 Hz
SD214 cm²
40 - 500 Hz
QTS0.69
xmax9.1 mm
SPL1W83.4 dB
Bl/√RE5.02
Pmax400 W
Discontinued

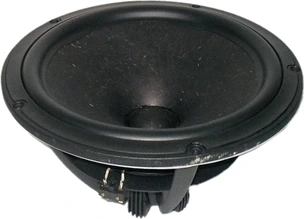

Peerless NE315W-08-HS Subwoofer

Peerless NE315W-08-HS

8 Ω
12″ Subwoofer
fS20.1 Hz
SD507 cm²
20 - 1000 Hz
QTS0.35
xmax9.4 mm
SPL1W87.4 dB
Bl/√RE7.02
Pmax440 W
Peerless NE265W-08 Subwoofer

Peerless NE265W-08

8 Ω
10″ Subwoofer
fS24 Hz
SD327 cm²
30 - 2000 Hz
QTS0.34
xmax12 mm
SPL1W86.5 dB
Bl/√RE6.13
Pmax380 W
Discontinued

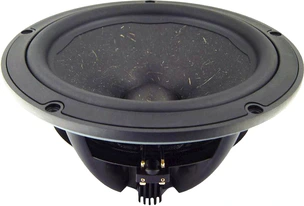

Peerless NE265W-08-HS Subwoofer

Peerless NE265W-08-HS

8 Ω
10″ Subwoofer
fS23 Hz
SD327 cm²
20 - 2000 Hz
QTS0.30
xmax9.4 mm
SPL1W87.5 dB
Bl/√RE5.88
Pmax380 W
Peerless NE265W-04 Subwoofer

Peerless NE265W-04

4 Ω
10″ Subwoofer
fS26 Hz
SD330 cm²
20 - 800 Hz
QTS0.33
xmax11.7 mm
SPL1W86.6 dB
Bl/√RE6.87
Pmax300 W
Discontinued

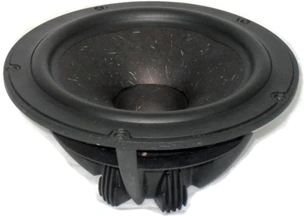

Peerless NE225W-08-HS Subwoofer

Peerless NE225W-08-HS

8 Ω
8″ Subwoofer
fS31.9 Hz
SD227 cm²
20 - 2000 Hz
QTS0.33
xmax7.7 mm
SPL1W88.8 dB
Bl/√RE4.58
Pmax350 W
Peerless GBS-200F35CP02-04 Shallow Subwoofer

Peerless GBS-200F35CP02-04

4 Ω
8″ Shallow Subwoofer
fS42 Hz
SD222 cm²
40 - 600 Hz
QTS0.44
xmax7.8 mm
SPL1W85.5 dB
Bl/√RE6.35
Pmax300 W
Discontinued

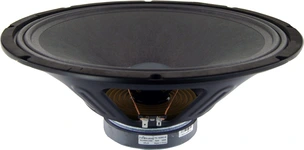

Peerless FSL-1520R02-08 Woofer

Peerless FSL-1520R02-08

8 Ω
15″ Woofer
fS42.7 Hz
SD855 cm²
40 - 400 Hz
QTS0.63
xmax3.3 mm
SPL1W96.2 dB
Bl/√RE4.99
Pmax400 W
