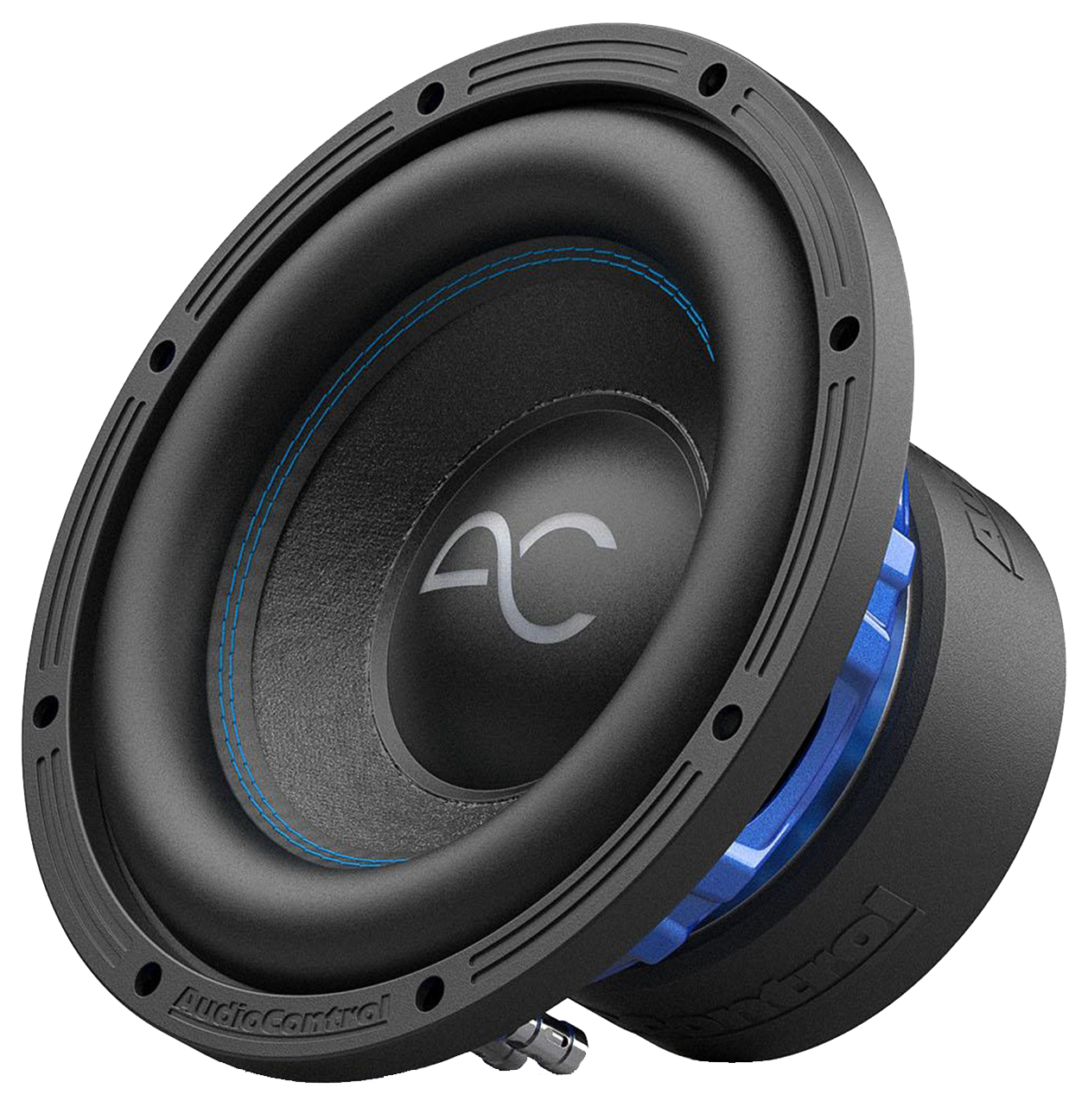

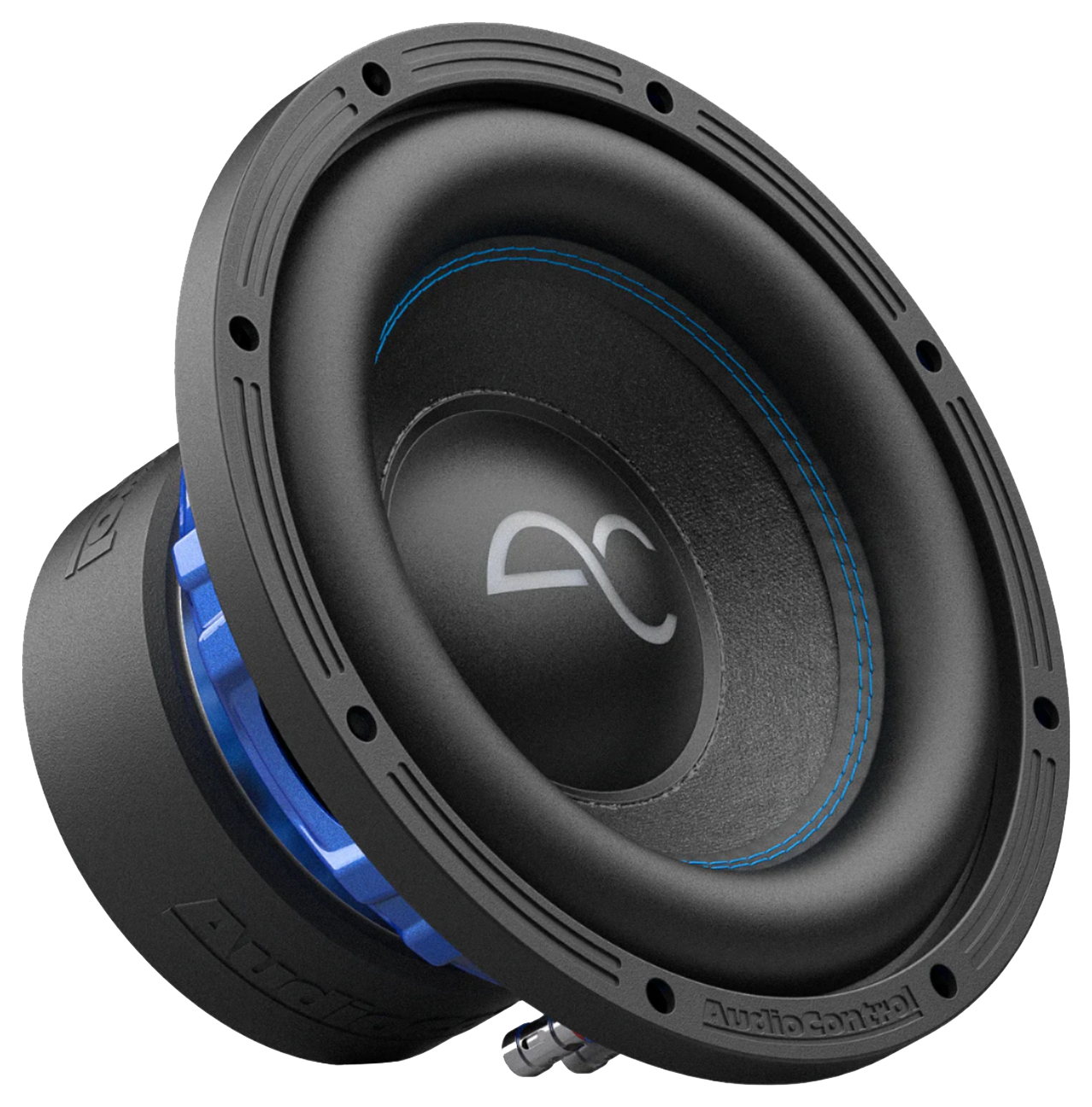

AudioControl Spike SPK-10S4
2Ω
4Ω
Subwoofer
| Nominal diameter | 10″ / 273 mm |
| Resonance | 41.3 Hz |
| Q factor | 0.58 |
| Sensitivity | 84.1 dB |
| Linear excursion | ± 14 mm |
| Program Power | 700 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41.3Hz
- Mechanical quality factor QMS 4.83
- Electrical quality factor QES 0.66
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Air volume displaced at xmax VD 440cm³
- Power handling P 500W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.2Ω
- Inductance (1kHz, estimated) LE 1.98mH
- VC Diameter 63.5mm
Magnet
- Force factor Bl 13.7N/A
- Motor constant Bl/√RE 7.64N/√W
- Diameter 163mm
Diaphragm
- Effective diameter 200mm
- Effective area SD 314cm²
- Moving mass MMS 148g
- Moving mass (without air load) MMD 144g
- Material Fiber matrix paper cone with Mica coating
Suspensions
- Stiffness KMS 9.96N/mm
- Compliance CMS 100µm/N
- Equivalent volume to the compliance VAS 13.8L
- Mechanical resistance RMS 7.96N·s/m
Dimensions
- Nominal diameter 10″
- 273mm
- Overall diameter 273mm
- Baffle cutout diameter 234mm
- Overall depth 168mm
- Flange thickness 15mm
- Mounting depth 135mm
- Volume occupied by the driver 1.77L
