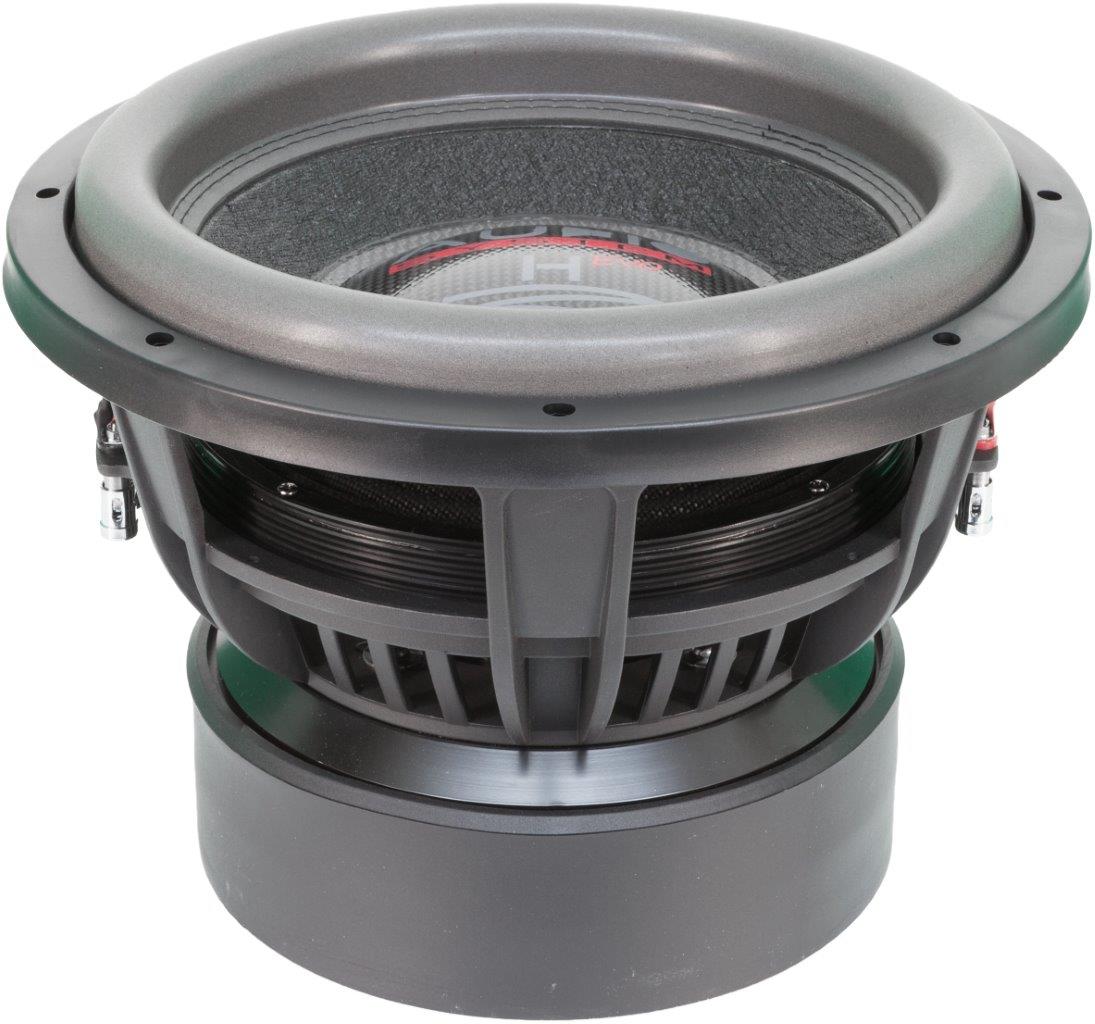

Audio System H 15 EVO
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 396 mm |
| Resonance | 34 Hz |
| Q factor | 0.62 |
| Sensitivity | 89.5 dB |
| Linear excursion | ± 11 mm |
| Program Power | 3000 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.5dB
- Frequency response 24 - 220Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 5.38
- Electrical quality factor QES 0.70
- Total quality factor QTS 0.62
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Air volume displaced at xmax VD 918cm³
- Power handling P 2500W
- Program power Pmax 3000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series, estimated) LE 3.73mH
- VC Diameter 76.2mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 20.8N/A
- Motor constant Bl/√RE 10.7N/√W
- Diameter 226mm
Diaphragm
- Effective diameter 326mm
- Effective area SD 835cm²
- Moving mass MMS 298g
- Moving mass (without air load) MMD 280g
- Material Paper
Suspensions
- Stiffness KMS 16.9N/mm
- Compliance CMS 59µm/N
- Equivalent volume to the compliance VAS 51.8L
- Mechanical resistance RMS 11.8N·s/m
- Surround material Flexyfoam
- Spider material Connex
Dimensions
- Nominal diameter 15″
- 396mm
- Overall diameter 396mm
- Baffle cutout diameter 358mm
- Overall depth 260mm
- Flange thickness 21mm
- Mounting depth 239mm
- Volume occupied by the driver (estimated) 11L
- Net weight 22.8kg
- Frame material Aluminium
