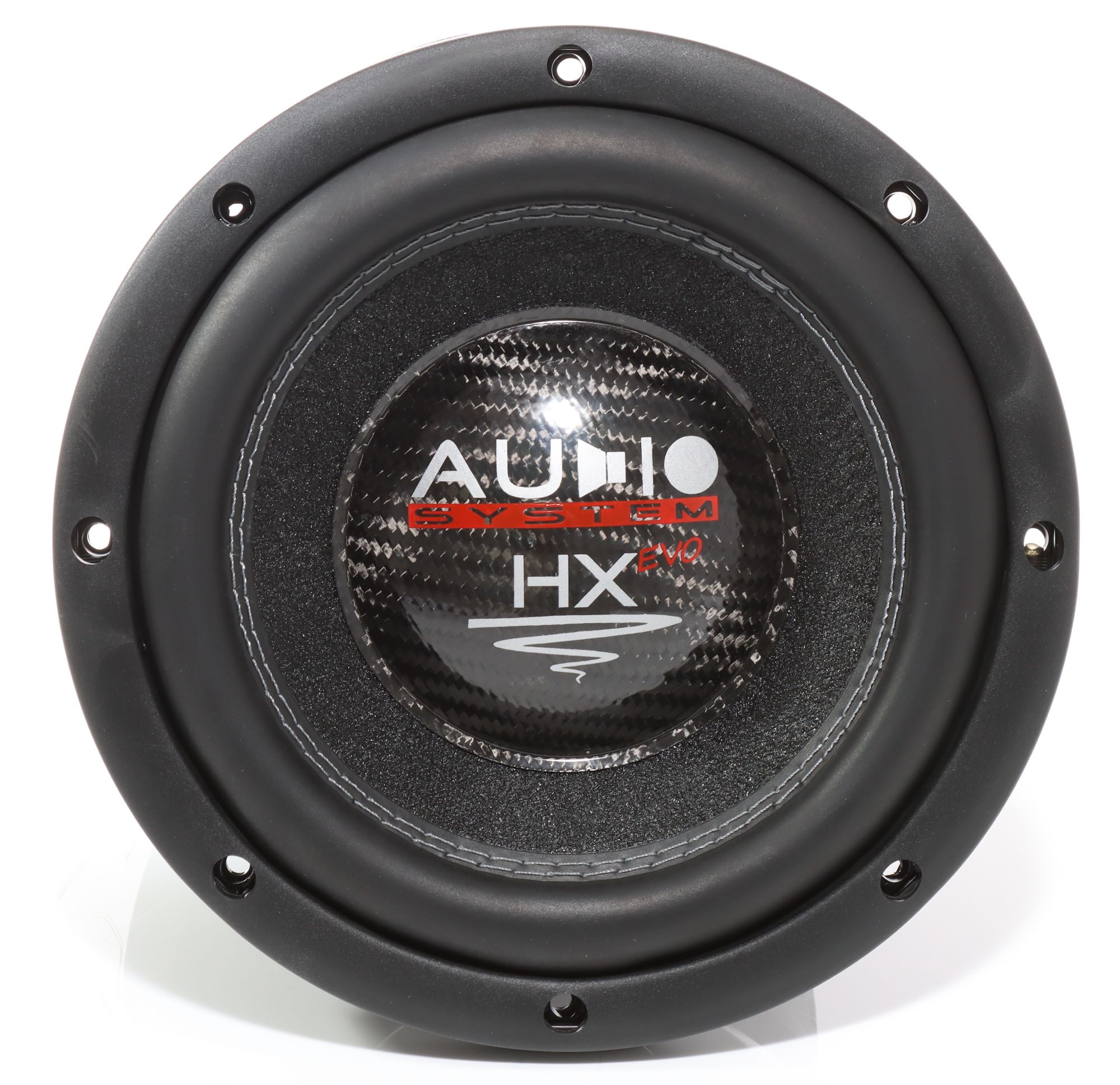

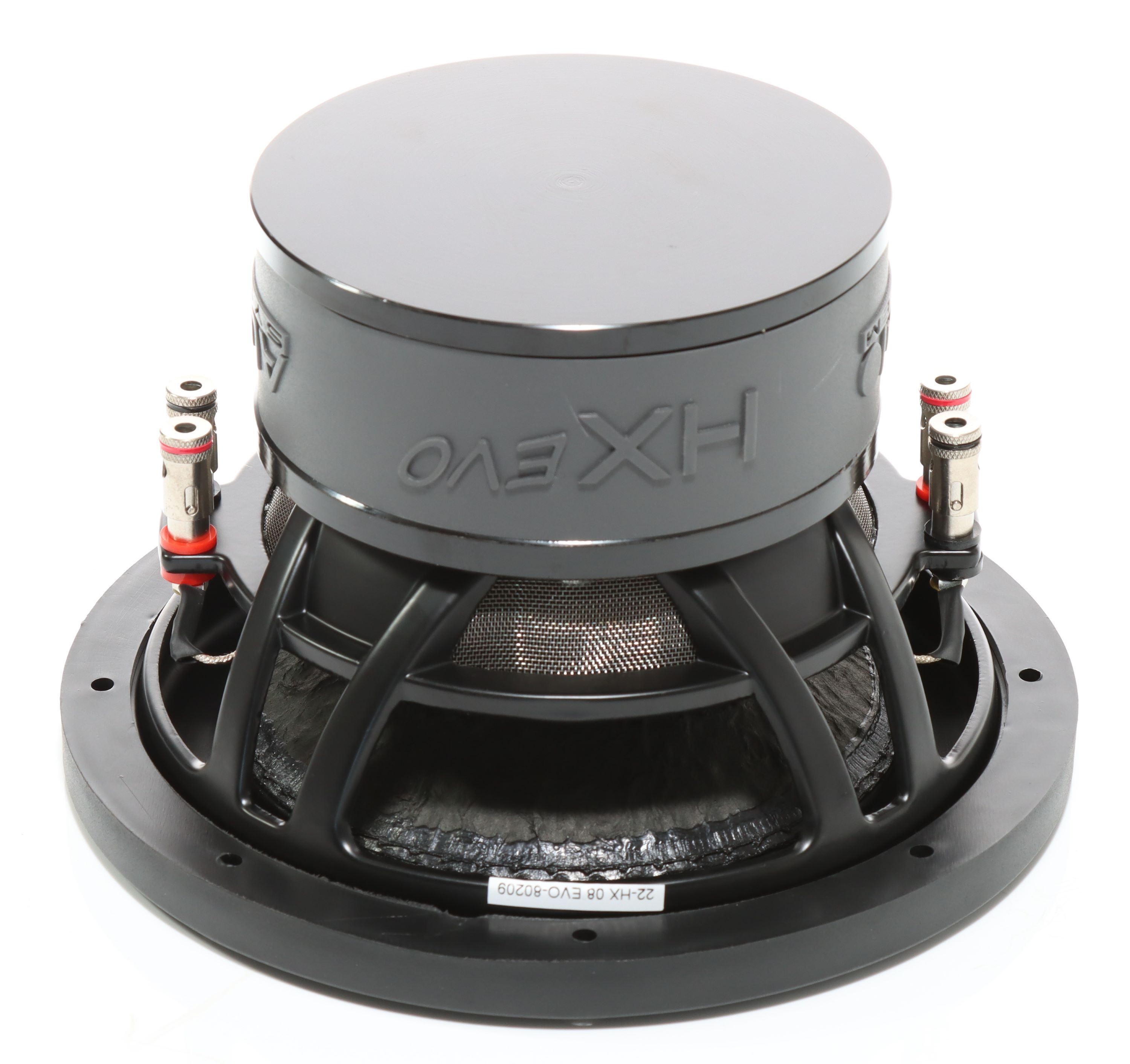

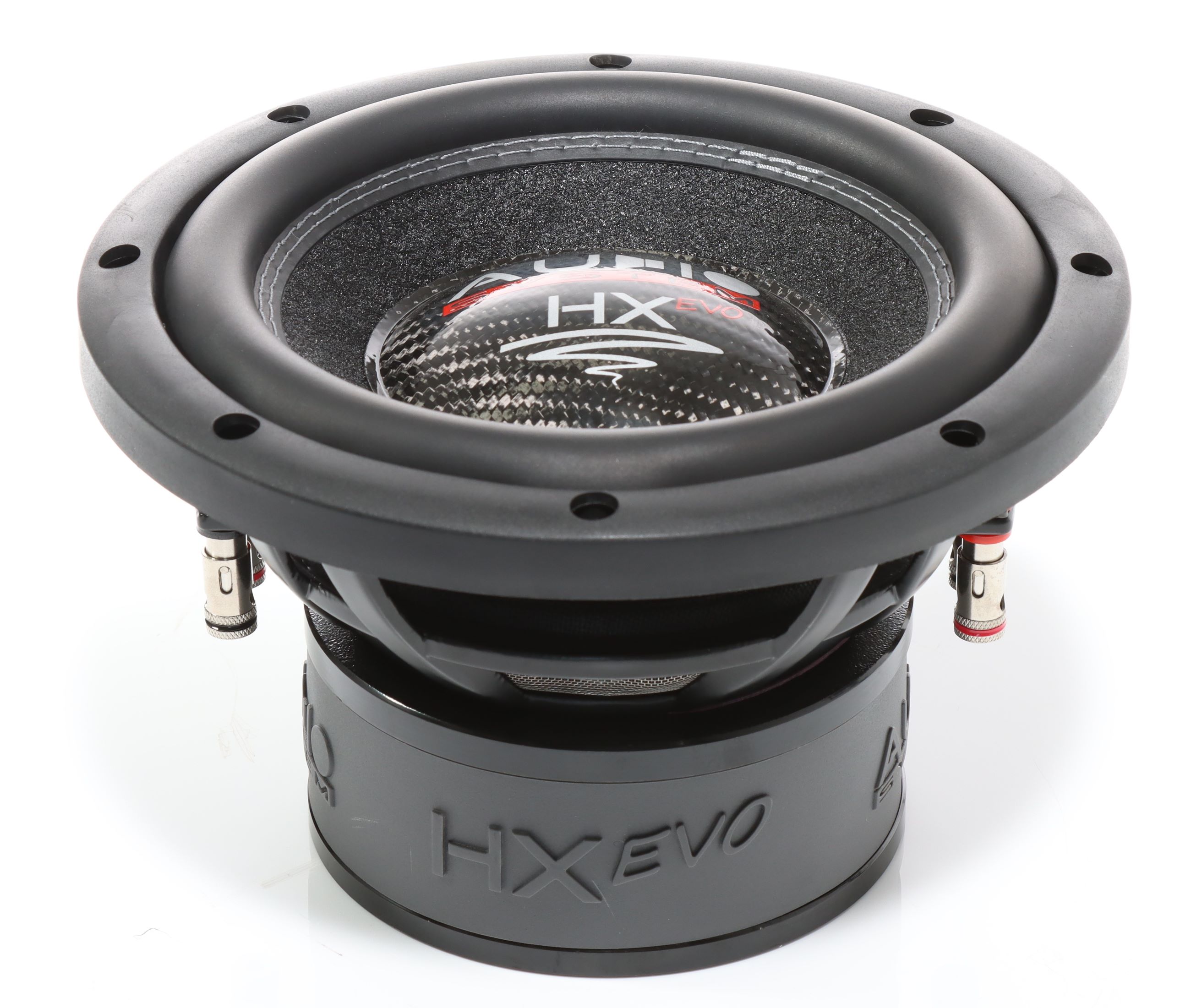

Audio System HX 08 EVO
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 216 mm |
| Resonance | 36 Hz |
| Q factor | 0.52 |
| Sensitivity | 82.1 dB |
| Linear excursion | ± 5 mm |
| Program Power | 350 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.1dB
- Frequency response 30 - 350Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 4.46
- Electrical quality factor QES 0.59
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Air volume displaced at xmax VD 93cm³
- Power handling P 300W
- Program power Pmax 350W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 1.65mH
- VC Diameter 42.6mm
- Former material Kapton
Magnet
- Force factor (in series) Bl 11N/A
- Motor constant Bl/√RE 5.37N/√W
- Diameter 140mm
Diaphragm
- Effective diameter 153mm
- Effective area SD 185cm²
- Moving mass MMS 75g
- Moving mass (without air load) MMD 73g
- Material HPPC Paper
Suspensions
- Stiffness KMS 3.85N/mm
- Compliance CMS 260µm/N
- Equivalent volume to the compliance VAS 11.8L
- Mechanical resistance RMS 3.8N·s/m
- Surround material Elastomer
- Spider material Nomex
Dimensions
- Nominal diameter 8″
- 216mm
- Overall diameter 216mm
- Baffle cutout diameter 185mm
- Overall depth 136mm
- Flange thickness 18mm
- Mounting depth 118mm
- Volume occupied by the driver (estimated) 1.8L
- Net weight 4.8kg
- Frame material Die-Cast
