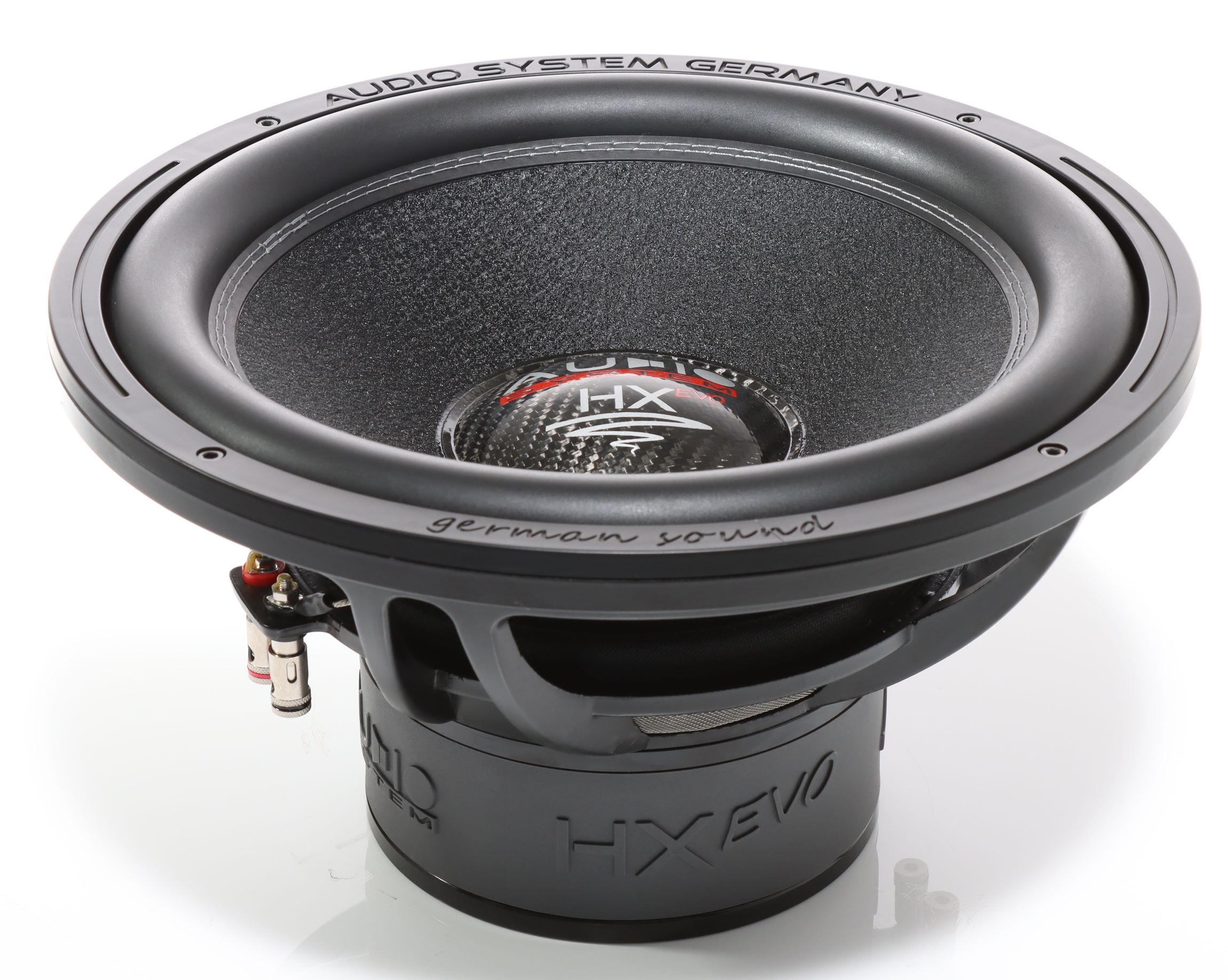

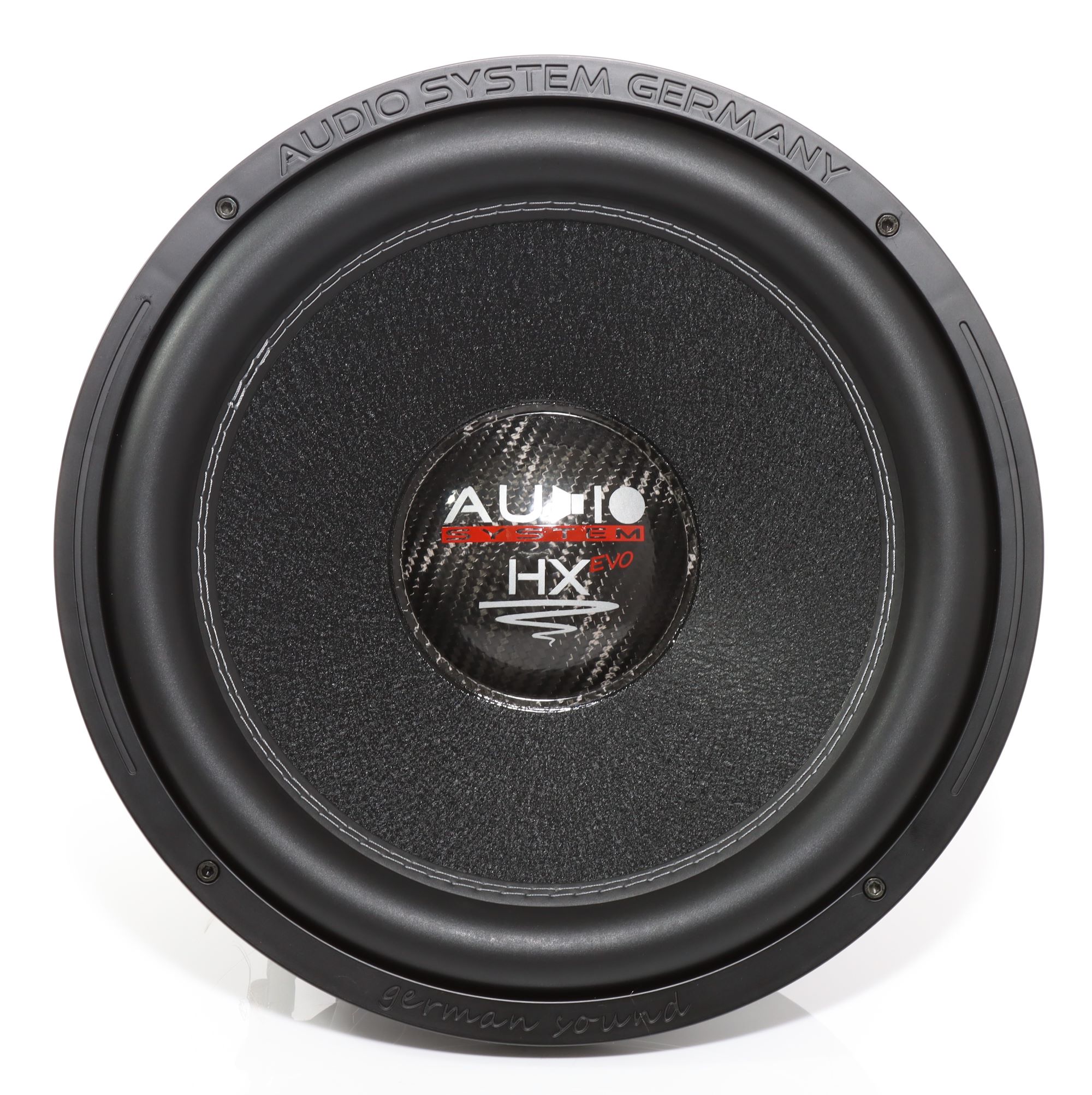

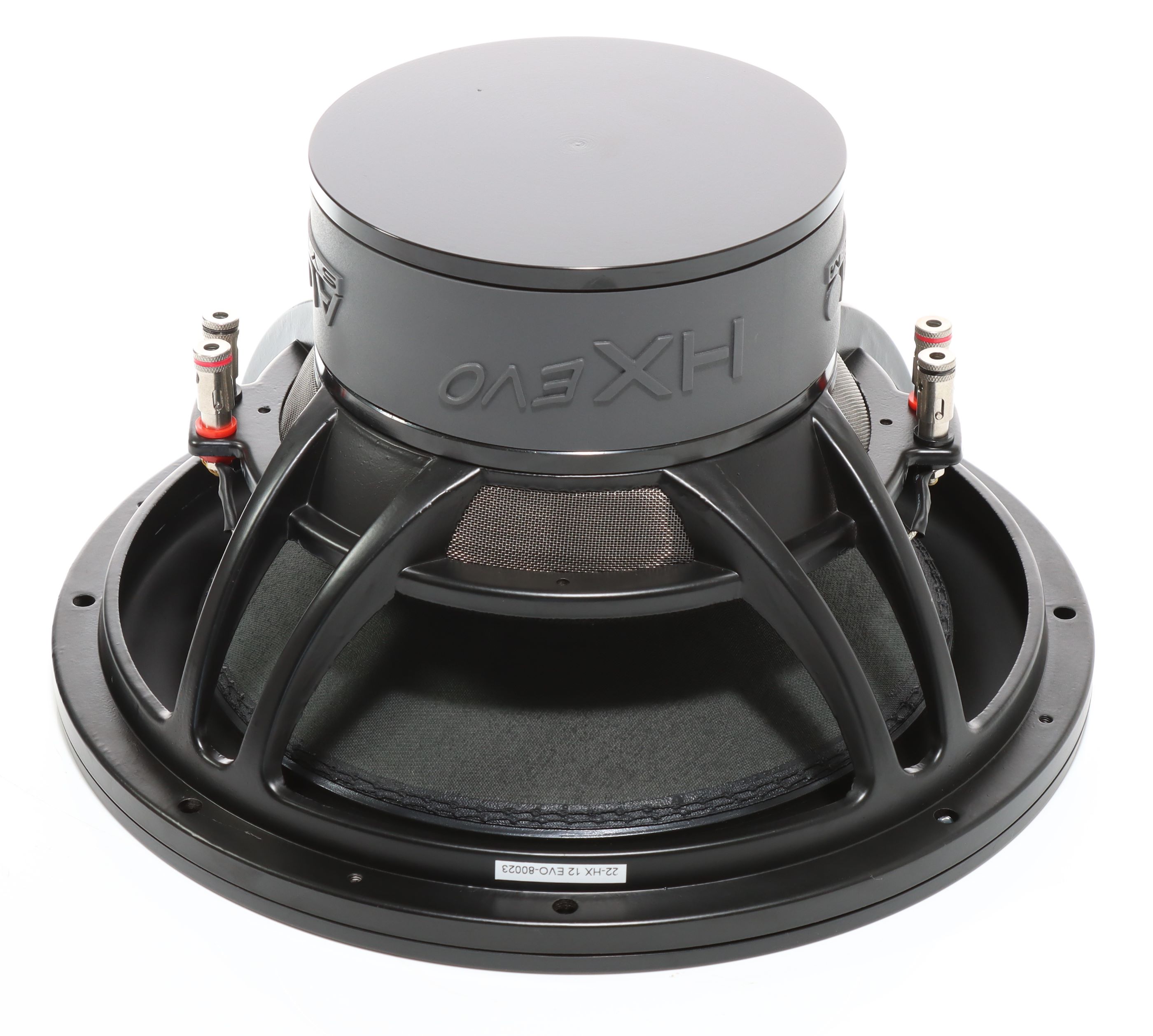

Audio System HX 12 EVO
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 33 Hz |
| Q factor | 0.51 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 6 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
- Frequency response 20 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33Hz
- Mechanical quality factor QMS 3.33
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 261cm³
- Power handling P 500W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 2.56mH
- VC Diameter 54mm
- Former material Kapton
Magnet
- Force factor (in series) Bl 14N/A
- Motor constant Bl/√RE 6.83N/√W
- Diameter 155mm
Diaphragm
- Effective diameter 235mm
- Effective area SD 435cm²
- Moving mass MMS 145g
- Moving mass (without air load) MMD 138g
- Material HPPC-Papier (HPPC Cone)
Suspensions
- Stiffness KMS 5.81N/mm
- Compliance CMS 172µm/N
- Equivalent volume to the compliance VAS 35L
- Mechanical resistance RMS 9.03N·s/m
- Surround material Elastomer
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 312mm
- Baffle cutout diameter 285mm
- Overall depth 177mm
- Flange thickness 22mm
- Mounting depth 155mm
- Volume occupied by the driver (estimated) 4L
- Net weight 9.0kg
- Frame material Druckguss (Die-Cast)
