Audio System M 08 EVO

4Ω

Subwoofer

Nominal diameter	8″ / 200 mm
Resonance	39 Hz
Q factor	0.40
Sensitivity	87.4 dB
Program Power	300 W

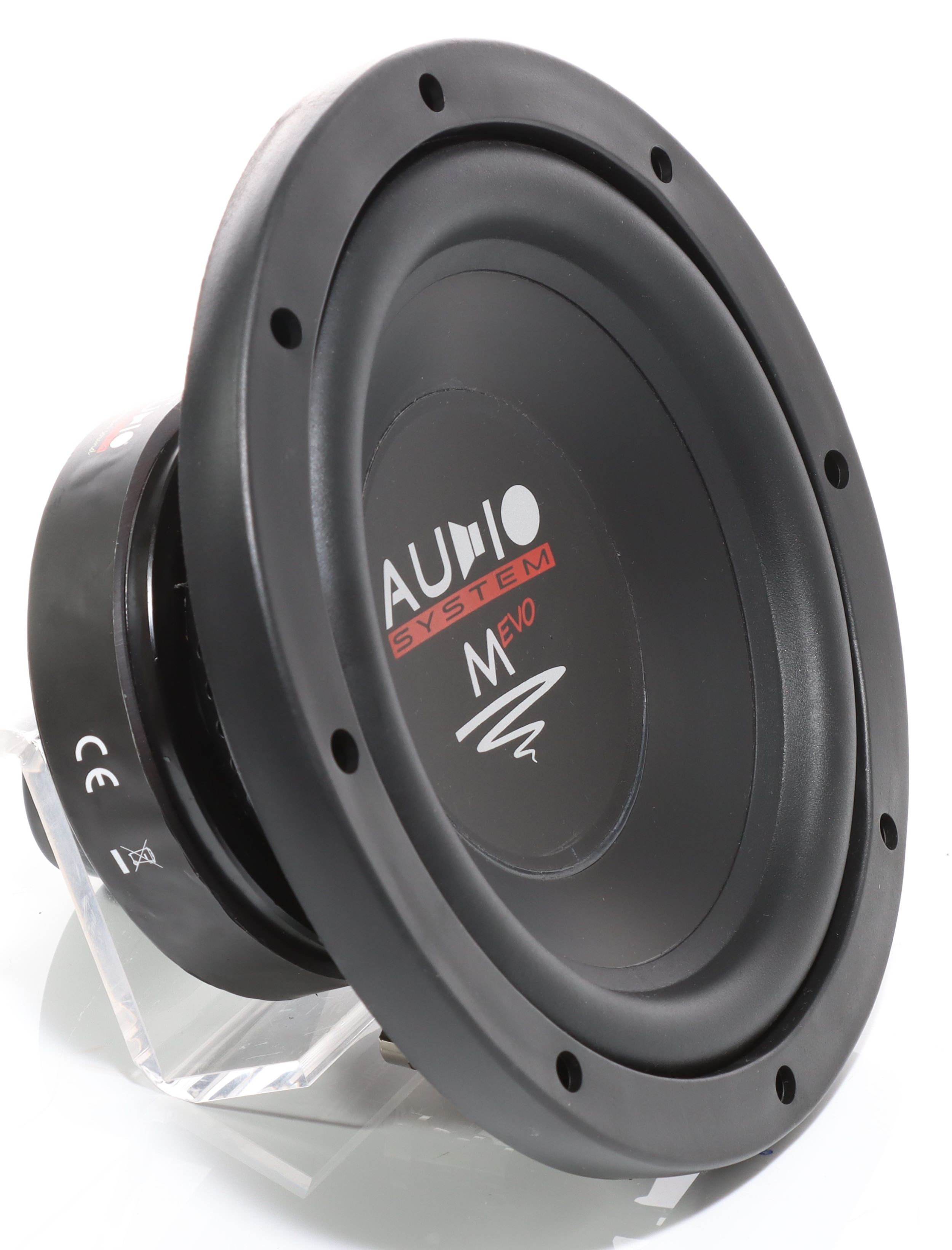

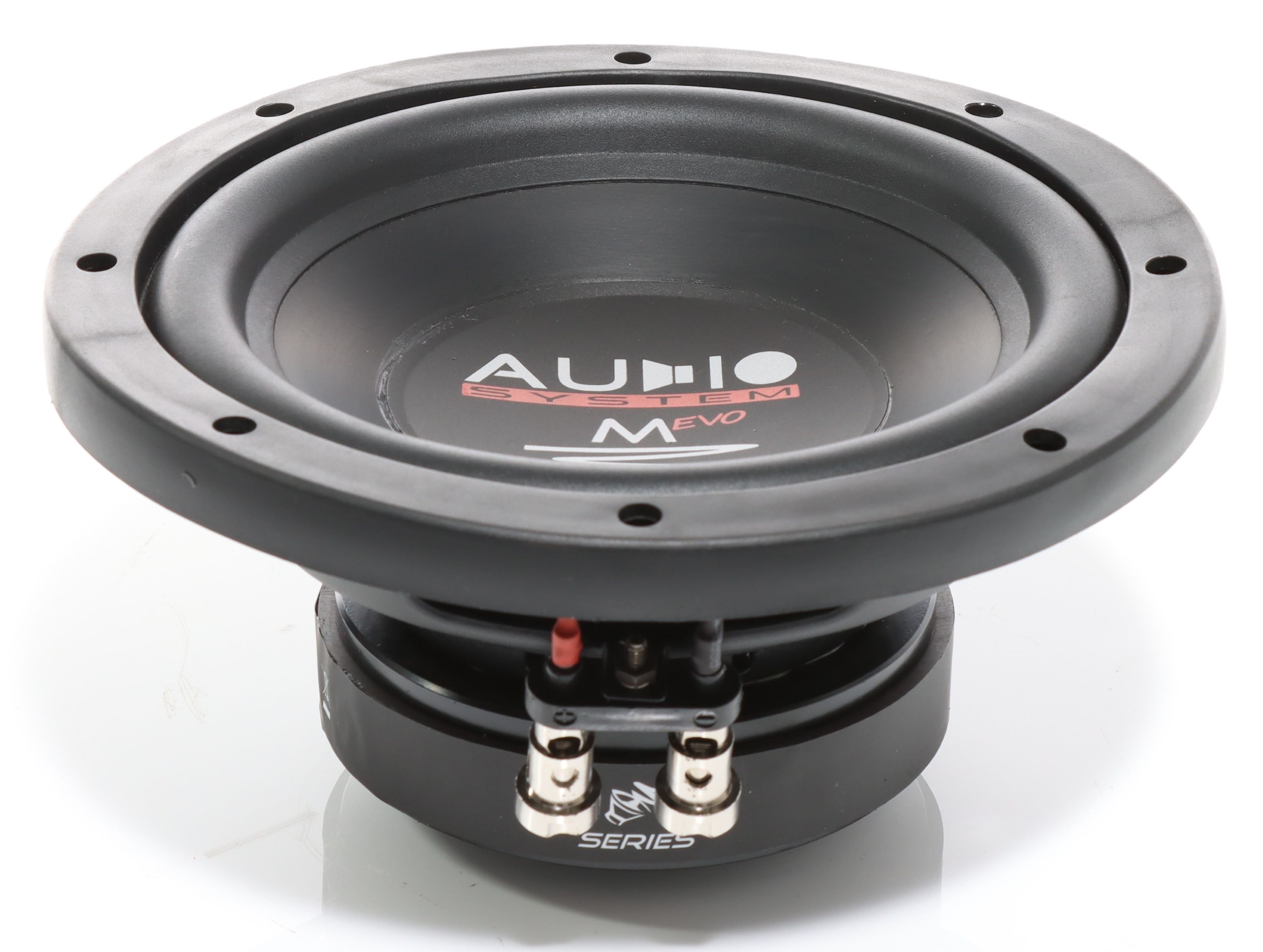

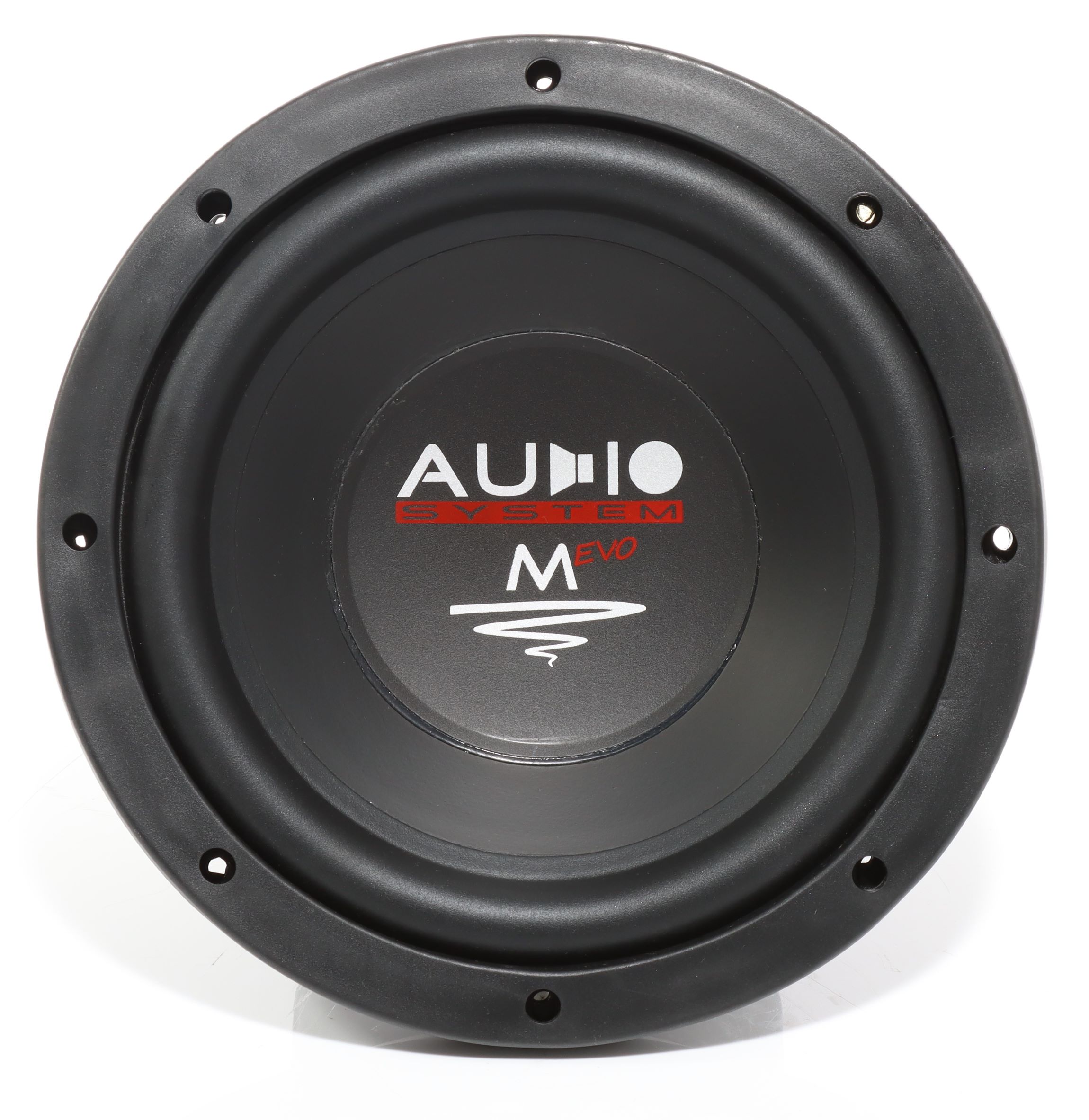

Audio System M 08 EVO Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB
Frequency response 40 - 120Hz

Thiele & Small parameters

Resonance frequency (free air) fS 39Hz
Mechanical quality factor QMS 3.80
Electrical quality factor QES 0.44
Total quality factor QTS 0.40

Large signal parameters

Power handling P 200W
Program power Pmax 300W

Voice Coil

Nominal impedance Z 4Ω
DC resistance RE 3.2Ω
Inductance (1kHz, estimated) LE 0.83mH
Former material Aluminum

Magnet

Force factor Bl 8.5N/A
Motor constant Bl/√RE 4.75N/√W

Diaphragm

Effective diameter 165mm
Effective area SD 215cm²
Moving mass MMS 40g
Moving mass (without air load) MMD 37.6g
Material KPC Paper

Suspensions

Stiffness KMS 2.43N/mm
Compliance CMS 411µm/N
Equivalent volume to the compliance VAS 30L
Mechanical resistance RMS 2.58N·s/m
Surround material Elasthan
Spider material PPTA Connex

Dimensions

Nominal diameter 8″
200mm
Overall diameter 214mm
Baffle cutout diameter 178mm
Volume occupied by the driver (estimated) 0.98L
Frame material Steel
