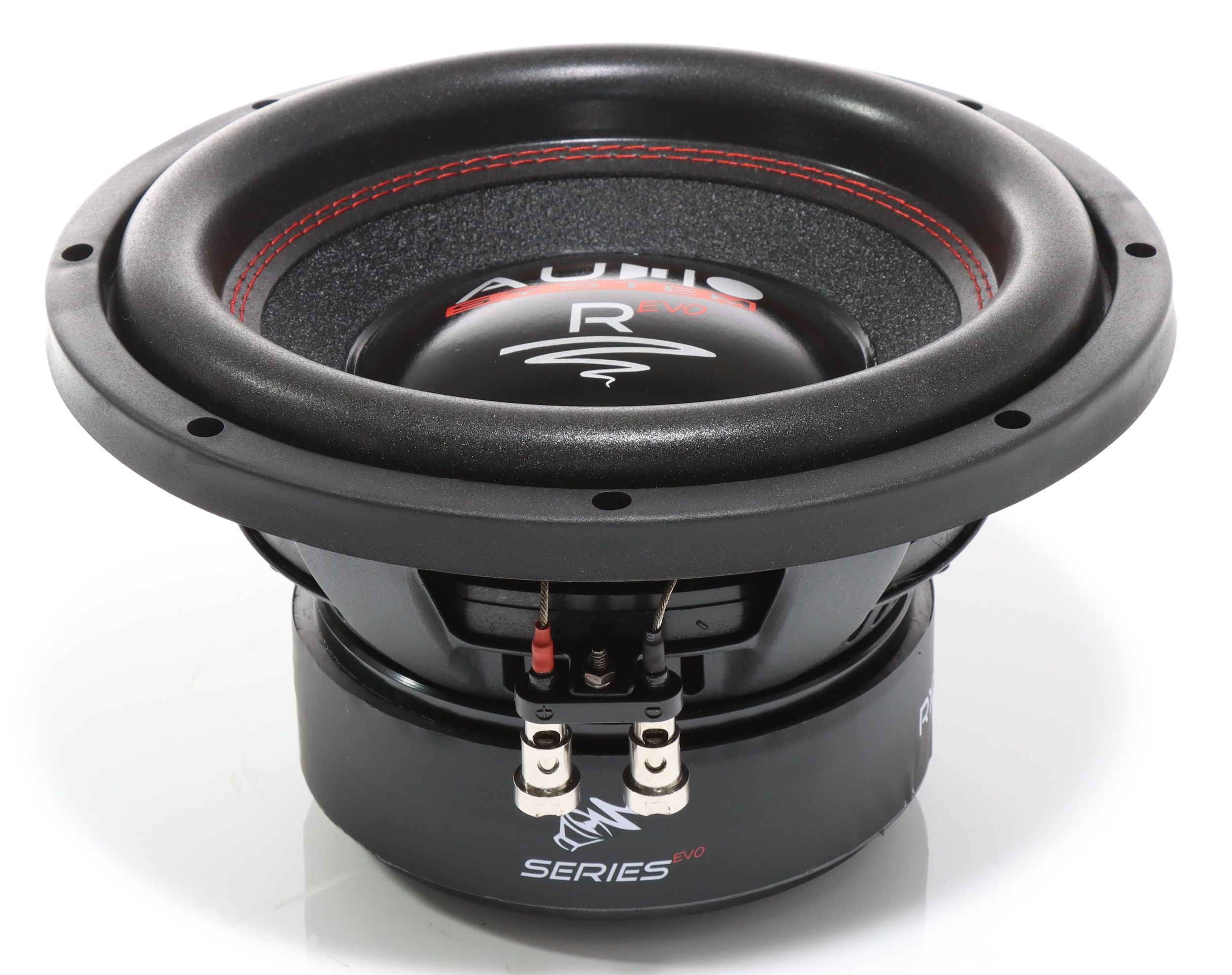

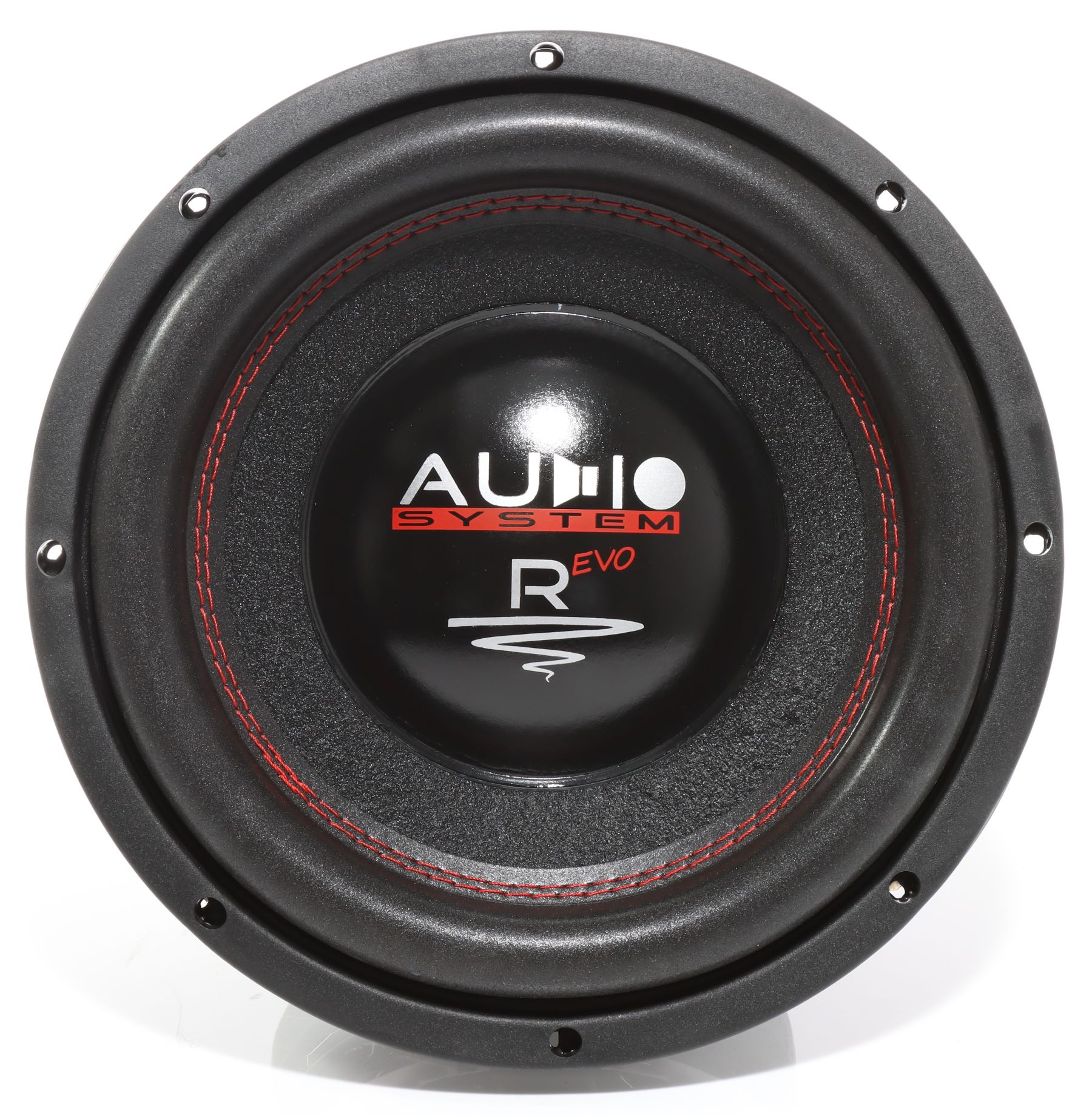

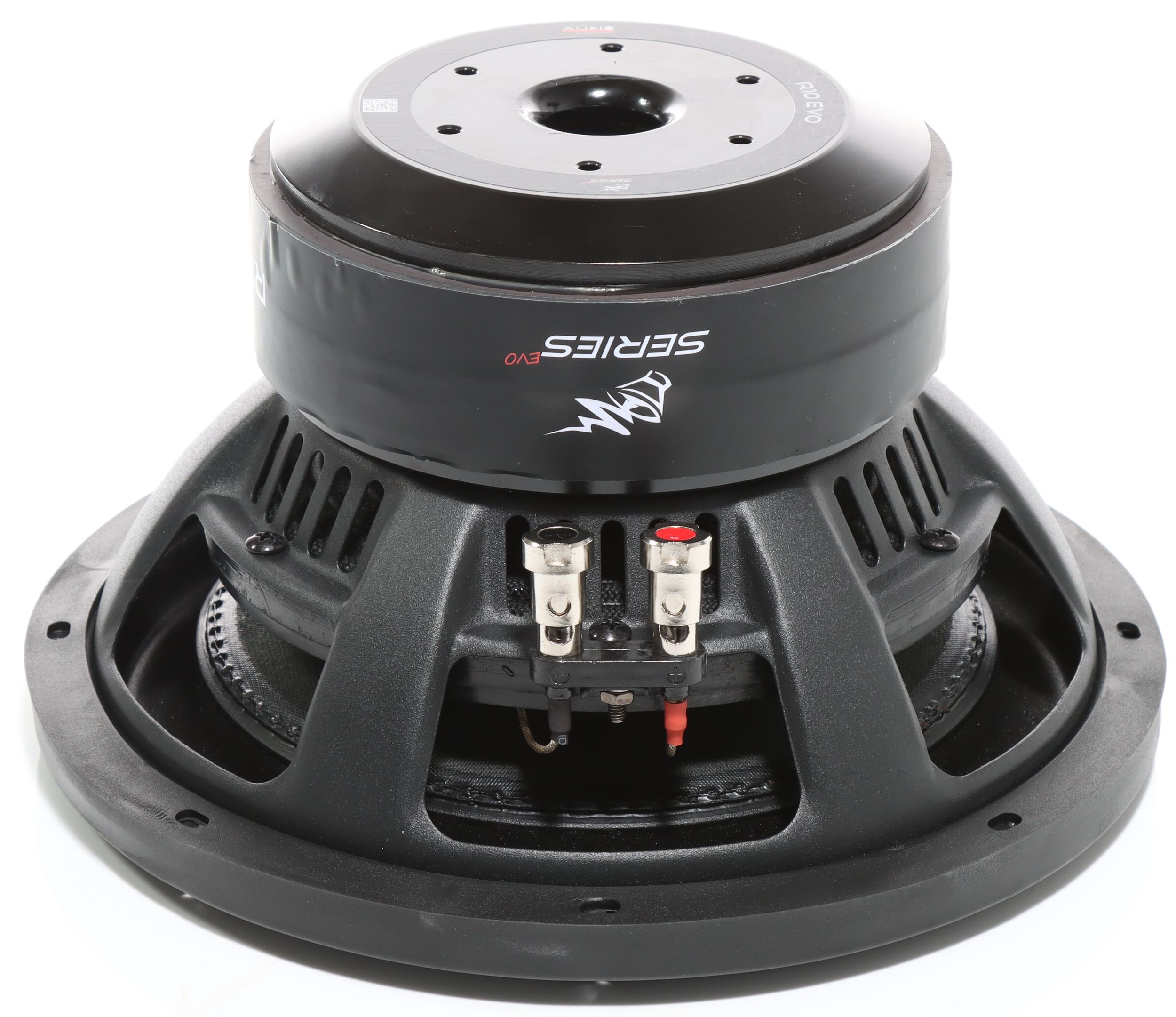

Audio System R 10 EVO
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 34.5 Hz |
| Q factor | 0.52 |
| Sensitivity | 83.9 dB |
| Linear excursion | ± 10.8 mm |
| Program Power | 700 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.9dB
- Frequency response 35 - 120Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34.5Hz
- Mechanical quality factor QMS 6.30
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 10.8mm
- Air volume displaced at xmax VD 398cm³
- Power handling P 400W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.9Ω
- Inductance (1kHz, in series, estimated) LE 3.75mH
- VC Diameter 63.8mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 14.1N/A
- Motor constant Bl/√RE 5.35N/√W
- Diameter 156mm
Diaphragm
- Effective diameter 217mm
- Effective area SD 370cm²
- Moving mass MMS 122g
- Moving mass (without air load) MMD 117g
- Material KPC Paper
Suspensions
- Stiffness KMS 3.47N/mm
- Compliance CMS 288µm/N
- Equivalent volume to the compliance VAS 24.5L
- Mechanical resistance RMS 4.2N·s/m
- Surround material Elasthan
- Spider material PPTA Connex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 262mm
- Baffle cutout diameter 232mm
- Overall depth 146mm
- Flange thickness 16mm
- Mounting depth 130mm
- Volume occupied by the driver (estimated) 2.7L
- Net weight 7.0kg
- Frame material Steel
