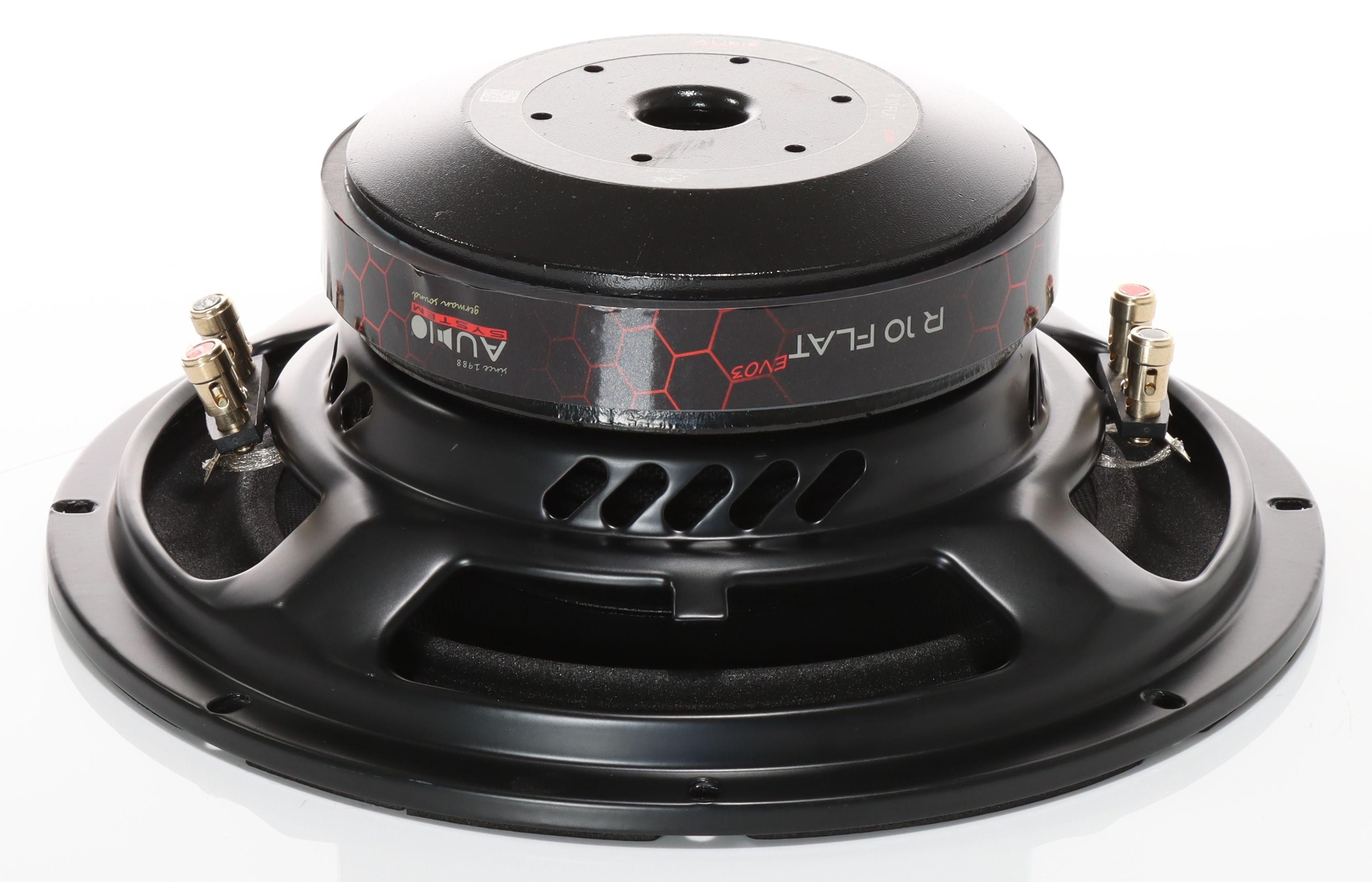

Audio System R 10 FLAT EVO 3-D4
2x4Ω
Shallow Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 36.8 Hz |
| Q factor | 0.44 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 8.8 mm |
| Program Power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB
- Frequency response 35 - 120Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 36.8Hz
- Mechanical quality factor QMS 6.75
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 8.8mm
- Air volume displaced at xmax VD 289cm³
- Power handling P 300W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 2.7mH
- VC Diameter 50mm
- Former material Aluminum
Magnet
- Force factor (in series) Bl 12.8N/A
- Motor constant Bl/√RE 4.77N/√W
- Diameter 145mm
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 70g
- Moving mass (without air load) MMD 65.5g
- Material KPC Paper
Suspensions
- Stiffness KMS 2.48N/mm
- Compliance CMS 404µm/N
- Equivalent volume to the compliance VAS 27L
- Mechanical resistance RMS 2.4N·s/m
- Surround material Elasthan
- Spider material PPTA Connex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 262mm
- Baffle cutout diameter 232mm
- Overall depth 97mm
- Flange thickness 17mm
- Mounting depth 80mm
- Volume occupied by the driver (estimated) 1.5L
- Net weight 4.2kg
- Frame material Steel
