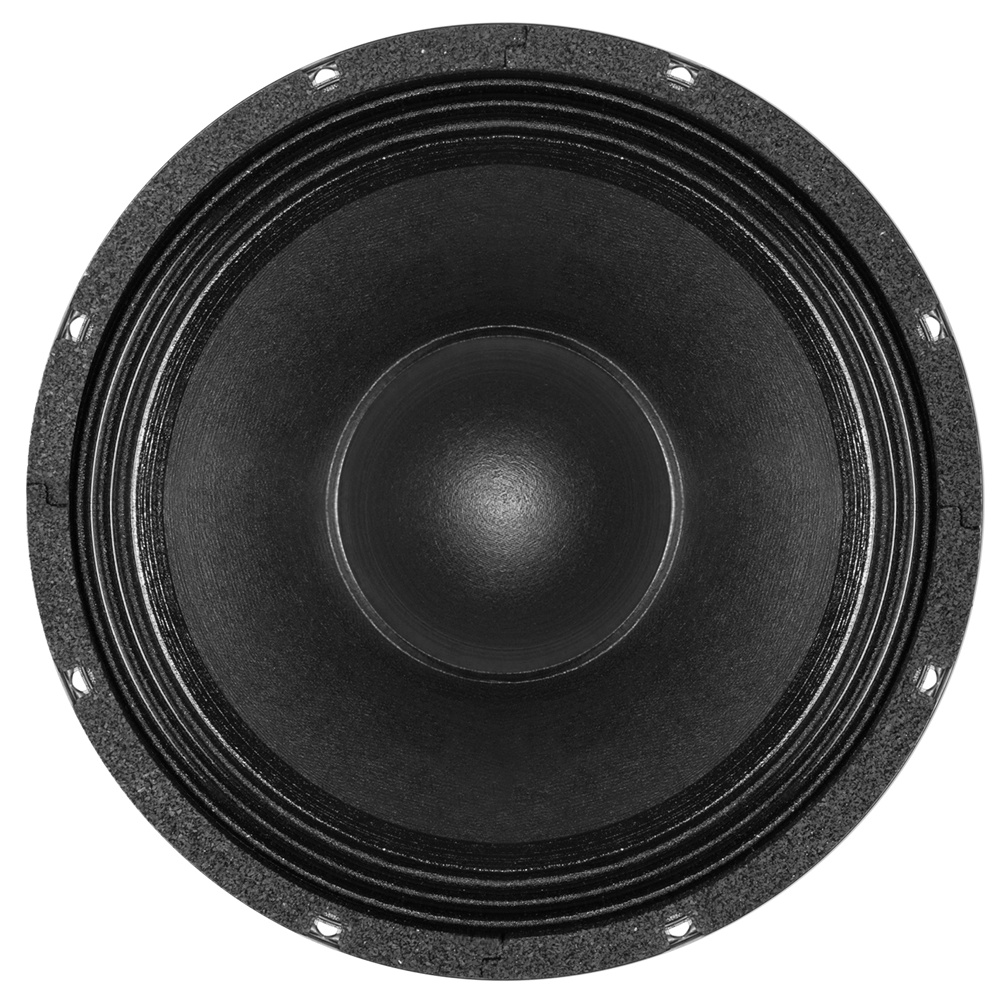

B&C Speaker 12CL76

Name: 12CL76
Brand: B&C Speaker

Woofer

12″ / 320 mm

Nominal diameter

48 Hz

Resonance

0.21

Q factor

96 dB

Sensitivity

± 6 mm

Linear excursion

700 W

Program Power

Parts Express
: $$$
Amazon.com
: $$$
Sensitivity (1W, 1m, infinite baffle)
SPL_1W: 96.0; dB
Frequency response: 45 - 3000; Hz
Resonance frequency (free air)
f_S: 48.0; Hz
Mechanical quality factor
Q_MS: 4.80
Electrical quality factor
Q_ES: 0.22
Total quality factor
Q_TS: 0.21
Maximum linear excursion
x_max: 6.0; mm
Air volume displaced at x_max
V_D: 313; cm³
Power handling
P: 350; W
Program power
P_max: 700; W
Nominal impedance
Z: 8; Ω
DC resistance
R_E: 5.2; Ω
Inductance (1kHz)
L_E: 1.5; mH
VC Diameter: 76; mm
Winding height
H_VC: 17; mm
Winding material: Copper
Former material: Glass Fibre
Flux density
B: 1.05; T
Force factor
Bl: 22.4; N/A
Motor constant
Bl/√R_E: 9.82; N/√W
Air gap height
H_AG: 11; mm
Material: Neodymium Inside Slug
Effective diameter: 258; mm
Effective area
S_D: 522; cm²
Moving mass
M_MS: 70; g
Moving mass (without air load)
M_MD: 61.5; g
Material: Waterproof Front Side
Stiffness
K_MS: 6.41; N/mm
Compliance
C_MS: 156; µm/N
Equivalent volume to the compliance
V_AS: 59; L
Mechanical resistance
R_MS: 4.4; N·s/m
Nominal diameter: 12; ″
: 320; mm
Overall diameter: 313; mm
Baffle cutout diameter: 282; mm
Overall depth: 142; mm
Flange thickness: 9; mm
Mounting depth: 133; mm
Volume occupied by the driver: 2.3; L
Net weight: 3.35; kg

Datasheet
