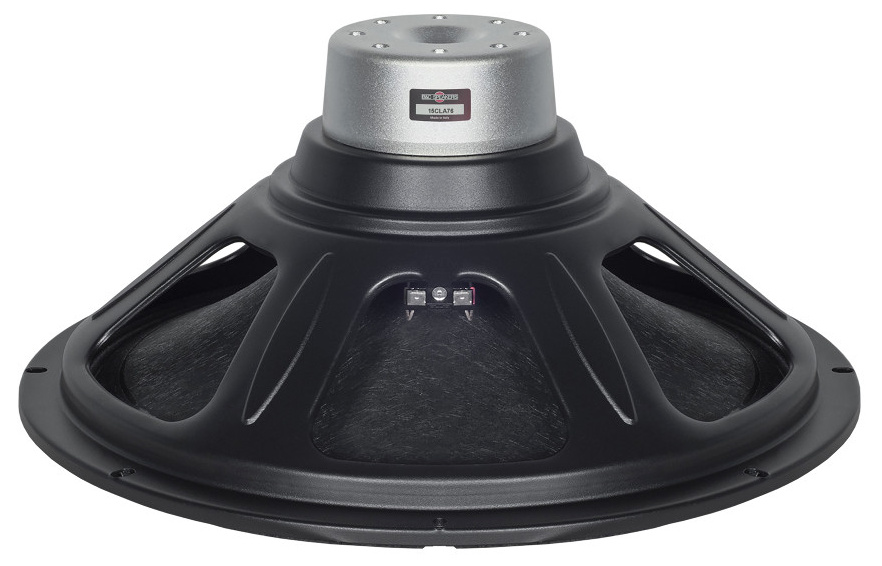

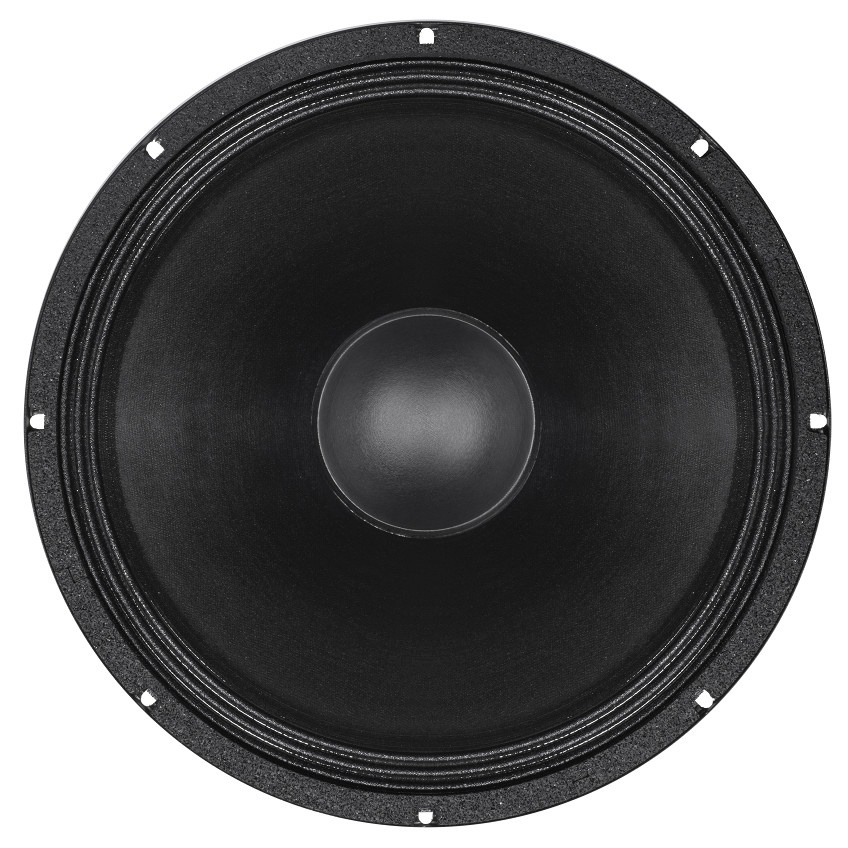

B&C Speaker 15CLA76

Woofer

Nominal diameter15″ / 380 mm
Resonance40 Hz
Q factor0.30
Sensitivity98 dB
Linear excursion± 5.5 mm
Program Power700 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 98dB
  • Frequency response 40 - 3000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 40Hz
  • Mechanical quality factor QMS 6.90
  • Electrical quality factor QES 0.31
  • Total quality factor QTS 0.30

Large signal parameters

  • Maximum linear excursion xmax 5.5mm
  • Air volume displaced at xmax VD 470cm³
  • Power handling P 350W
  • Program power Pmax 700W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 5.2Ω
  • Inductance (1kHz) LE 0.5mH
  • VC Diameter 76mm
  • Winding height HVC 16mm
  • Winding material Aluminium
  • Former material Glass Fibre

Magnet

  • Flux density B 1.2T
  • Force factor Bl 19.8N/A
  • Motor constant Bl/√RE 8.68N/√W
  • Air gap height HAG 11mm
  • Material Neodymium Inside Slug

Diaphragm

  • Effective diameter 330mm
  • Effective area SD 855cm²
  • Moving mass MMS 93g
  • Moving mass (without air load) MMD 75.6g
  • Material Waterproof Front Side

Suspensions

  • Stiffness KMS 5.88N/mm
  • Compliance CMS 170µm/N
  • Equivalent volume to the compliance VAS 176L
  • Mechanical resistance RMS 3.39N·s/m

Dimensions

  • Nominal diameter 15
  • 380mm
  • Overall diameter 388mm
  • Baffle cutout diameter 353mm
  • Overall depth 171mm
  • Flange thickness 10mm
  • Mounting depth 161mm
  • Volume occupied by the driver 4.4L
  • Net weight 3.8kg
B&C Speaker 15CLA76 Impedance
B&C Speaker 15CLA76 SPL
B&C Speaker 15CLA76 Dimensions
