B&C Speaker 15CLX64
8Ω
Coaxial
| Nominal diameter | 15″ / 380 mm |
| Resonance | 37 Hz |
| Q factor | 0.75 |
| Sensitivity | 92.9 dB |
| Linear excursion | ± 5.3 mm |
| Program Power | 500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.9dB
- Frequency response 40 - 17000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37Hz
- Mechanical quality factor QMS 9.40
- Electrical quality factor QES 0.81
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion (one way) xmax 5.3mm
- Air volume displaced at xmax VD 453cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 1.05mH
- VC Diameter 64mm
- Winding height HVC 14.5mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 0.9T
- Force factor Bl 11.5N/A
- Motor constant Bl/√RE 4.9N/√W
- Air gap height HAG 8mm
- Material Neodymium Ring
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 82g
- Moving mass (without air load) MMD 64.6g
- Material Waterproof Front Side
Suspensions
- Stiffness KMS 4.53N/mm
- Compliance CMS 221µm/N
- Equivalent volume to the compliance VAS 227L
- Mechanical resistance RMS 2.03N·s/m

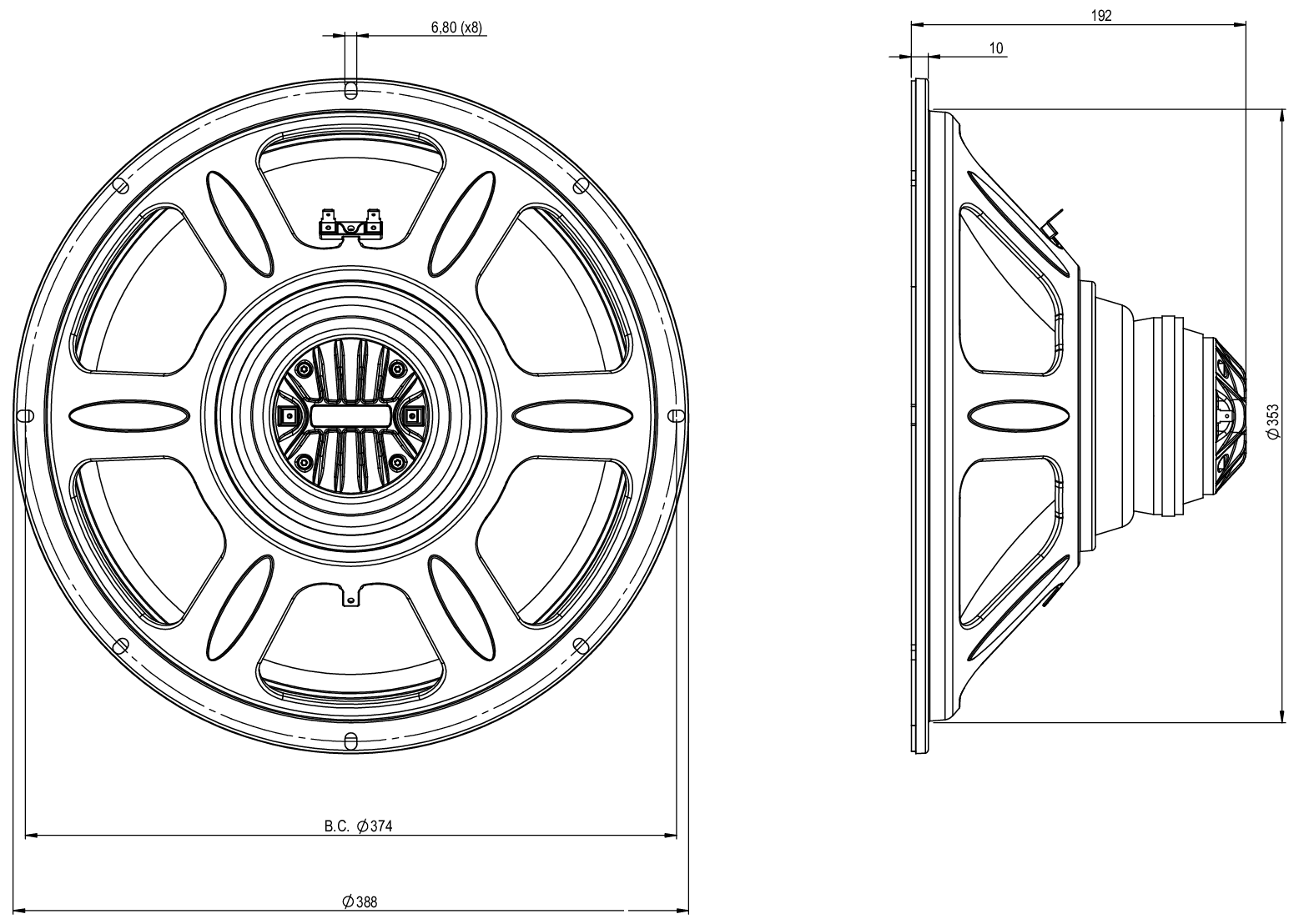

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 388mm
- Baffle cutout diameter 353mm
- Overall depth 192mm
- Flange thickness 10mm
- Mounting depth 182mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 3.8kg
.png)
.png)
.png)
.png)
