Celestion PULSE XL 15.25

Name: PULSE XL 15.25
Brand: Celestion

Bass Guitar Speaker

15″ / 381 mm

Nominal diameter

33 Hz

Resonance

0.6

Q factor

93 dB

Sensitivity

± 8 mm

Linear excursion

1400 W

Program Power

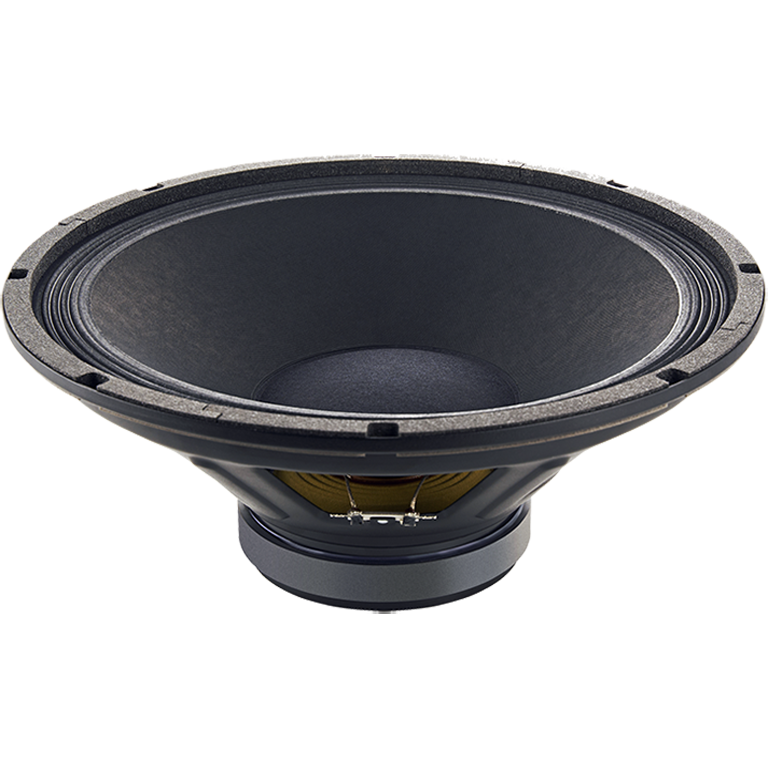

Celestion PULSE XL 15.25 Bass Guitar Speaker

Sensitivity (1W, 1m, infinite baffle)
SPL_1W: 93.1; dB
Frequency response: 35 - 2100; Hz
Resonance frequency (free air)
f_S: 33.1; Hz
Mechanical quality factor
Q_MS: 4.23
Electrical quality factor
Q_ES: 0.53
Total quality factor
Q_TS: 0.60
Maximum linear excursion
x_max: 8.0; mm
Air volume displaced at x_max
V_D: 684; cm³
Power handling
P: 700; W
Program power
P_max: 1400; W
Nominal impedance
Z: 8; Ω
DC resistance
R_E: 6.7; Ω
Inductance (1kHz)
L_E: 1.32; mH
VC Diameter: 64; mm
Winding height
H_VC: 20; mm
Winding material: Copper
Former material: Polyimide
Force factor
Bl: 13.88; N/A
Motor constant
Bl/√R_E: 5.38; N/√W
Air gap height
H_AG: 8; mm
Height: 345; mm
Material: Ferrite
Effective diameter: 330; mm
Effective area
S_D: 855; cm²
Moving mass
M_MS: 85.8; g
Moving mass (without air load)
M_MD: 68.5; g
Material: Cellulose
Stiffness
K_MS: 4.76; N/mm
Compliance
C_MS: 210; µm/N
Equivalent volume to the compliance
V_AS: 214; L
Mechanical resistance
R_MS: 4.22; N·s/m
Surround material: Cloth-sealed
Nominal diameter: 15; ″
: 381; mm
Overall diameter: 385; mm
Baffle cutout diameter: 353; mm
Overall depth: 168; mm
Volume occupied by the driver (estimated): 3.2; L
Net weight: 5.4; kg

Celestion PULSE XL 15.25 SPL & Impedance

Datasheet

Export this driver to a simulation software:

Celestion PULSE XL 15.25

Bass Guitar Speaker

Thiele & Small parameters

Large signal parameters

Voice Coil

Magnet

Diaphragm

Suspensions

Dimensions
