82 results
Nominal diameter
SensitivitySPL1W
dB

Thiele & Small parameters

Resonance frequencyfS
Hz
Mechanical quality factorQMS
Electrical quality factorQES
Total quality factorQTS

Large signal parameters

Maximum linear excursionxmax
mm
Air volume displaced at xmaxVD
cm³
Program powerPmax
W

Voice Coil & Magnet

Nominal impedanceZ
Ω
DC resistanceRE
Ω
Force factorBl
N/A
Motor constantBl/√RE
N/√W
InductanceLE
mH
VC Diameter
mm

Diaphragm

Effective diameter
mm
Effective areaSD
cm²
Moving massMMS
g

Suspensions

StiffnessKMS
N/mm
ComplianceCMS
µm/N
Equivalent volume to CMSVAS
L
Mechanical resistanceRMS
N·s/m

Dimensions

Overall size
mm
Baffle cutout diameter
mm
Overall depth
mm
Mounting depth
mm
Volume occupied
L
Net weight
kg
Celestion TF0512HE Mid Bass
5Mid Bass
fS
85 Hz
SD
79 cm²
55 - 4000 Hz
QTS
0.54
xmax
4.8 mm
SPL1W
88 dB
Bl/√RE
2.88
Pmax
150 W
Celestion TSQ2145 Low frequency
21Low frequency
fS
30 Hz
SD
1662 cm²
30 - 1000 Hz
QTS
0.34
xmax
15.0 mm
SPL1W
94 dB
Bl/√RE
15
Pmax
3600 W
Celestion TSQ1845 Low frequency
18Low frequency
fS
35 Hz
SD
1134 cm²
30 - 1000 Hz
QTS
0.29
xmax
15.0 mm
SPL1W
94 dB
Bl/√RE
15
Pmax
3600 W
Celestion TFX0515 Coaxial
5Coaxial
fS
74 Hz
SD
95 cm²
80 - 20000 Hz
QTS
0.47
xmax
3.8 mm
SPL1W
89 dB
Bl/√RE
2.9
Pmax
300 W
Celestion TFX0412 Coaxial
4Coaxial
fS
95 Hz
SD
57 cm²
90 - 20000 Hz
QTS
0.59
xmax
4.0 mm
SPL1W
87 dB
Bl/√RE
2.28
Pmax
200 W
Celestion PowerProX18 Low frequency
18Low frequency
fS
35 Hz
SD
1210 cm²
35 - 1000 Hz
QTS
0.38
xmax
9.6 mm
SPL1W
94 dB
Bl/√RE
11
Pmax
2400 W
Celestion F12M-150 Guitar Speaker
12Guitar Speaker
fS
69 Hz
SD
529 cm²
60 - 12000 Hz
QTS
0.91
SPL1W
95 dB
Bl/√RE
4.43
Pmax
300 W
Celestion F12-X200 Guitar Speaker
12Guitar Speaker
fS
70 Hz
SD
569 cm²
60 - 20000 Hz
QTS
0.78
SPL1W
96 dB
Bl/√RE
5.14
Pmax
400 W
Celestion CF1025BMB Low frequency
10Low frequency
fS
41 Hz
SD
346 cm²
45 - 5000 Hz
QTS
0.36
xmax
6.7 mm
SPL1W
91 dB
Bl/√RE
6.22
Pmax
600 W
Celestion TN1230 Low frequency
12Low frequency
fS
47 Hz
SD
531 cm²
50 - 4500 Hz
QTS
0.35
xmax
3.8 mm
SPL1W
94 dB
Bl/√RE
7.52
Pmax
700 W
Celestion TFX0615 Coaxial
6.5Coaxial
fS
97 Hz
SD
154 cm²
100 - 20000 Hz
QTS
0.38
xmax
5.3 mm
SPL1W
93 dB
Bl/√RE
4.23
Pmax
300 W
Celestion TF1830 Low frequency
18Low frequency
fS
36 Hz
SD
1134 cm²
35 - 1000 Hz
QTS
0.39
xmax
4.5 mm
SPL1W
94 dB
Bl/√RE
9.62
Pmax
1000 W
Celestion TF1530e Low frequency
15Low frequency
fS
44 Hz
SD
855 cm²
40 - 3000 Hz
QTS
0.33
xmax
6.5 mm
SPL1W
98 dB
Bl/√RE
7.27
Pmax
800 W

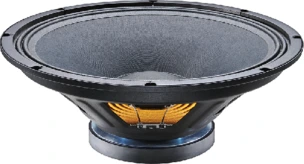

Celestion TF1530 Low frequency
15Low frequency
fS
42 Hz
SD
855 cm²
40 - 3000 Hz
QTS
0.28
xmax
4.0 mm
SPL1W
97 dB
Bl/√RE
8.8
Pmax
800 W
Celestion TF1525e Low frequency
15Low frequency
fS
48 Hz
SD
855 cm²
45 - 3500 Hz
QTS
0.47
xmax
5.3 mm
SPL1W
96 dB
Bl/√RE
6.81
Pmax
600 W
Celestion TF1525 Low frequency
15Low frequency
fS
48 Hz
SD
855 cm²
40 - 3000 Hz
QTS
0.49
xmax
4.5 mm
SPL1W
96 dB
Bl/√RE
6.42
Pmax
500 W
Celestion TF1230SL Low frequency
12Low frequency
fS
57 Hz
SD
531 cm²
50 - 4000 Hz
QTS
0.39
xmax
6.0 mm
SPL1W
95 dB
Bl/√RE
6.9
Pmax
700 W
Celestion TF1230S Low frequency
12Low frequency
fS
60 Hz
SD
531 cm²
50 - 4000 Hz
QTS
0.37
xmax
4.5 mm
SPL1W
96 dB
Bl/√RE
6.77
Pmax
600 W
Celestion TF1225e Low frequency
12Low frequency
fS
53 Hz
SD
531 cm²
50 - 3000 Hz
QTS
0.33
xmax
5.3 mm
SPL1W
95 dB
Bl/√RE
6.97
Pmax
600 W
Celestion TF1225CX Coaxial
12Coaxial
fS
64 Hz
SD
531 cm²
40 - 18000 Hz
QTS
0.36
xmax
4.5 mm
SPL1W
96 dB
Bl/√RE
7.4
Pmax
500 W
Celestion TF1225 Low frequency
12Low frequency
fS
56 Hz
SD
531 cm²
50 - 4000 Hz
QTS
0.37
xmax
4.5 mm
SPL1W
95 dB
Bl/√RE
6.35
Pmax
500 W
Celestion TF1220 Low frequency
12Low frequency
fS
56 Hz
SD
531 cm²
60 - 4000 Hz
QTS
0.39
xmax
4.0 mm
SPL1W
96 dB
Bl/√RE
5.95
Pmax
300 W
Celestion TF1020 Low frequency
10Low frequency
fS
69 Hz
SD
346 cm²
60 - 5500 Hz
QTS
0.32
xmax
4.0 mm
SPL1W
95 dB
Bl/√RE
6.04
Pmax
300 W
Celestion TF0818 Low frequency
8Low frequency
fS
100 Hz
SD
227 cm²
70 - 6000 Hz
QTS
0.43
xmax
5.0 mm
SPL1W
94 dB
Bl/√RE
5.0
Pmax
200 W
Celestion TF0615 Low frequency
6Low frequency
fS
105 Hz
SD
154 cm²
85 - 6000 Hz
QTS
0.61
xmax
1.8 mm
SPL1W
92 dB
Bl/√RE
3.33
Pmax
200 W
Celestion TF0510 Low frequency
5Low frequency
fS
128 Hz
SD
79 cm²
130 - 8000 Hz
QTS
0.58
xmax
2.4 mm
SPL1W
89 dB
Bl/√RE
2.71
Pmax
60 W
Celestion PULSE15 Bass Guitar Speaker
15Bass Guitar Speaker
fS
35 Hz
SD
855 cm²
40 - 3500 Hz
QTS
0.43
xmax
4.8 mm
SPL1W
95 dB
Bl/√RE
6.31
Pmax
800 W
Celestion PULSE12 Bass Guitar Speaker
12Bass Guitar Speaker
fS
45 Hz
SD
531 cm²
45 - 3500 Hz
QTS
0.42
xmax
4.0 mm
SPL1W
94 dB
Bl/√RE
5.28
Pmax
400 W
Celestion PULSE10 Bass Guitar Speaker
10Bass Guitar Speaker
fS
66 Hz
SD
346 cm²
45 - 3500 Hz
QTS
0.44
xmax
4.0 mm
SPL1W
94 dB
Bl/√RE
5.21
Pmax
400 W
Celestion NTR08-2011D Low frequency
8Low frequency
fS
85 Hz
SD
227 cm²
70 - 6000 Hz
QTS
0.44
xmax
6.0 mm
SPL1W
92 dB
Bl/√RE
4.98
Pmax
400 W
Celestion NTR08-2009D Low frequency
8Low frequency
fS
71 Hz
SD
227 cm²
70 - 5000 Hz
QTS
0.21
xmax
6.5 mm
SPL1W
94 dB
Bl/√RE
7.69
Pmax
400 W
Celestion NTR06-17X Low frequency
6.5Low frequency
fS
60 Hz
SD
154 cm²
70 - 5000 Hz
QTS
0.32
xmax
4.5 mm
SPL1W
91 dB
Bl/√RE
4.47
Pmax
300 W
Celestion NTR06-1705D Low frequency
6.5Low frequency
fS
49 Hz
SD
154 cm²
70 - 7000 Hz
QTS
0.38
xmax
6.0 mm
SPL1W
90 dB
Bl/√RE
3.56
Pmax
300 W
Celestion NTR06-1705B Low frequency
6.5Low frequency
fS
133 Hz
SD
154 cm²
150 - 7000 Hz
QTS
0.44
xmax
4.0 mm
SPL1W
94 dB
Bl/√RE
4.39
Pmax
300 W
