Celestion TSQ2460

Low frequency

Nominal diameter24″ / 610 mm
Resonance27 Hz
Q factor0.30
Sensitivity97.1 dB
Linear excursion± 18.8 mm
Program Power4800 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 97.1dB
  • Frequency response 20 - 200Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 27Hz
  • Mechanical quality factor QMS 10.89
  • Electrical quality factor QES 0.31
  • Total quality factor QTS 0.30

Large signal parameters

  • Maximum linear excursion xmax 18.8mm
  • Maximum excursion before damage xlim 74mm
  • Air volume displaced at xmax VD 4198cm³
  • Power handling P 2400W
  • Program power Pmax 4800W

Voice Coil

  • Nominal impedance Z 4Ω
  • DC resistance RE 3.2Ω
  • Inductance (1kHz) LE 2.05mH
  • VC Diameter 152mm
  • Winding height HVC 45mm
  • Winding material Round copper
  • Former material Glass fibre

Magnet

  • Force factor Bl 35.2N/A
  • Motor constant Bl/√RE 19.8N/√W
  • Air gap height HAG 15mm
  • Material Neodymium

Diaphragm

  • Effective diameter 534mm
  • Effective area SD 2239cm²
  • Moving mass MMS 717g
  • Moving mass (without air load) MMD 456g
  • Material Glass loaded cellulose, water-resistant

Suspensions

  • Stiffness KMS 17.5N/mm
  • Compliance CMS 48µm/N
  • Equivalent volume to the compliance VAS 345L
  • Mechanical resistance RMS 11.1N·s/m
  • Surround material Triple roll, cloth sealed

Dimensions

  • Nominal diameter 24
  • 610mm
  • Overall diameter 627mm
  • Baffle cutout diameter 571mm
  • Overall depth 280mm
  • Flange thickness 21mm
  • Mounting depth 259mm
  • Volume occupied by the driver (estimated) 15L
  • Net weight 22.0kg
  • Frame material Cast aluminium

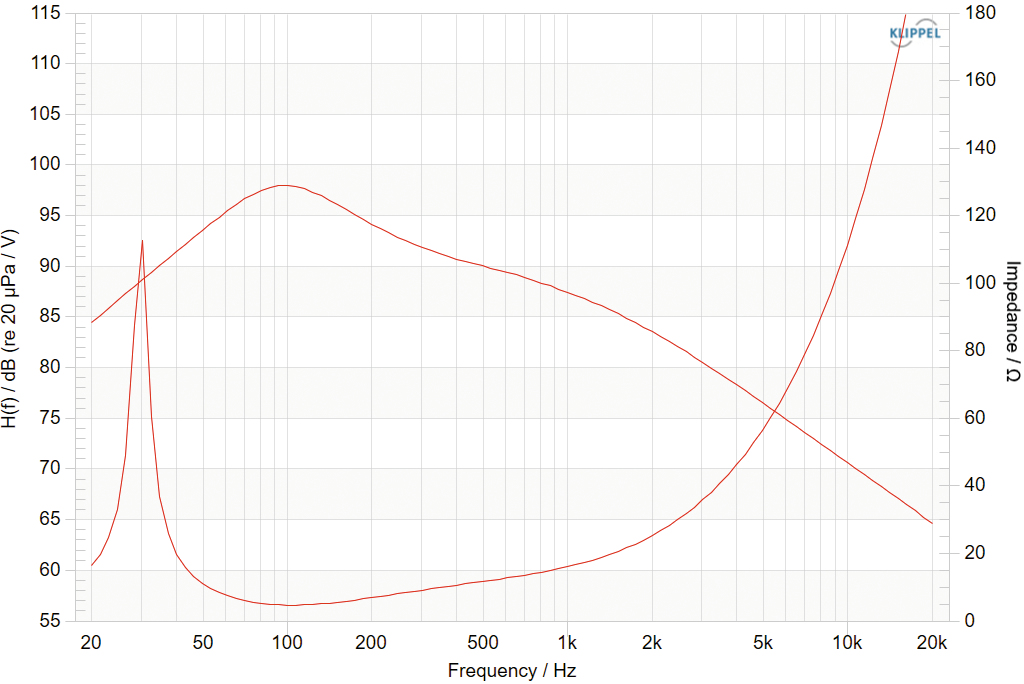

Celestion TSQ2460 SPL & Impedance

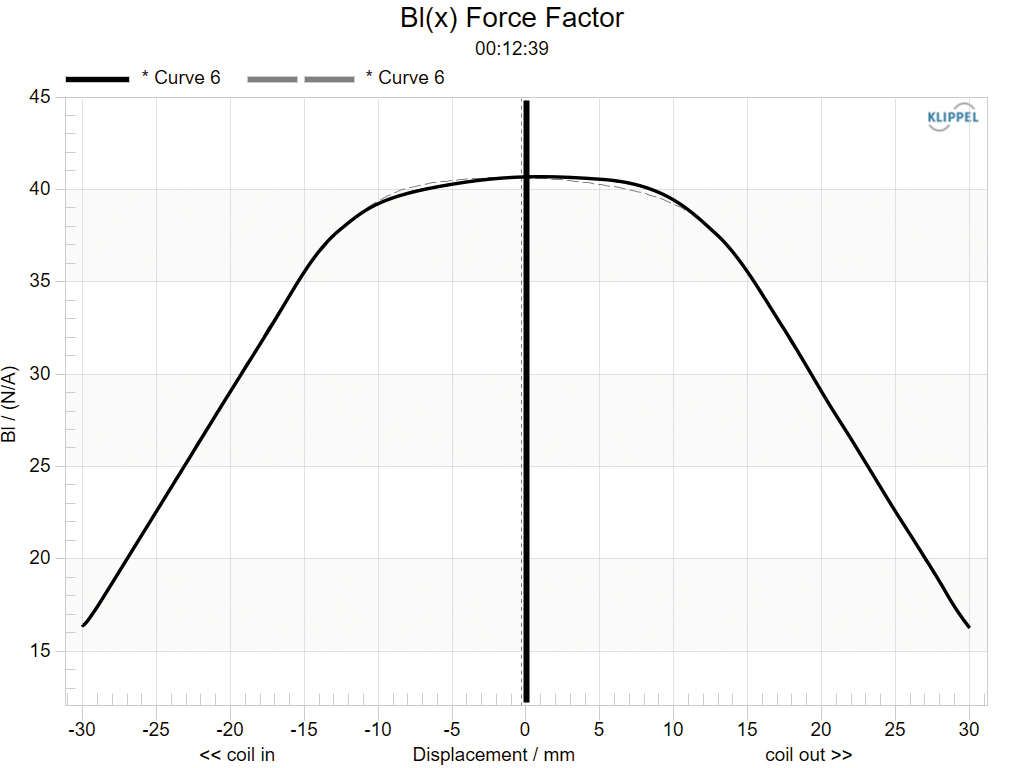

Celestion TSQ2460 Force factor

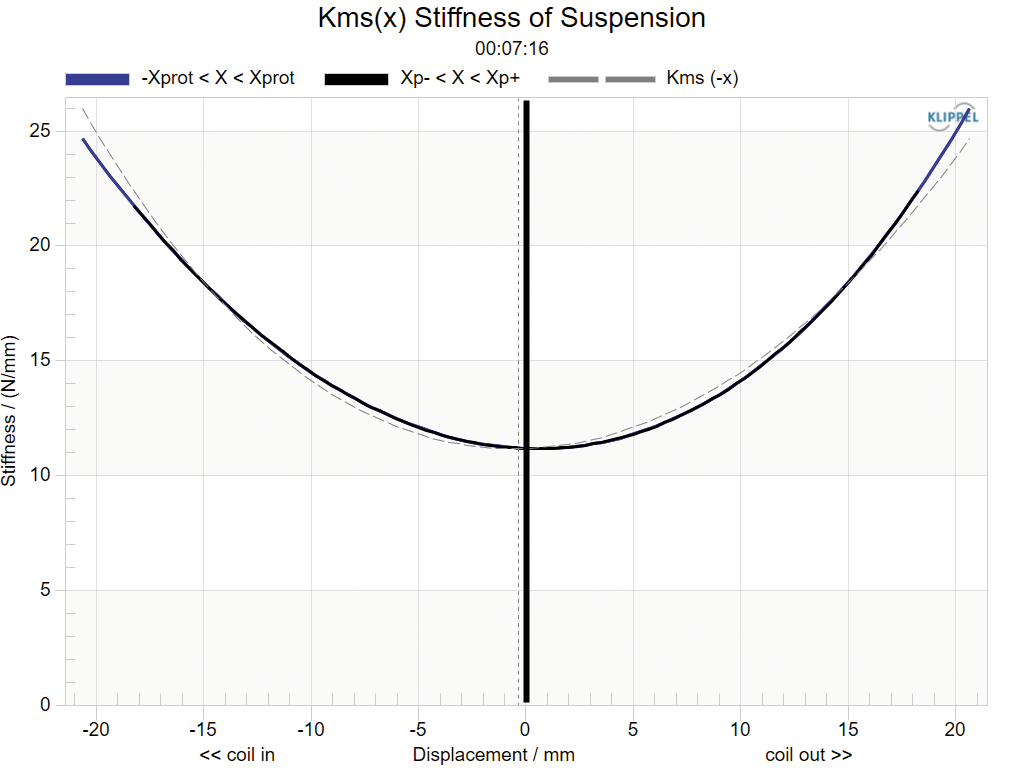

Celestion TSQ2460 Stiffness
