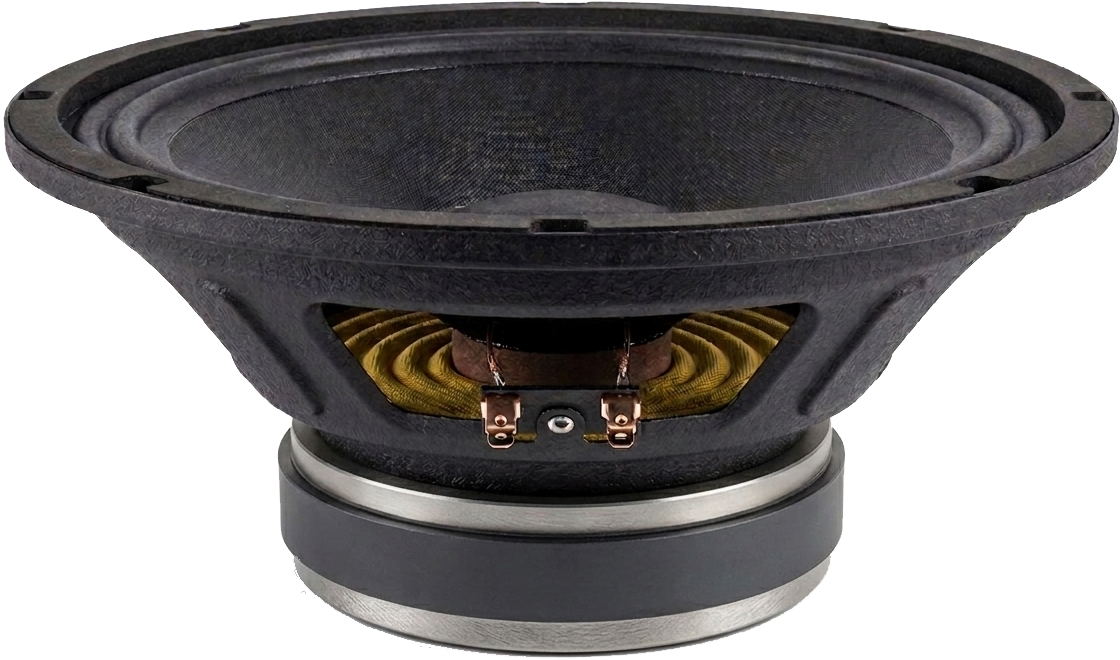

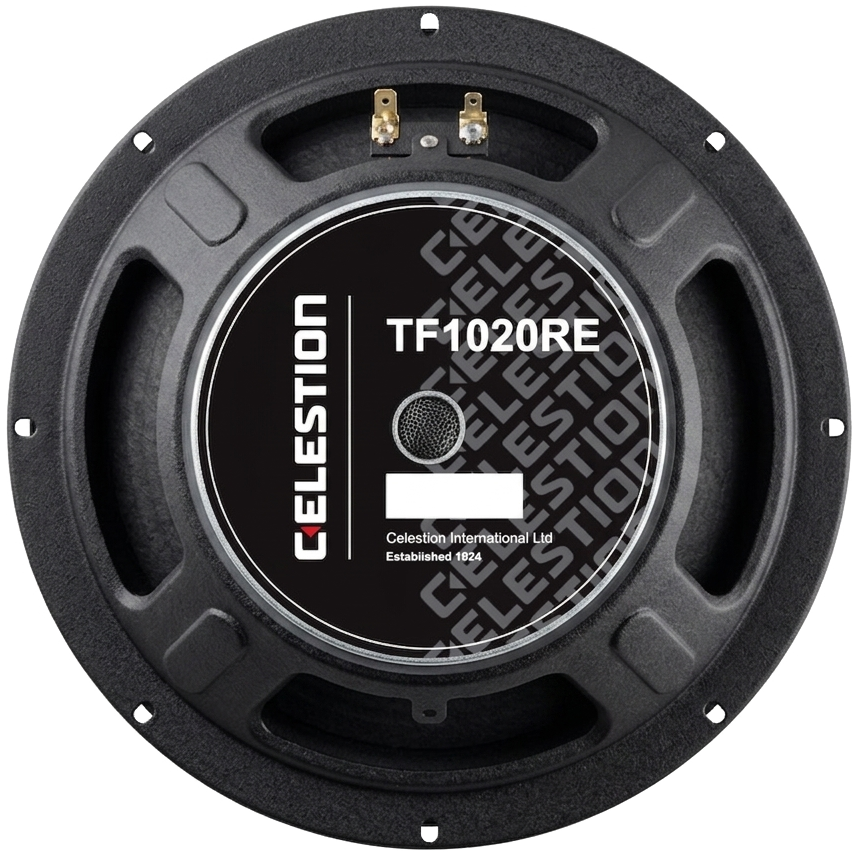

Celestion TF1020RE
8Ω
Low frequency
| Nominal diameter | 10″ / 254 mm |
| Resonance | 52.6 Hz |
| Q factor | 0.39 |
| Sensitivity | 92.9 dB |
| Linear excursion | ± 5.9 mm |
| Program power | 500 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.9dB
- Frequency response 50 - 2000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 52.6Hz
- Mechanical quality factor QMS 2.80
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 5.9mm
- Air volume displaced at xmax VD 204cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.682mH
- VC Diameter 50mm
- Winding height HVC 15mm
- Winding material Round copper
- Former material Polyimide
Magnet
- Force factor Bl 12N/A
- Motor constant Bl/√RE 5.07N/√W
- Air gap height HAG 6.5mm
- Weight 1.1kg
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 35g
- Moving mass MMD 30.3g
- Material Kevlar loaded paper
Suspensions
- Stiffness KMS 3.82N/mm
- Compliance CMS 262µm/N
- Equivalent volume to the compliance VAS 44.5L
- Mechanical resistance RMS 4.13N·s/m
- Surround material Cloth-sealed
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 256mm
- Baffle cutout diameter 229mm
- Overall depth 113mm
- Volume occupied by the driver (estimated) 1.5L
- Net weight 3.7kg
- Frame material Pressed steel
.png)
