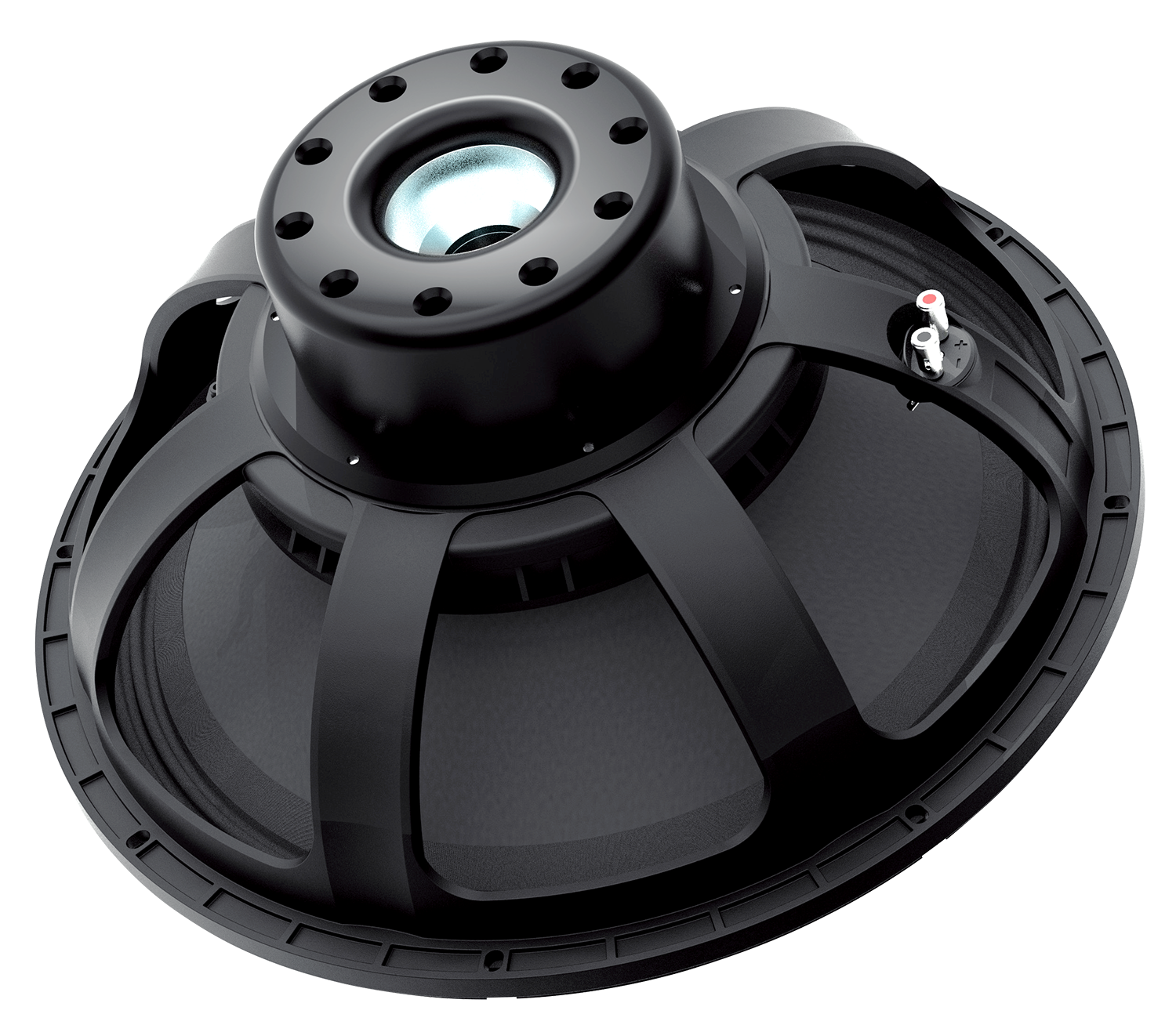

Celestion TSQ2160
8Ω
Low frequency
| Nominal diameter | 21″ / 530 mm |
| Resonance | 30 Hz |
| Q factor | 0.26 |
| Sensitivity | 95.1 dB |
| Linear excursion | ± 18.8 mm |
| Program power | 5000 W |
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.1dB

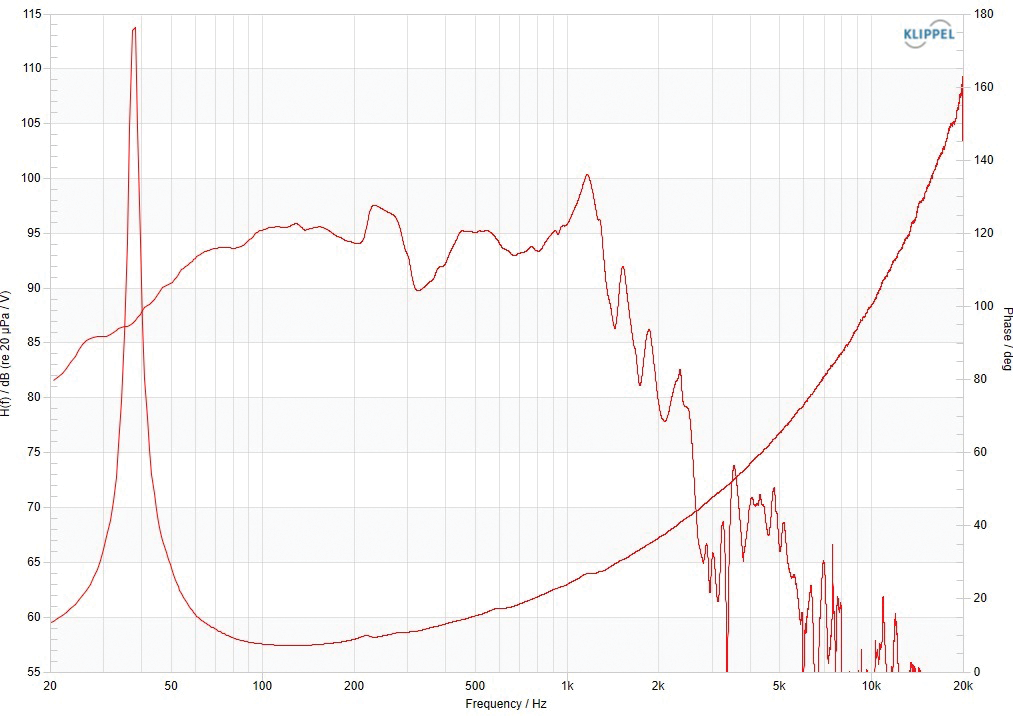

- Frequency response 30 - 300Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 10.29
- Electrical quality factor QES 0.26
- Total quality factor QTS 0.26
Large signal parameters
- Maximum linear excursion (one way) xmax 18.8mm
- Maximum excursion before damage xlim 71mm
- Air volume displaced at xmax VD 3158cm³
- Power handling P 2500W
- Program power Pmax 5000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 2.5mH
- VC Diameter 152mm
- Winding height HVC 45mm
- Winding material Round copper
- Former material Glass fibre
Magnet

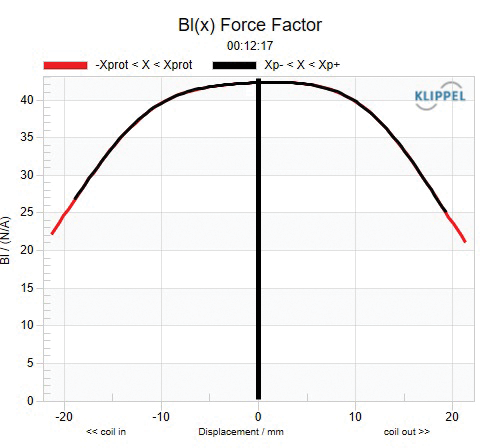

- Force factor Bl 43.2N/A
- Motor constant Bl/√RE 18.6N/√W
- Air gap height HAG 15mm
- Material Neodymium
Diaphragm
- Effective diameter 463mm
- Effective area SD 1684cm²
- Moving mass (including air load) MMS 483g
- Moving mass MMD 434g
- Material Glass loaded cellulose, water-resistant
Suspensions

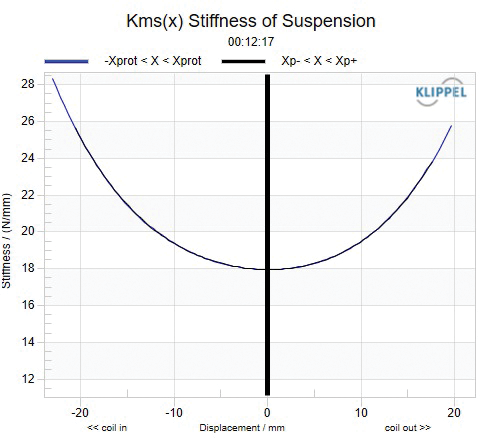

- Stiffness KMS 17.2N/mm
- Compliance CMS 58µm/N
- Equivalent volume to the compliance VAS 235L
- Mechanical resistance RMS 8.84N·s/m
- Surround material Triple roll, cloth sealed
Dimensions
- Nominal diameter 21″
- 530mm
- Overall diameter 547mm
- Baffle cutout diameter 505mm
- Overall depth 253mm
- Flange thickness 17mm
- Mounting depth 236mm
- Volume occupied by the driver (estimated) 12L
- Net weight 21.0kg
- Frame material Cast aluminium
.webp)
.webp)
.webp)
