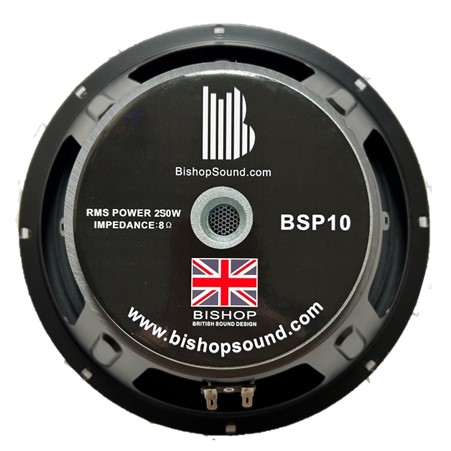

BishopSound BSP10

• Sensitivity (1W, 1m, infinite baffle) SPL1W 96.5dB
• Frequency response 46 - 4000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 46Hz
• Mechanical quality factor QMS 9.40
• Electrical quality factor QES 0.55
• Total quality factor QTS 0.51

Large signal parameters

• Maximum linear excursion xmax 8.3mm
• Maximum excursion before damage xlim 13mm
• Air volume displaced at xmax VD 232cm³
• Power handling P 250W
• Program power Pmax 500W

Voice Coil

• Nominal impedance Z 8Ω
• DC resistance RE 5.4Ω
• Inductance (1kHz) LE 0.51mH
• VC Diameter 50mm
• Winding height HVC 12mm
• Winding material Copper
• Former material Glass Fiber

Magnet

• Flux density B 0.5T
• Force factor Bl 19.3N/A
• Motor constant Bl/√RE 8.31N/√W
• Air gap height HAG 10mm
• Material Ferrite Ring

Diaphragm

• Effective diameter 189mm
• Effective area SD 280cm²
• Moving mass MMS 31.9g
• Moving mass (without air load) MMD 28.2g

Suspensions

• Stiffness KMS 12.5N/mm
• Compliance CMS 80µm/N
• Equivalent volume to the compliance VAS 27.4L
• Mechanical resistance RMS 4.21N·s/m

Dimensions

• Nominal diameter 10″
• 258mm
• Overall diameter 258mm
• Overall depth 125mm
• Flange thickness 1mm
• Mounting depth 124mm
• Volume occupied by the driver 5.7L
• Net weight 4.0kg
• Frame material Aluminium
