Ciare CH252
4Ω
Full-range
| Nominal diameter | 10″ / 250 mm |
| Resonance | 55 Hz |
| Q factor | 0.24 |
| Sensitivity | 95.9 dB |
| Linear excursion | ± 1.4 mm |
| Program Power | 300 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.9dB

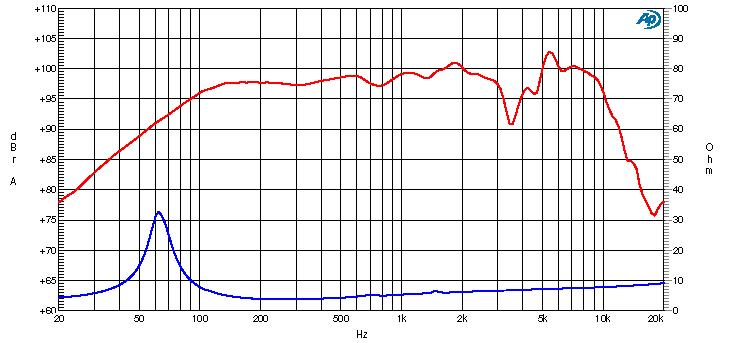

- Frequency response 50 - 12000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 55Hz
- Mechanical quality factor QMS 1.64
- Electrical quality factor QES 0.29
- Total quality factor QTS 0.24
Large signal parameters
- Maximum linear excursion xmax 1.4mm
- Air volume displaced at xmax VD 48cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.0Ω
- Inductance (1kHz) LE 0.36mH
- VC Diameter 50mm
- Former material Aluminium
Magnet
- Force factor Bl 10.2N/A
- Motor constant Bl/√RE 5.89N/√W
- Air gap height HAG 8mm
Diaphragm
- Effective diameter 213mm
- Effective area SD 356cm²
- Moving mass MMS 29g
- Moving mass (without air load) MMD 24.1g
Suspensions
- Stiffness KMS 3.45N/mm
- Compliance CMS 290µm/N
- Equivalent volume to the compliance VAS 52L
- Mechanical resistance RMS 6.11N·s/m
- Surround material Fabric

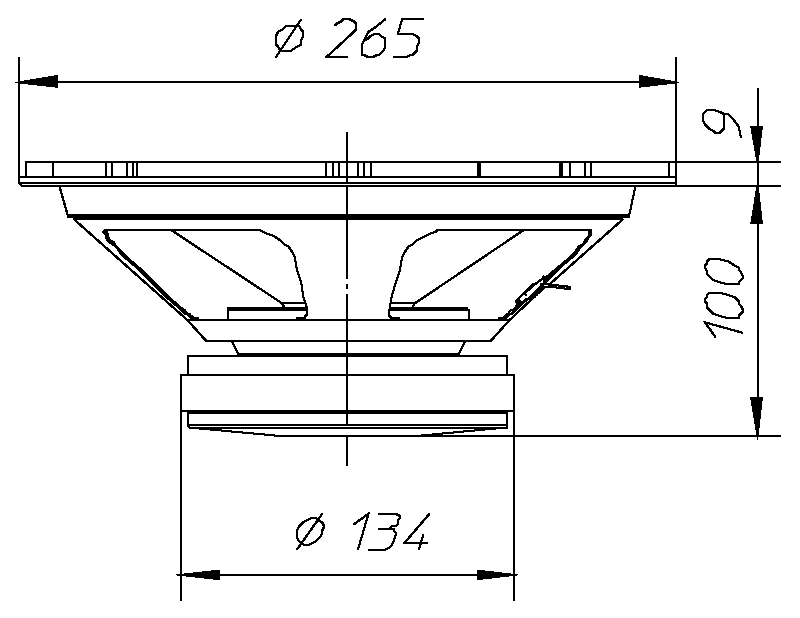

Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 265mm
- Baffle cutout diameter 238mm
- Overall depth 100mm
- Flange thickness 9mm
- Mounting depth 91mm
- Volume occupied by the driver (estimated) 1.2L
- Frame material Steel
