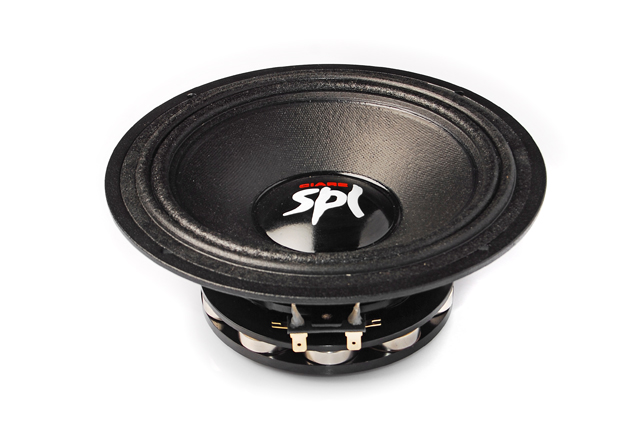

Ciare CM206ND
4Ω
Full-range
| Nominal diameter | 8″ / 200 mm |
| Resonance | 64.2 Hz |
| Q factor | 0.16 |
| Sensitivity | 97.4 dB |
| Linear excursion | ± 4.9 mm |
| Program Power | 400 W |
Discontinued
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 97.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 64.2Hz
- Mechanical quality factor QMS 4.35
- Electrical quality factor QES 0.17
- Total quality factor QTS 0.16
Large signal parameters
- Maximum linear excursion xmax 4.9mm
- Air volume displaced at xmax VD 105cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz) LE 0.1mH
- VC Diameter 50mm
- Former material Kapton
Magnet
- Force factor Bl 12.2N/A
- Motor constant Bl/√RE 6.96N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 166mm
- Effective area SD 216cm²
- Moving mass MMS 20.4g
- Moving mass (without air load) MMD 18g
- Material Treated Cellulose
Suspensions
- Stiffness KMS 3.33N/mm
- Compliance CMS 300µm/N
- Equivalent volume to the compliance VAS 19.8L
- Mechanical resistance RMS 1.89N·s/m
- Surround material Nomex
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 208mm
- Overall depth 81mm
- Flange thickness 4mm
- Mounting depth 77mm
- Volume occupied by the driver (estimated) 0.66L
- Frame material Aluminium
.png)
.png)
