Cube Audio F10 Neo v2
8Ω
Full-range
| Nominal diameter | 10″ / 260x260 mm |
| Resonance | 30 Hz |
| Q factor | 0.50 |
| Sensitivity | 93.3 dB |
| Linear excursion | ± 3 mm |
.png)
.png)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.3dB

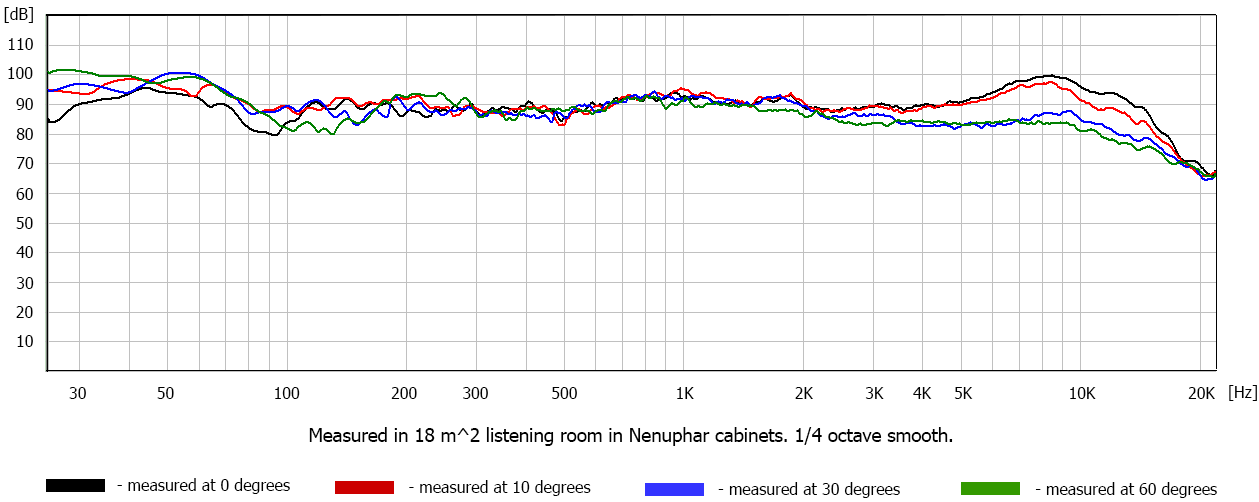

- Frequency response 30 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 17.80
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 3mm
- Maximum excursion before damage xlim 6mm
- Air volume displaced at xmax VD 104cm³
Voice Coil

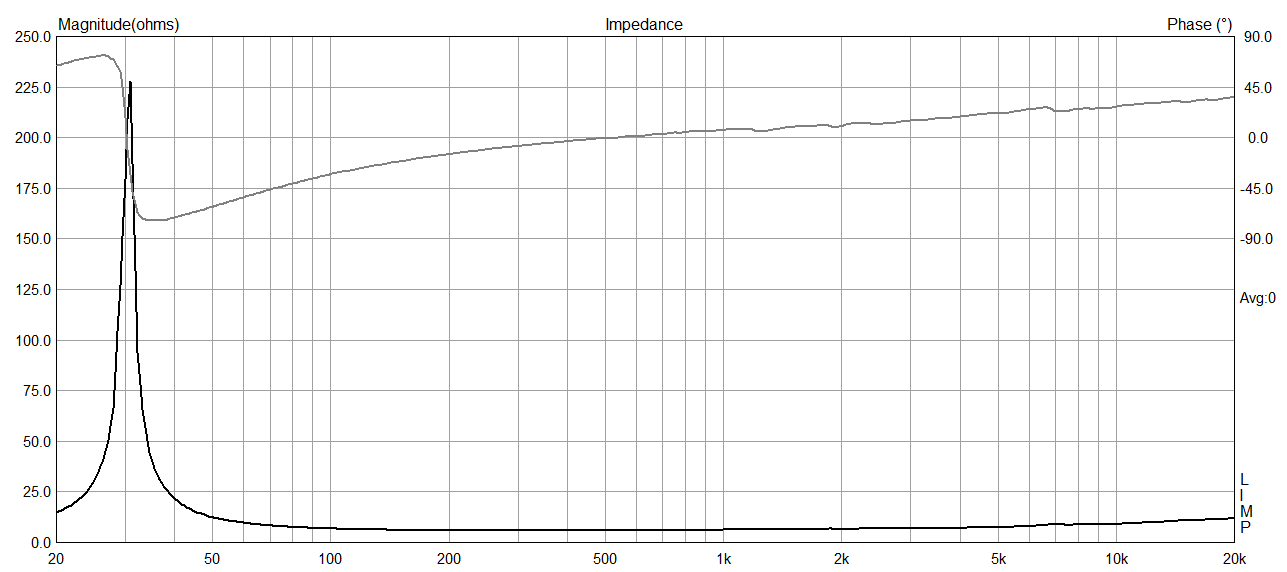

- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.088mH
Magnet
- Flux density B 2.4T
- Force factor Bl 8.7N/A
- Motor constant Bl/√RE 3.71N/√W
- Air gap height HAG 9mm
- Diameter 134mm
- Weight 1.48kg
- Material Neodymium
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 30g
- Moving mass MMD 25.3g
Suspensions
- Stiffness KMS 1.32N/mm
- Compliance CMS 760µm/N
- Equivalent volume to the compliance VAS 127L
- Mechanical resistance RMS 0.32N·s/m

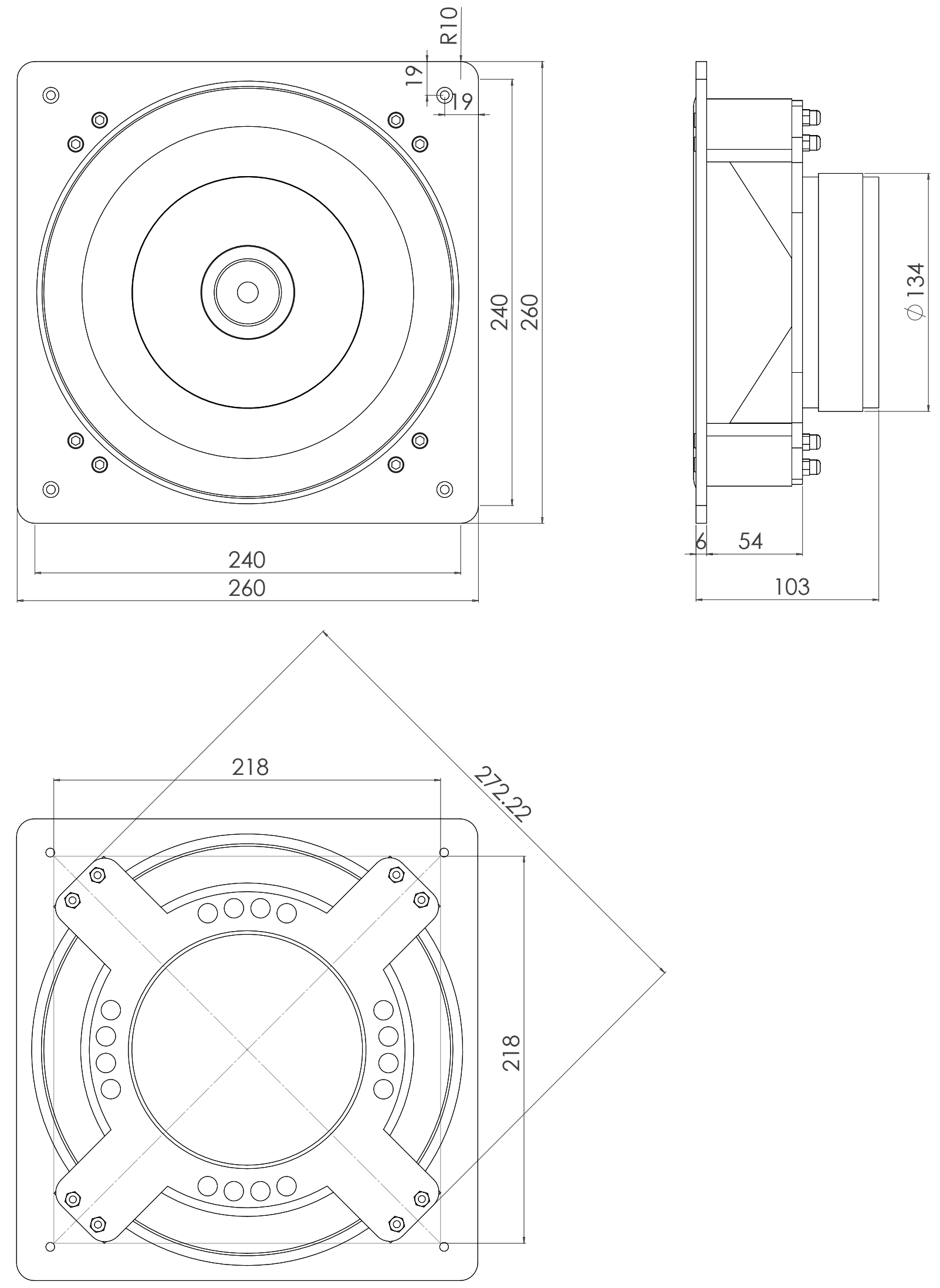

Dimensions
- Nominal diameter 10″
- 260 x 260mm
- Overall size 260 x 260mm
- Overall depth 103mm
- Flange thickness 6mm
- Mounting depth 97mm
- Volume occupied by the driver (estimated) 1.9L
- Net weight 6.0kg
