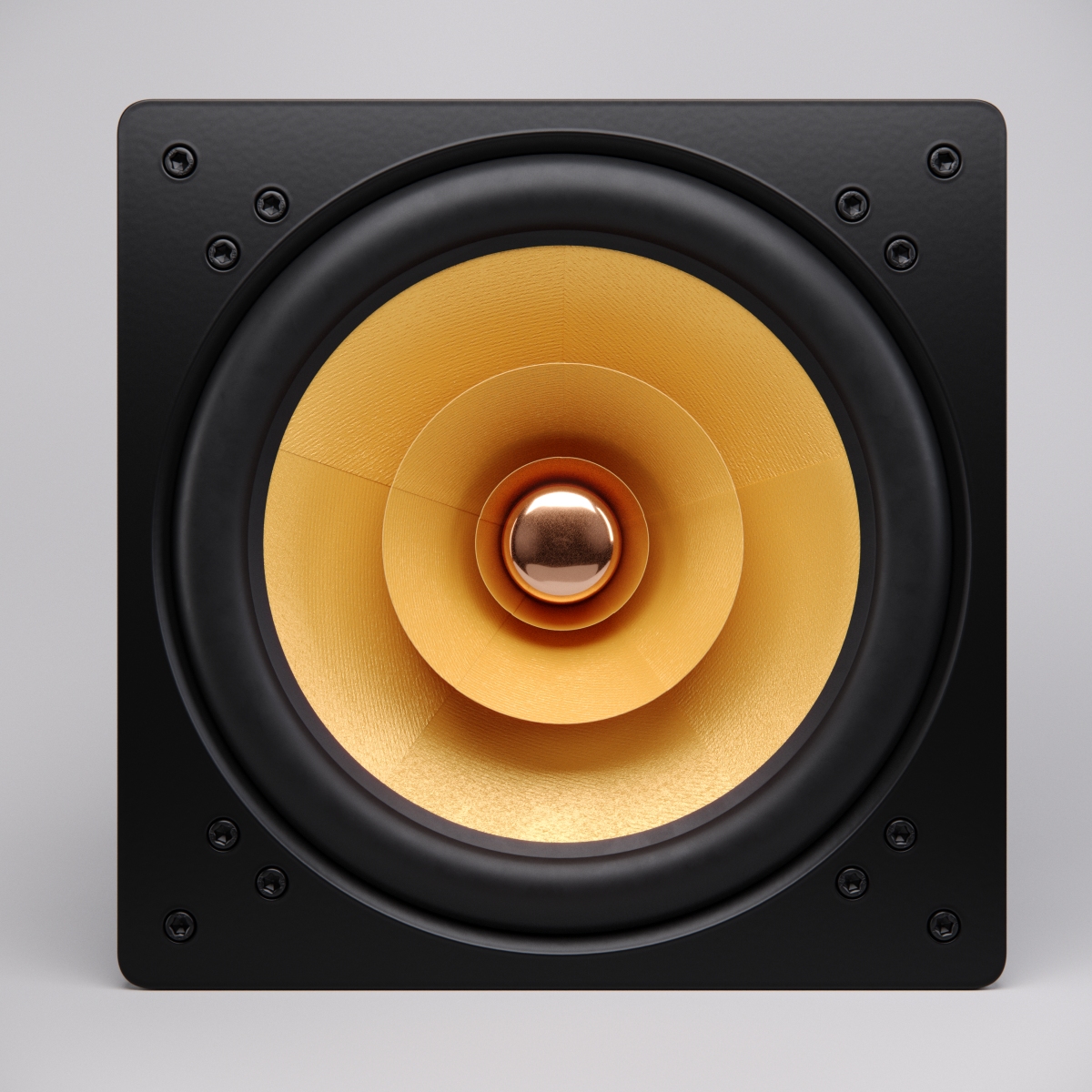

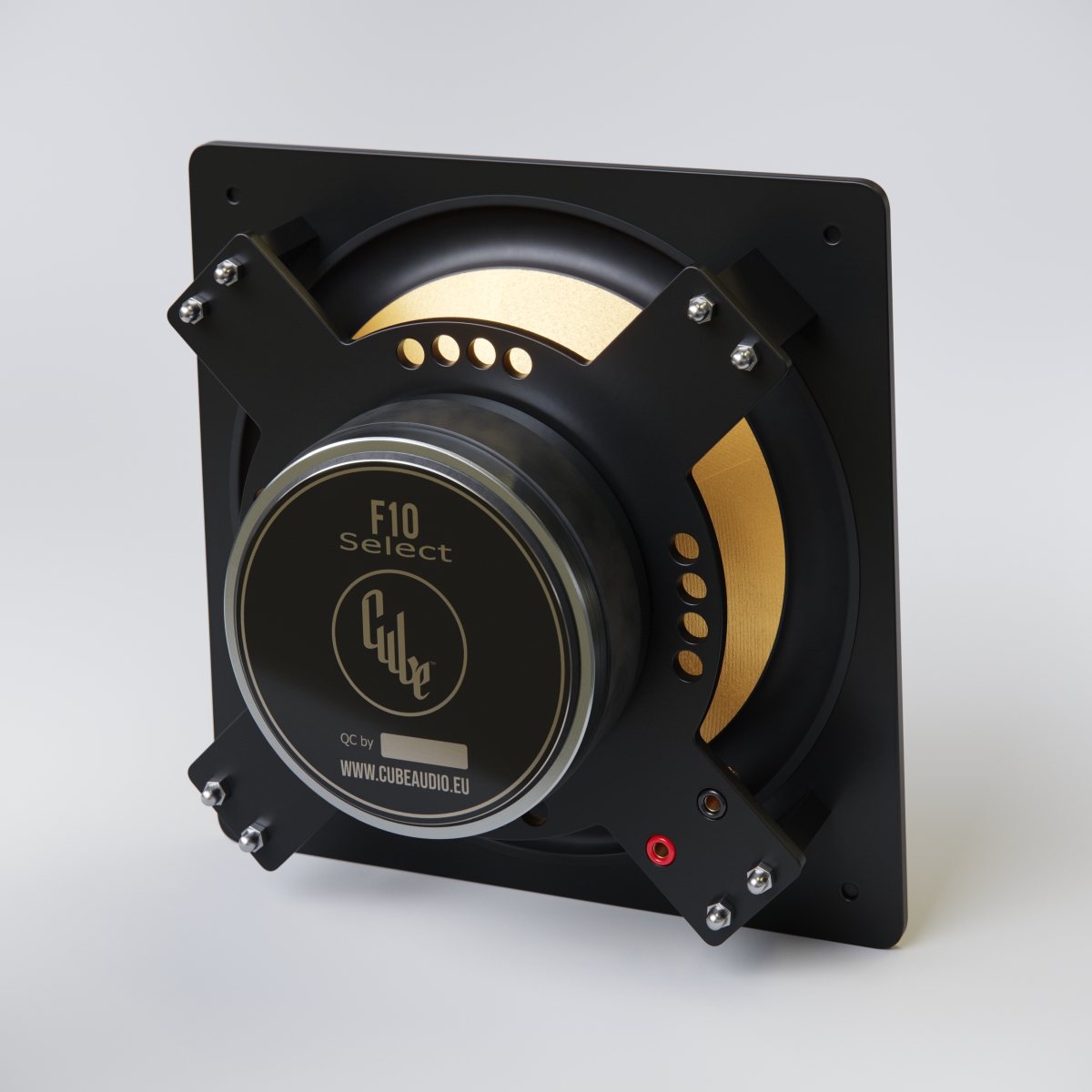

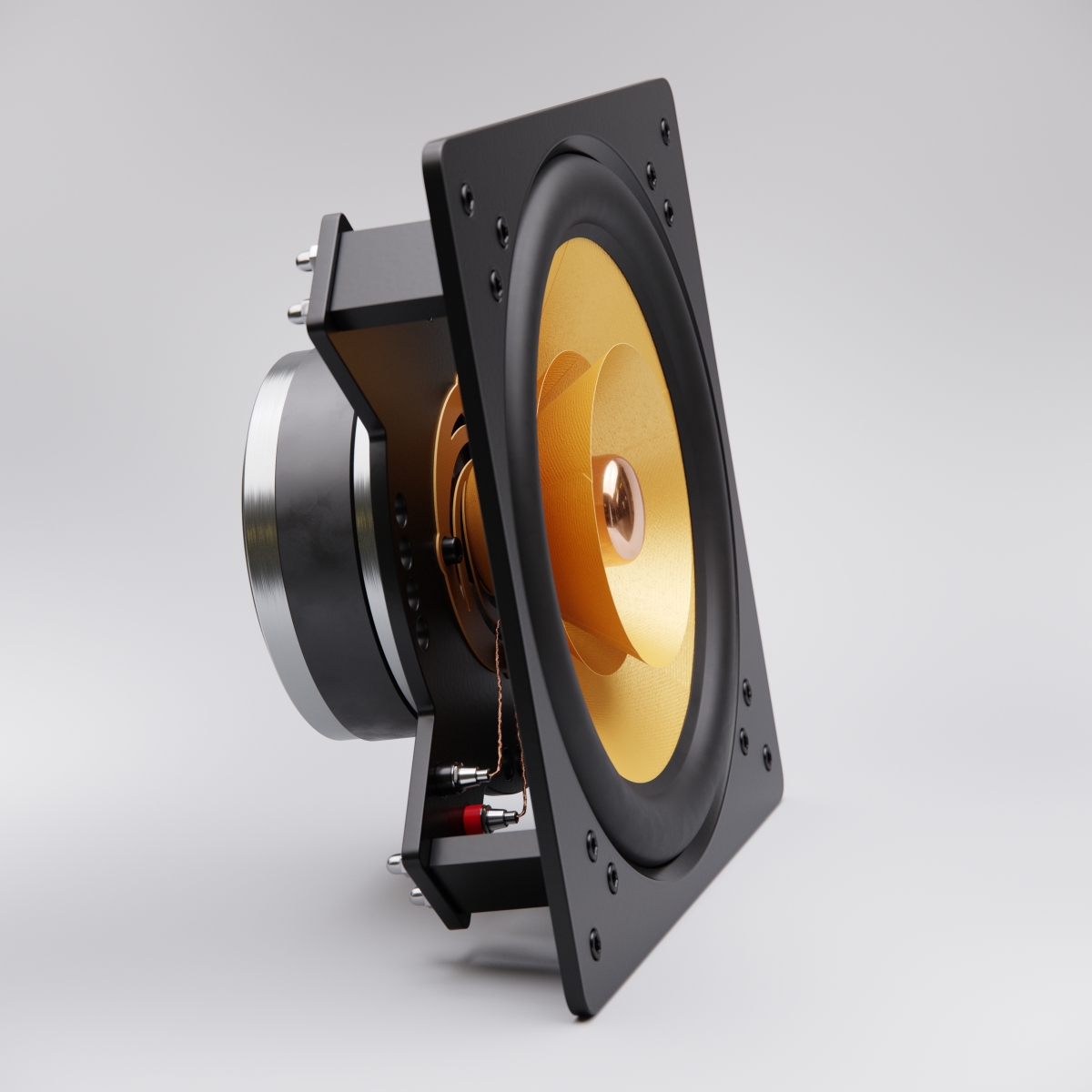

Cube Audio F10 Select v2
10Ω
Full-range
| Nominal diameter | 10″ / 260 mm |
| Resonance | 28 Hz |
| Q factor | 0.58 |
| Sensitivity | 91.5 dB |
| Linear excursion | ± 2.5 mm |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.5dB
- Frequency response 30 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 14.58
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 2.5mm
- Maximum excursion before damage xlim 6mm
- Air volume displaced at xmax VD 87cm³
Voice Coil

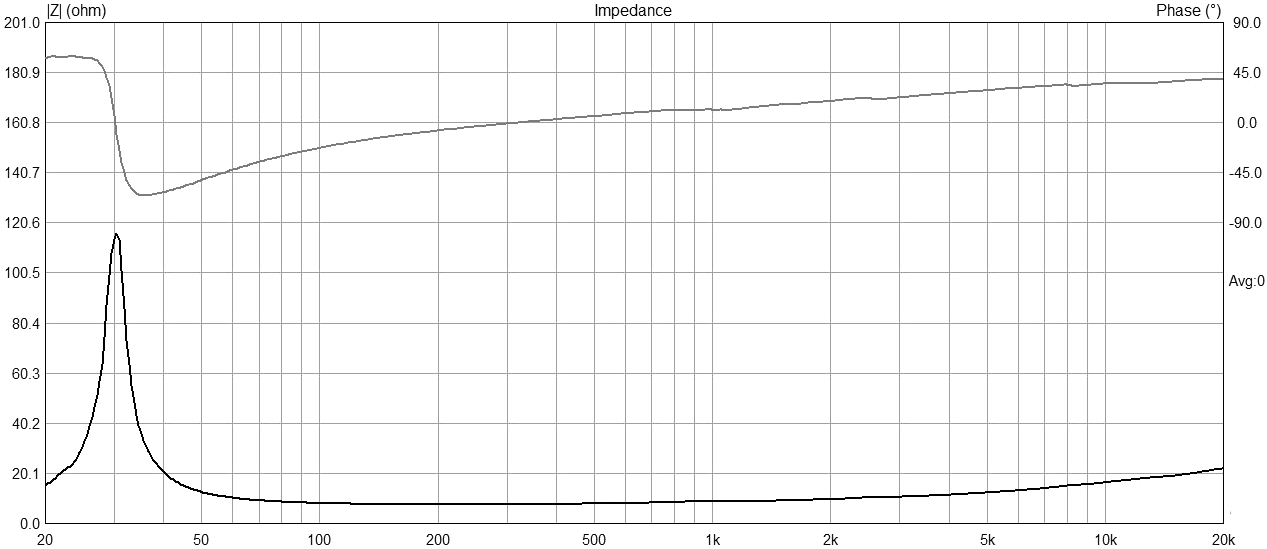

- Nominal impedance Z 10Ω
- DC resistance RE 9.4Ω
- Inductance (1kHz) LE 0.138mH
Magnet
- Force factor Bl 9.2N/A
- Motor constant Bl/√RE 3N/√W
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 30g
- Moving mass (without air load) MMD 25.3g
Suspensions
- Stiffness KMS 1.39N/mm
- Compliance CMS 720µm/N
- Equivalent volume to the compliance VAS 185L
- Mechanical resistance RMS 0.36N·s/m
Dimensions
- Nominal diameter 10″
- 260 x 260mm
- Overall size 260 x 260mm
- Overall depth 107mm
- Volume occupied by the driver (estimated) 2L
- Net weight 6.0kg
.webp)
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
