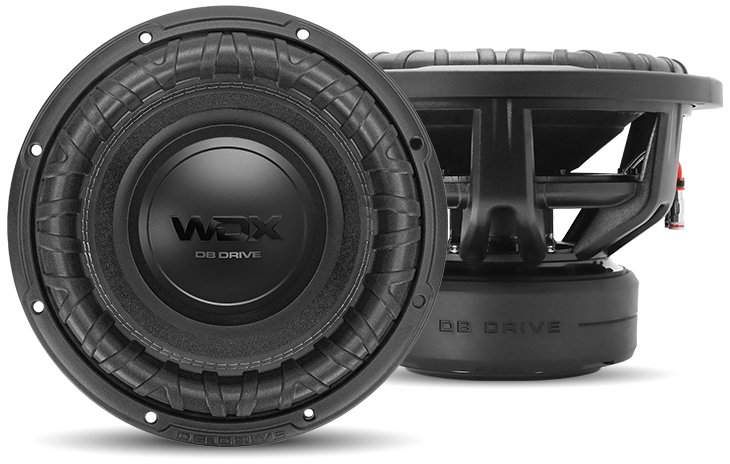

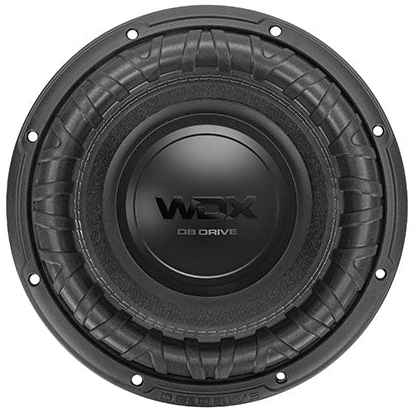

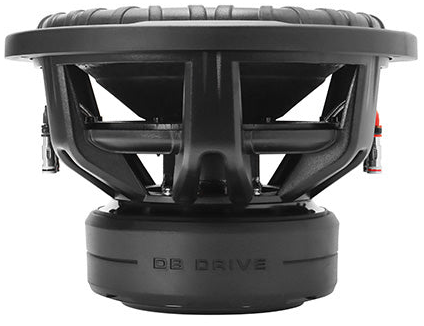

DB Drive WDX12G3R.4
2x4Ω
Subwoofer
| Nominal diameter | 12″ / 329 mm |
| Resonance | 30.2 Hz |
| Q factor | 0.64 |
| Sensitivity | 82.7 dB |
| Linear excursion | ± 23 mm |
| Program Power | 4000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30.2Hz
- Mechanical quality factor QMS 3.38
- Electrical quality factor QES 0.79
- Total quality factor QTS 0.64
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Air volume displaced at xmax VD 1194cm³
- Power handling P 2000W
- Program power Pmax 4000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 7.07mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 23.3N/A
- Motor constant Bl/√RE 9.21N/√W
Diaphragm
- Effective diameter 257mm
- Effective area SD 519cm²
- Moving mass MMS 355g
- Moving mass (without air load) MMD 346g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 12.7N/mm
- Compliance CMS 78.6µm/N
- Equivalent volume to the compliance VAS 30L
- Mechanical resistance RMS 19.9N·s/m
- Surround material Double stitched reinforced foam
- Spider material Dual poly-cotton
Dimensions
- Nominal diameter 12″
- 329mm
- Overall diameter 329mm
- Baffle cutout diameter 284mm
- Mounting depth 189mm
- Volume occupied by the driver (estimated) 3L
- Frame material Die-cast Aluminium
