DS18 HOOLIGAN HOOL-X12.2DHE

2x2Ω

Subwoofer

Nominal diameter	12″ / 321 mm
Resonance	26 Hz
Q factor	0.46
Sensitivity	81.1 dB
Program Power	6000 W

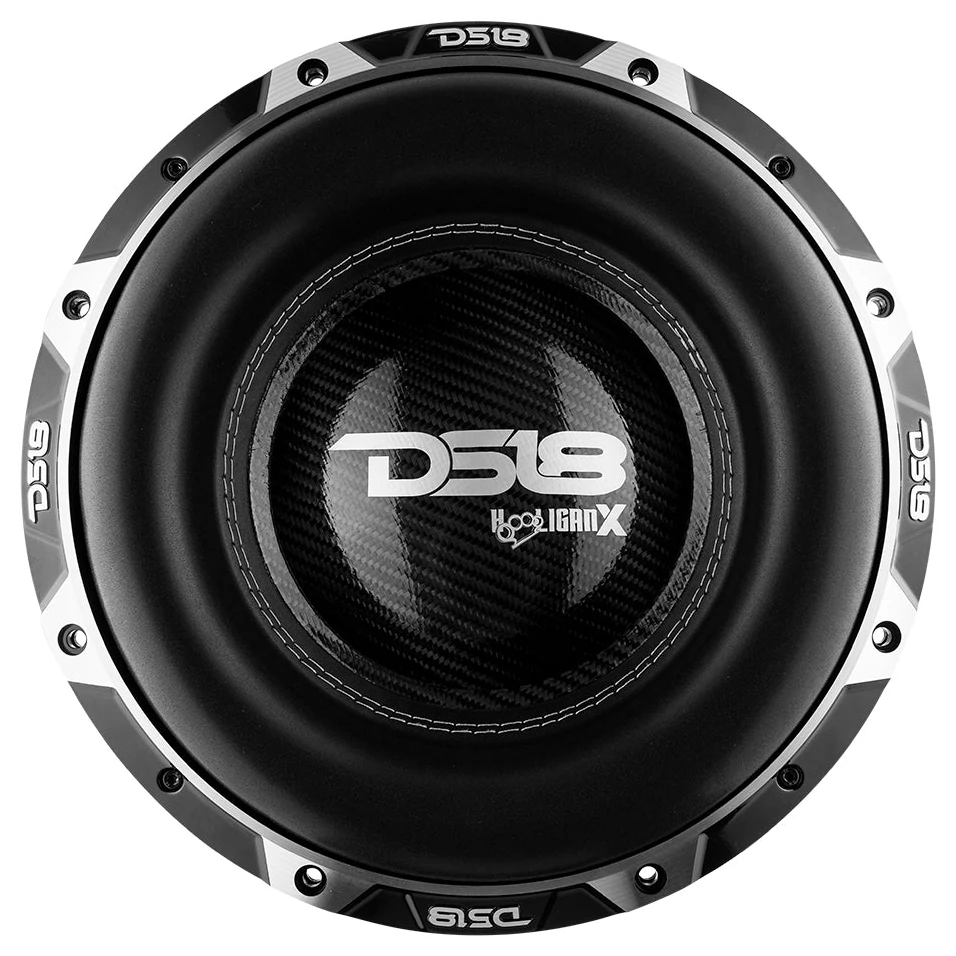

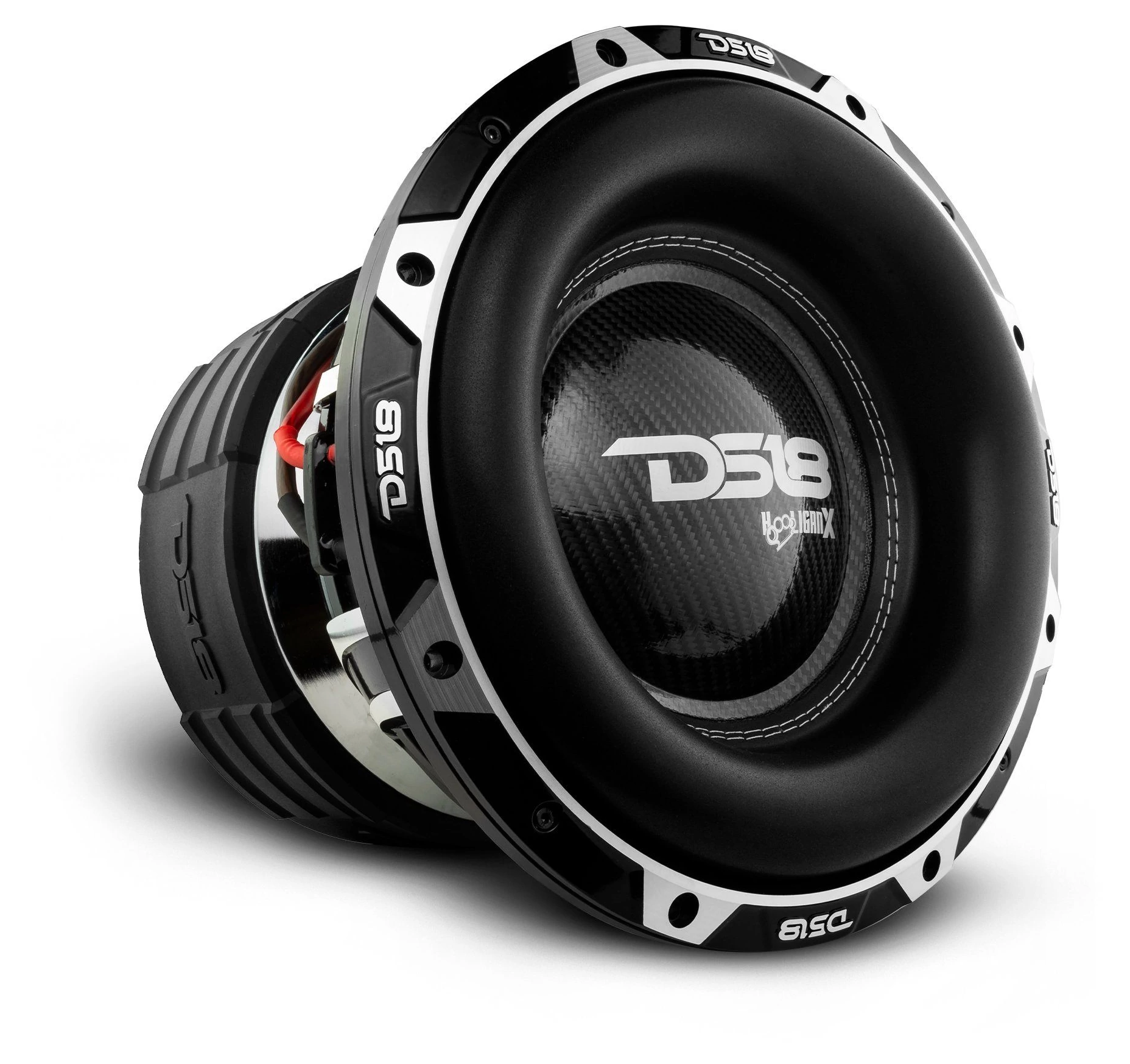

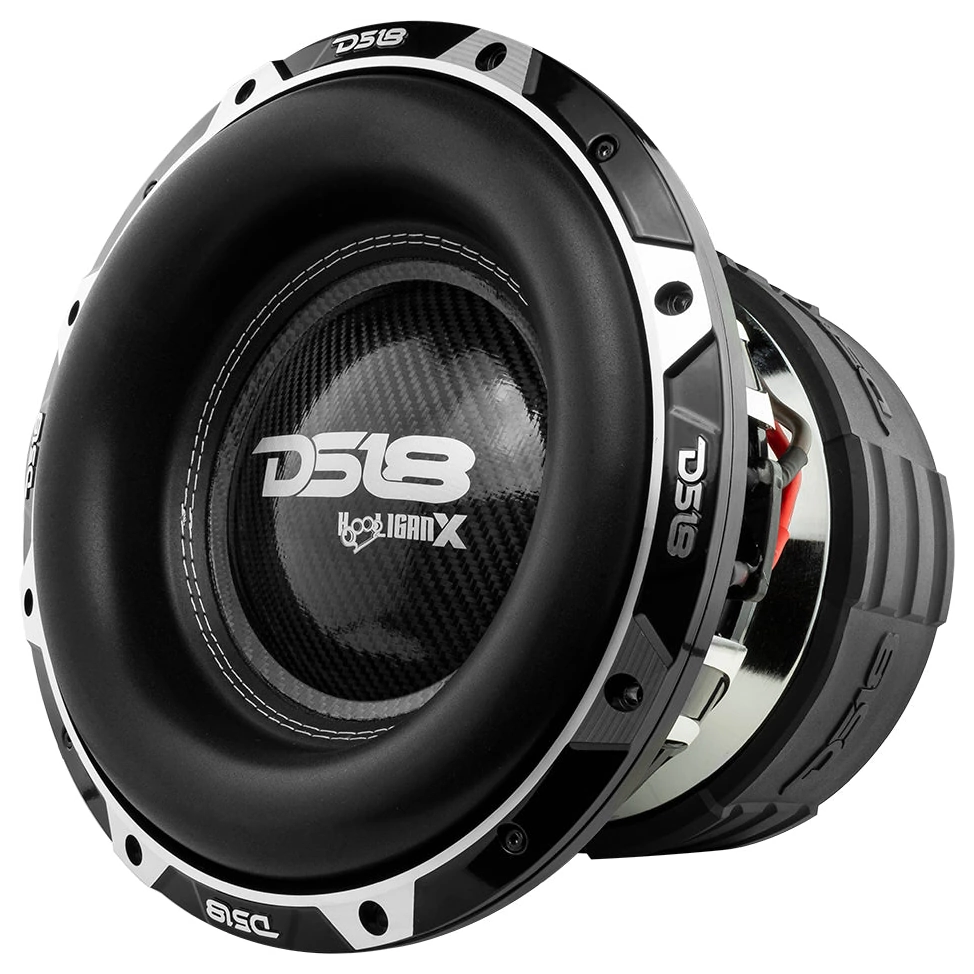

DS18 HOOL-X12.2DHE Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 81.1dB
Frequency response 20 - 500Hz

Thiele & Small parameters

Resonance frequency (free air) fS 26Hz
Mechanical quality factor QMS 2.78
Electrical quality factor QES 0.49
Total quality factor QTS 0.46

Large signal parameters

Power handling P 4000W
Program power Pmax 6000W

Voice Coil

Nominal impedance Z 2 x 2Ω
DC resistance (in series) RE 3.4Ω
Inductance (1kHz, in series) LE 4.23mH
VC Diameter 99.8mm
Winding material Copper Clad Aluminium
Former material Black Aluminum

Magnet

Force factor (in series) Bl 24.3N/A
Motor constant Bl/√RE 13.2N/√W
Diameter 253mm
Weight 14.17kg
Material Ferrite

Diaphragm

Effective diameter 245mm
Effective area SD 471cm²
Moving mass MMS 512g
Moving mass (without air load) MMD 504g
Material Non Pressed Paper

Suspensions

Stiffness KMS 13.9N/mm
Compliance CMS 72µm/N
Equivalent volume to the compliance VAS 22.6L
Mechanical resistance RMS 30.1N·s/m
Surround material Foam

Dimensions

Nominal diameter 12″
321mm
Overall diameter 321mm
Baffle cutout diameter 285mm
Overall depth 295mm
Flange thickness 40mm
Mounting depth 255mm
Volume occupied by the driver 4.8L
Frame material Aluminium

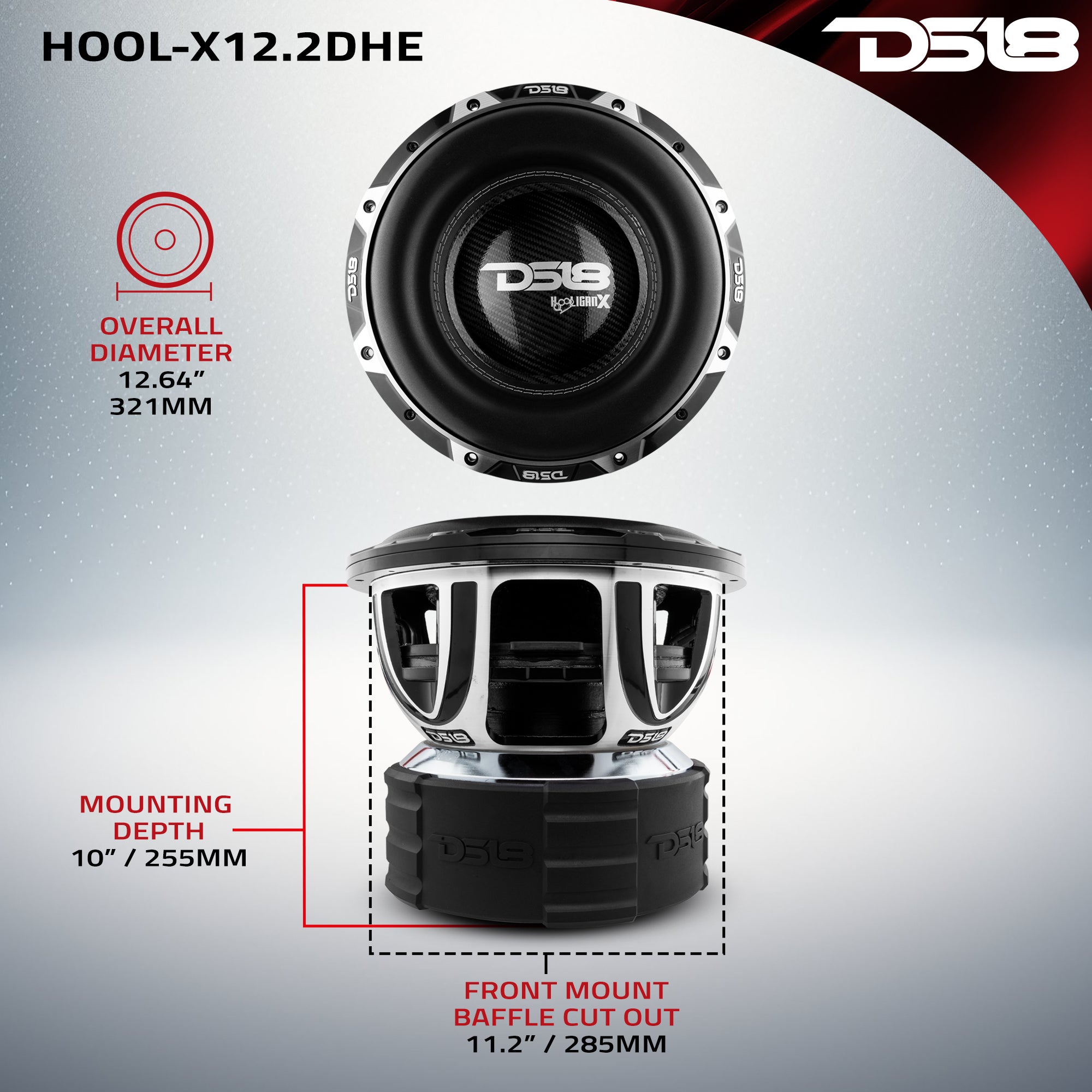

DS18 HOOL-X12.2DHE Dimensions
