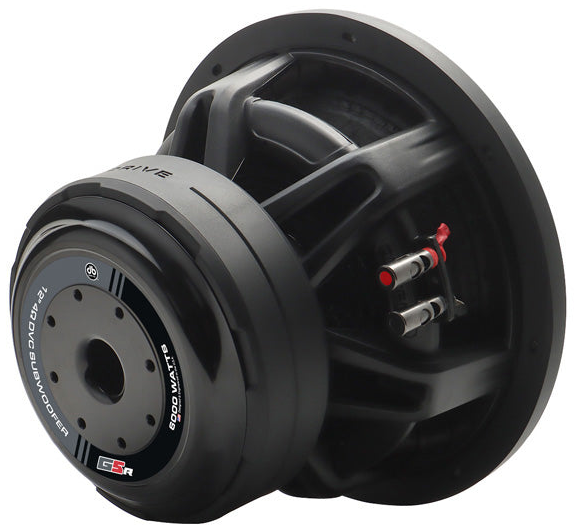

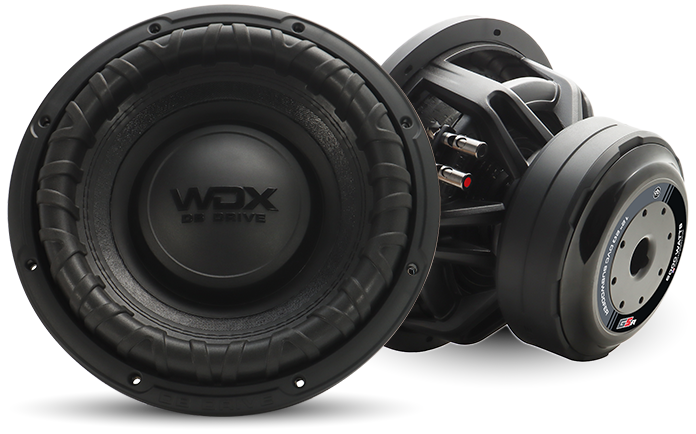

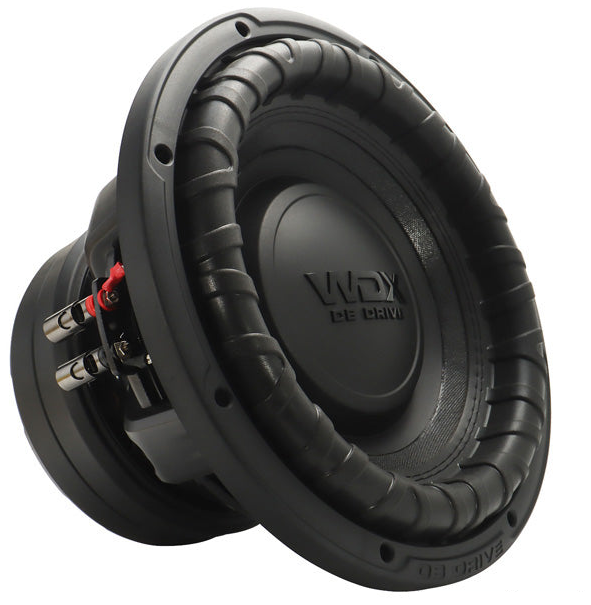

DB Drive WDX12G5R.2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 12″ / 329 mm |
| Resonance | 30.2 Hz |
| Q factor | 0.48 |
| Sensitivity | 82.3 dB |
| Program Power | 6000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30.2Hz
- Mechanical quality factor QMS 3.32
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.48
Large signal parameters
- Power handling P 3000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 5.65mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 26.4N/A
- Motor constant Bl/√RE 13.2N/√W
Diaphragm
- Effective diameter 257mm
- Effective area SD 519cm²
- Moving mass MMS 512g
- Moving mass (without air load) MMD 503g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 18.5N/mm
- Compliance CMS 54.1µm/N
- Equivalent volume to the compliance VAS 20.7L
- Mechanical resistance RMS 29.3N·s/m
- Surround material Double-stitched reinforced foam
- Spider material Dual poly-cotton
Dimensions
- Nominal diameter 12″
- 329mm
- Overall diameter 329mm
- Baffle cutout diameter 284mm
- Mounting depth 203mm
- Volume occupied by the driver (estimated) 3L
- Frame material Die-cast Aluminium vented basket
