DS18 HOOLIGAN HOOL-X15.2DSPL

2x2Ω

Subwoofer

Nominal diameter	15″ / 395 mm
Resonance	36.5 Hz
Q factor	0.44
Sensitivity	87.9 dB
Program Power	6000 W

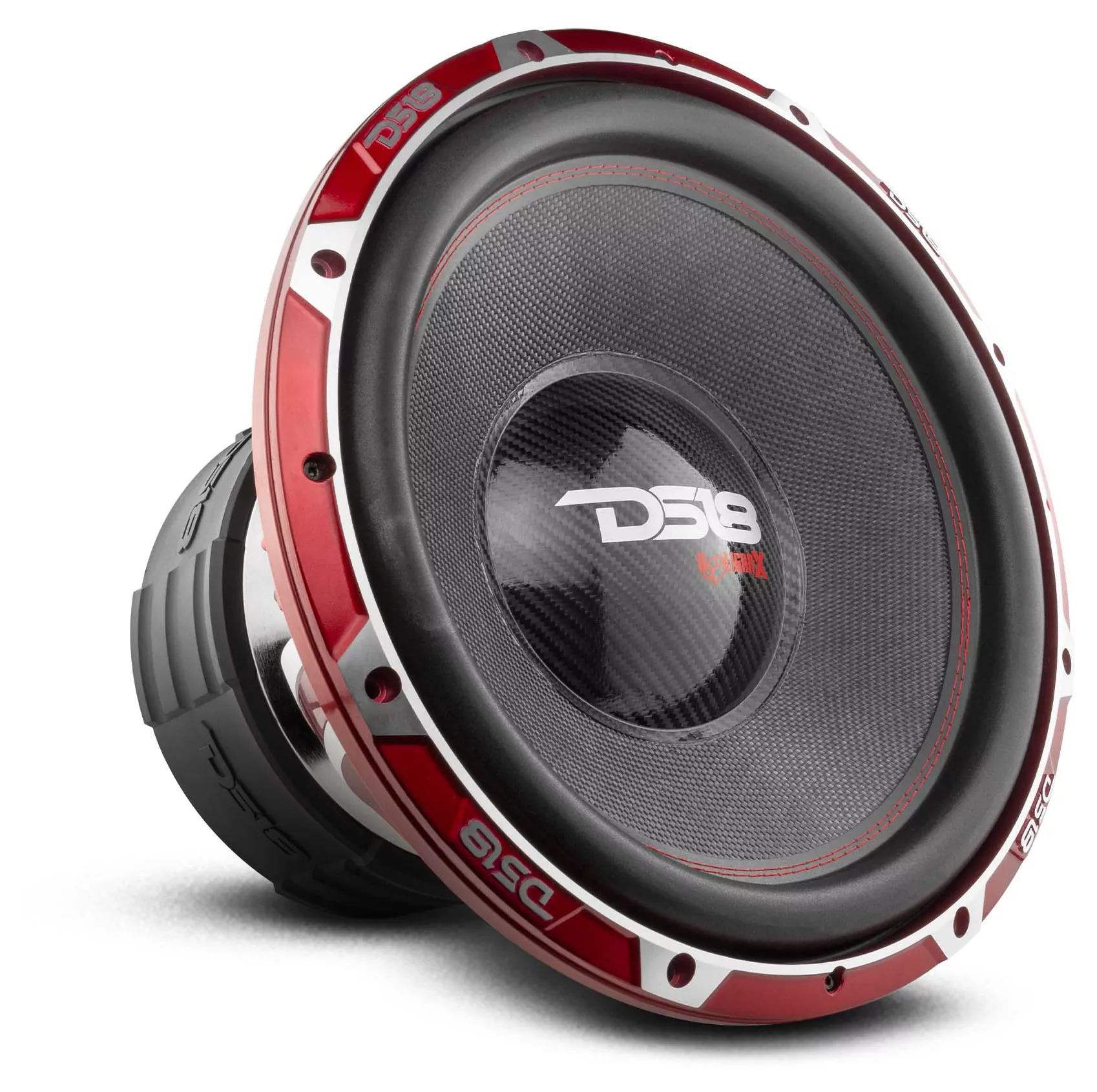

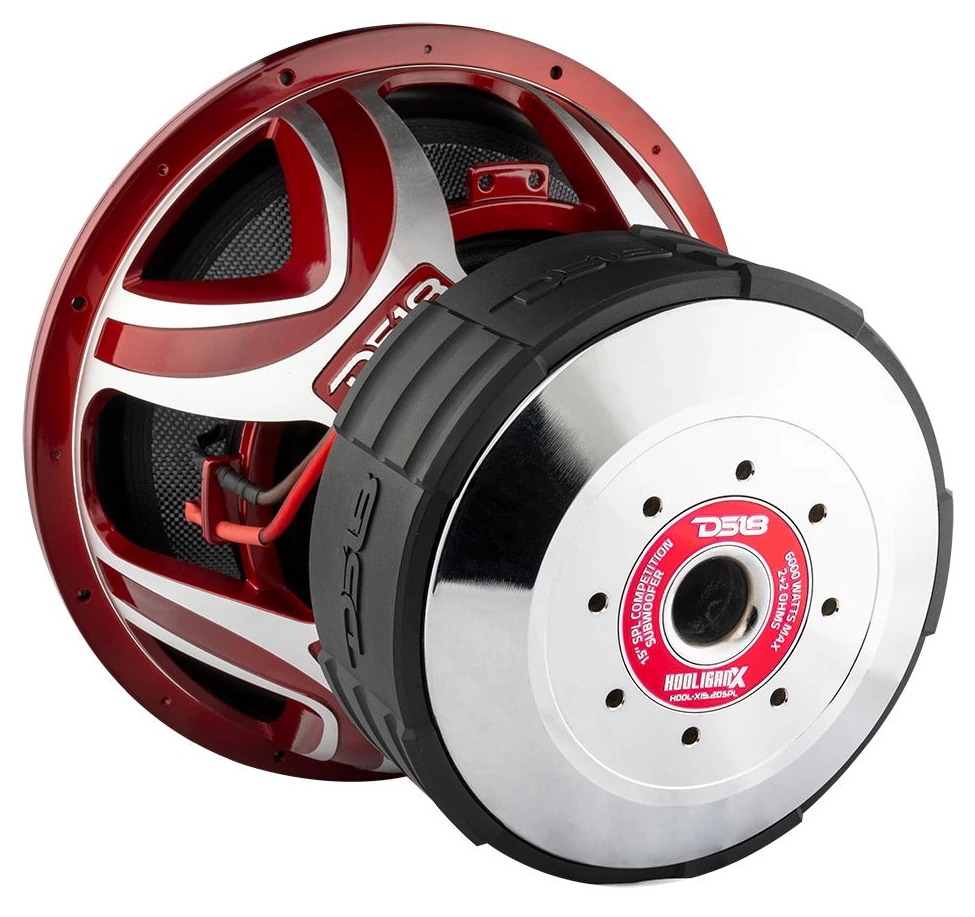

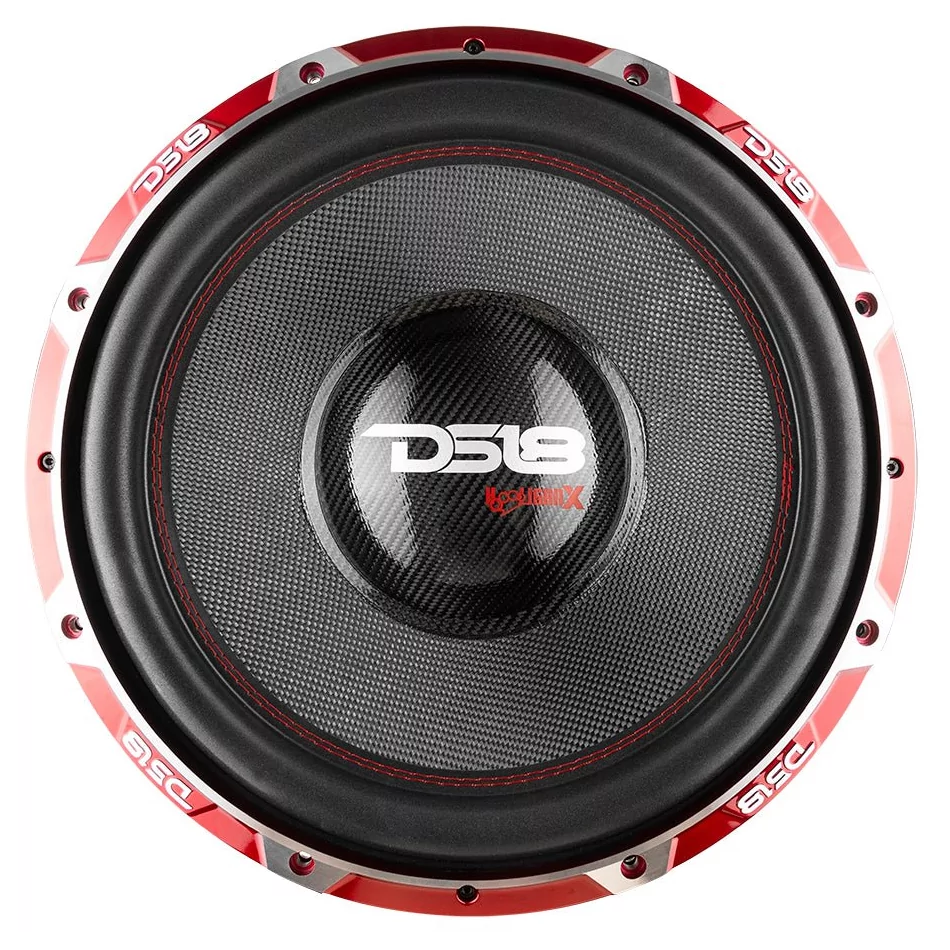

DS18 HOOL-X15.2DSPL Subwoofer

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 87.9dB
Frequency response 20 - 250Hz

Thiele & Small parameters

Resonance frequency (free air) fS 36.5Hz
Mechanical quality factor QMS 5.68
Electrical quality factor QES 0.51
Total quality factor QTS 0.44

Large signal parameters

Power handling P 4000W
Program power Pmax 6000W

Voice Coil

Nominal impedance Z 2 x 2Ω
DC resistance (in series) RE 4.8Ω
Inductance (1kHz, in series) LE 6.07mH
VC Diameter 101.6mm
Winding material Copper Clad Aluminium
Former material Black Aluminum

Magnet

Force factor (in series) Bl 31.7N/A
Motor constant Bl/√RE 14.5N/√W
Diameter 253mm
Weight 14.175kg
Material Ferrite

Diaphragm

Effective diameter 310mm
Effective area SD 755cm²
Moving mass MMS 479g
Moving mass (without air load) MMD 463g
Material Non-Pressed Paper

Suspensions

Stiffness KMS 40N/mm
Compliance CMS 25µm/N
Equivalent volume to the compliance VAS 41.3L
Mechanical resistance RMS 19.3N·s/m
Surround material Foam

Dimensions

Nominal diameter 15″
395mm
Overall diameter 395mm
Baffle cutout diameter 358mm
Overall depth 338mm
Flange thickness 54mm
Mounting depth 284mm
Volume occupied by the driver 9.1L
Frame material Aluminium

DS18 HOOL-X15.2DSPL Dimensions
