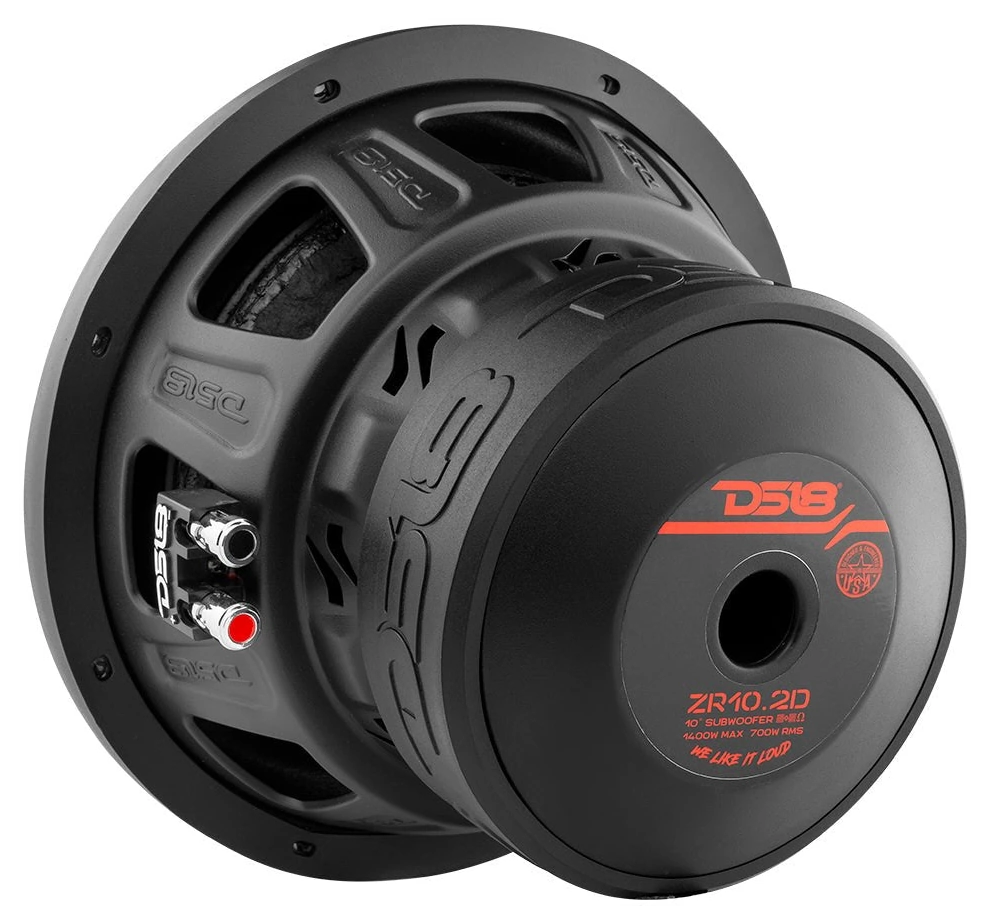

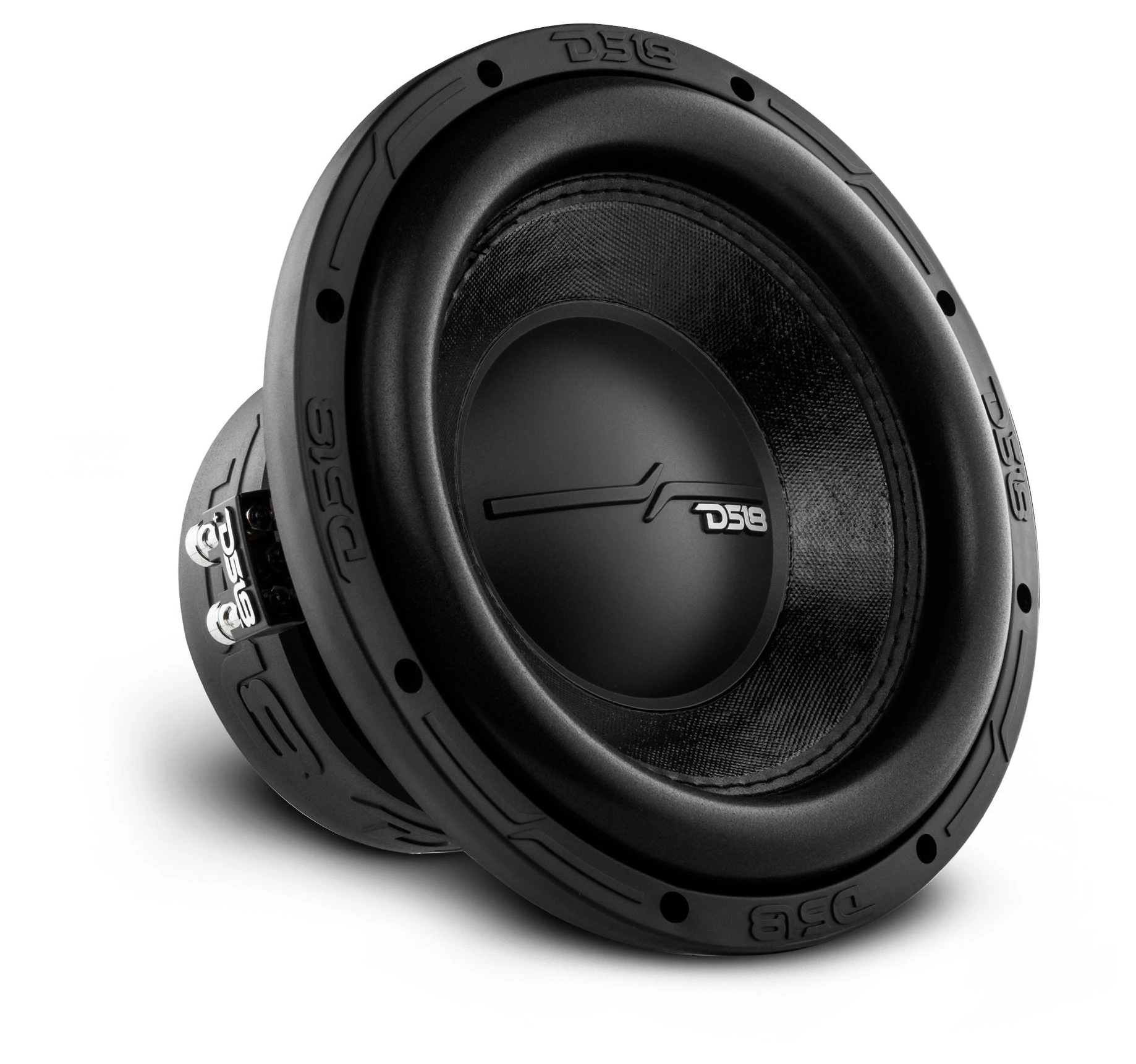

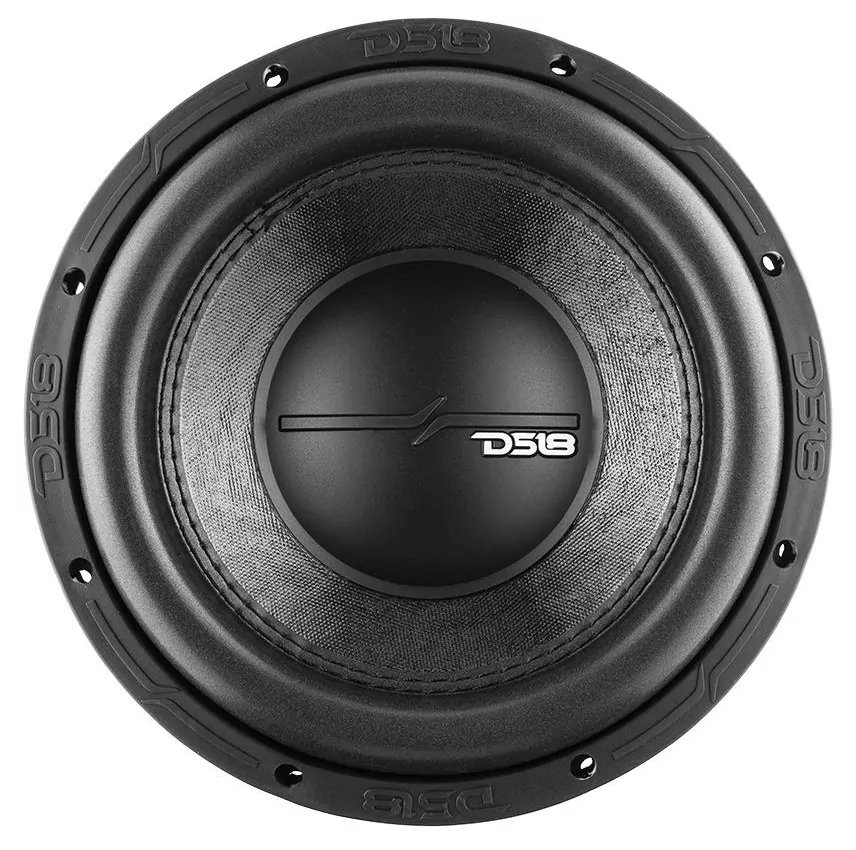

DS18 ZR10.2D
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 262 mm |
| Resonance | 34 Hz |
| Q factor | 0.67 |
| Sensitivity | 82.3 dB |
| Program Power | 1400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.3dB
- Frequency response 27 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 4.30
- Electrical quality factor QES 0.80
- Total quality factor QTS 0.67
Large signal parameters
- Power handling P 700W
- Program power Pmax 1400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.4Ω
- Inductance (1kHz, in series) LE 5.46mH
- VC Diameter 61.6mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 17.6N/A
- Motor constant Bl/√RE 8.37N/√W
- Diameter 155mm
- Weight 2.835kg
- Material Ferrite
Diaphragm
- Effective diameter 206mm
- Effective area SD 333cm²
- Moving mass MMS 252g
- Moving mass (without air load) MMD 248g
- Material Non Pressed Paper
Suspensions
- Stiffness KMS 18.7N/mm
- Compliance CMS 53.4µm/N
- Equivalent volume to the compliance VAS 8.26L
- Mechanical resistance RMS 12.5N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 10″
- 262mm
- Overall diameter 262mm
- Baffle cutout diameter 229mm
- Overall depth 176mm
- Flange thickness 24mm
- Mounting depth 152mm
- Volume occupied by the driver 1.42L
- Frame material Steel
