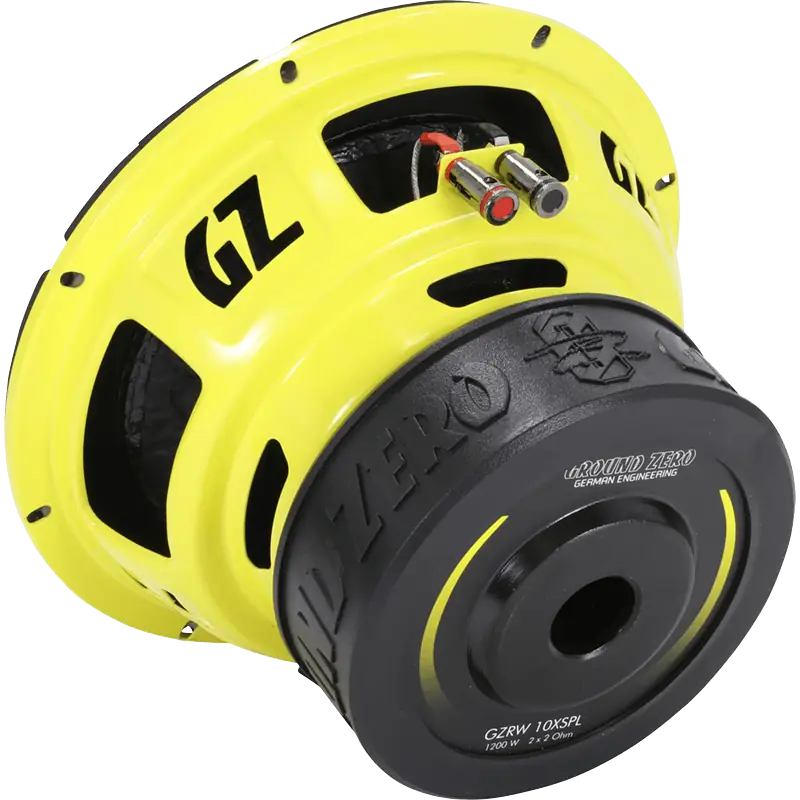

Ground Zero RADIOACTIVE GZRW 10XSPL
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 44.3 Hz |
| Q factor | 0.75 |
| Sensitivity | 82.9 dB |
| Program Power | 1200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 44.3Hz
- Mechanical quality factor QMS 7.80
- Electrical quality factor QES 0.83
- Total quality factor QTS 0.75
Large signal parameters
- Maximum excursion before damage xlim 15mm
- Power handling P 800W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 3.09mH
- VC Diameter 63mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 17.6N/A
- Motor constant Bl/√RE 8.79N/√W
Diaphragm
- Effective diameter 207mm
- Effective area SD 337cm²
- Moving mass MMS 230g
- Moving mass (without air load) MMD 225g
- Material Reinforced paper
Suspensions
- Stiffness KMS 17.9N/mm
- Compliance CMS 56µm/N
- Equivalent volume to the compliance VAS 9L
- Mechanical resistance RMS 8.2N·s/m
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 257mm
- Baffle cutout diameter 228mm
- Mounting depth 150mm
- Volume occupied by the driver (estimated) 1.6L
