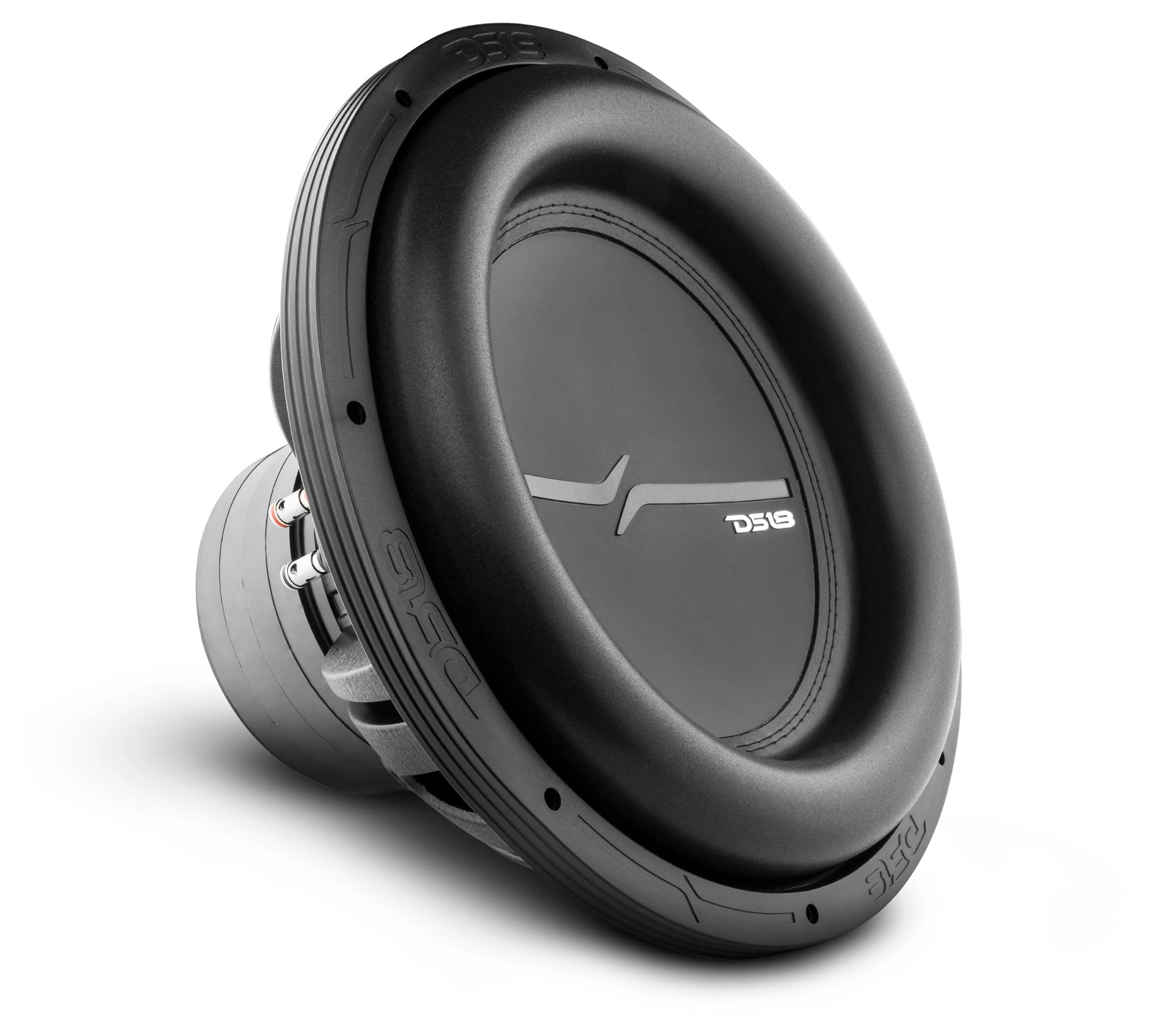

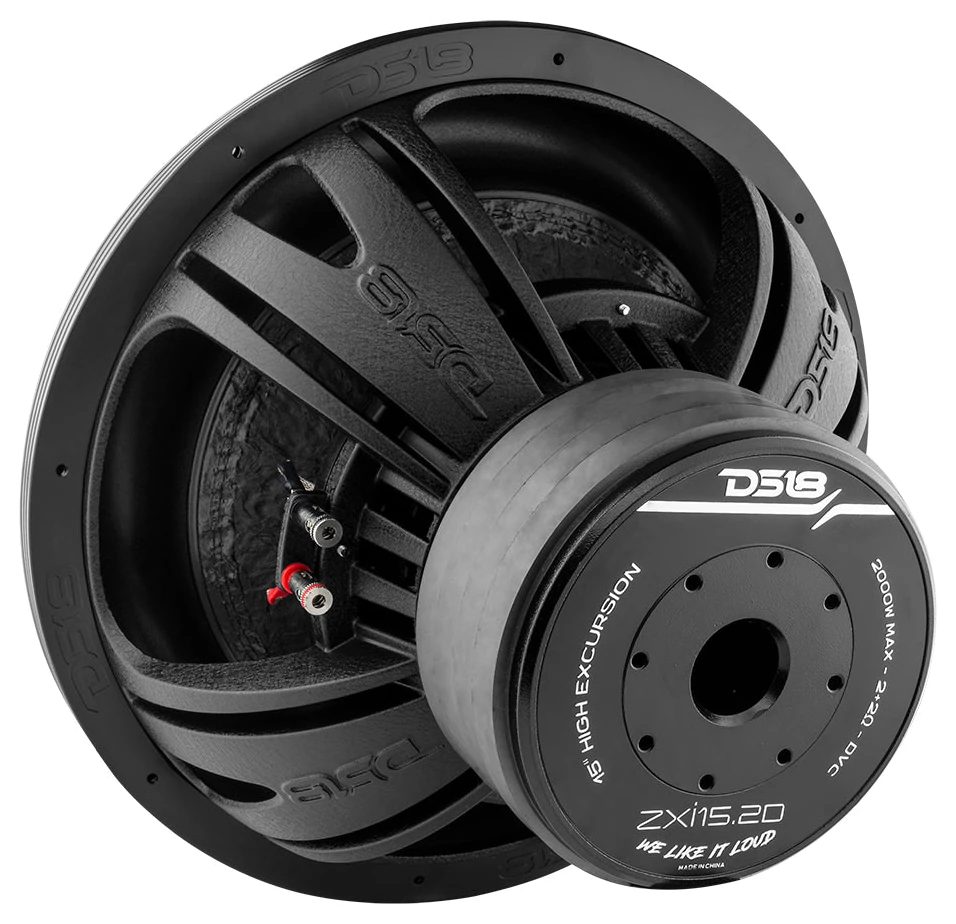

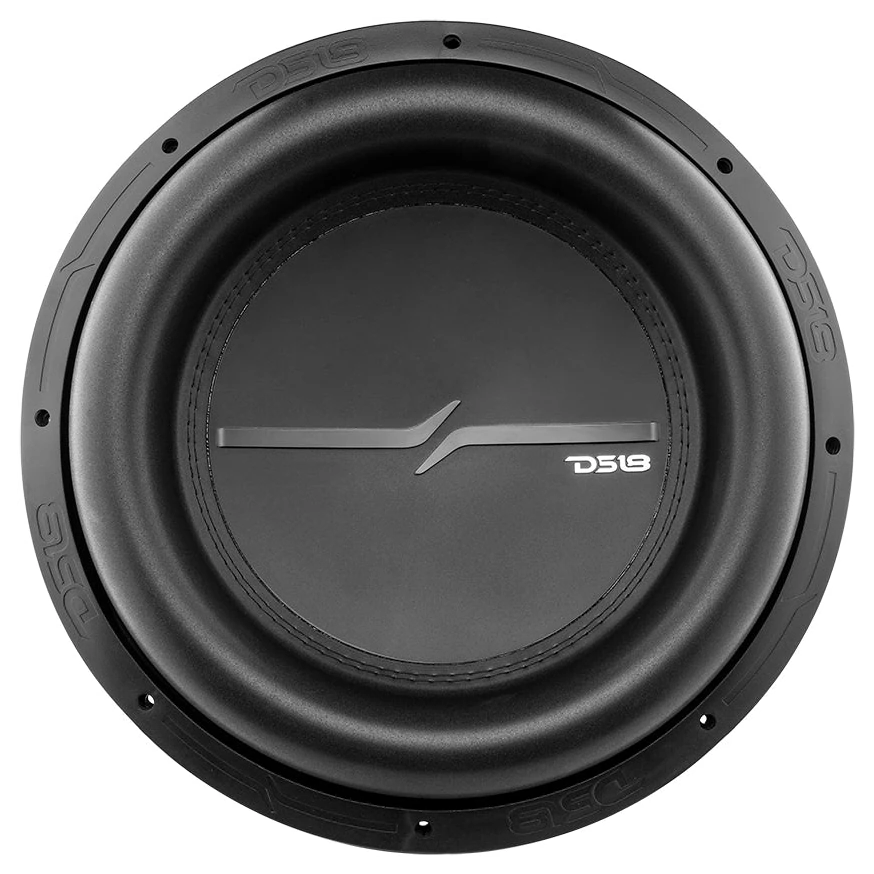

DS18 ZXI15.2D
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 398 mm |
| Resonance | 28 Hz |
| Q factor | 0.54 |
| Sensitivity | 86.1 dB |
| Program Power | 2000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.1dB
- Frequency response 15 - 900Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 28Hz
- Mechanical quality factor QMS 9.13
- Electrical quality factor QES 0.69
- Total quality factor QTS 0.54
Large signal parameters
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 7.0Ω
- Inductance (1kHz, in series) LE 5.81mH
- VC Diameter 76.2mm
- Winding material Copper Clad Aluminium
- Former material Black Aluminum
Magnet
- Force factor (in series) Bl 26.1N/A
- Motor constant Bl/√RE 9.85N/√W
- Diameter 190mm
- Weight 6.577kg
- Material Ferrite
Diaphragm
- Effective diameter 320mm
- Effective area SD 804cm²
- Moving mass MMS 381g
- Moving mass (without air load) MMD 364g
- Material Non Pressed Paper
Suspensions
- Stiffness KMS 8.77N/mm
- Compliance CMS 114µm/N
- Equivalent volume to the compliance VAS 86L
- Mechanical resistance RMS 7.34N·s/m
- Surround material Foam

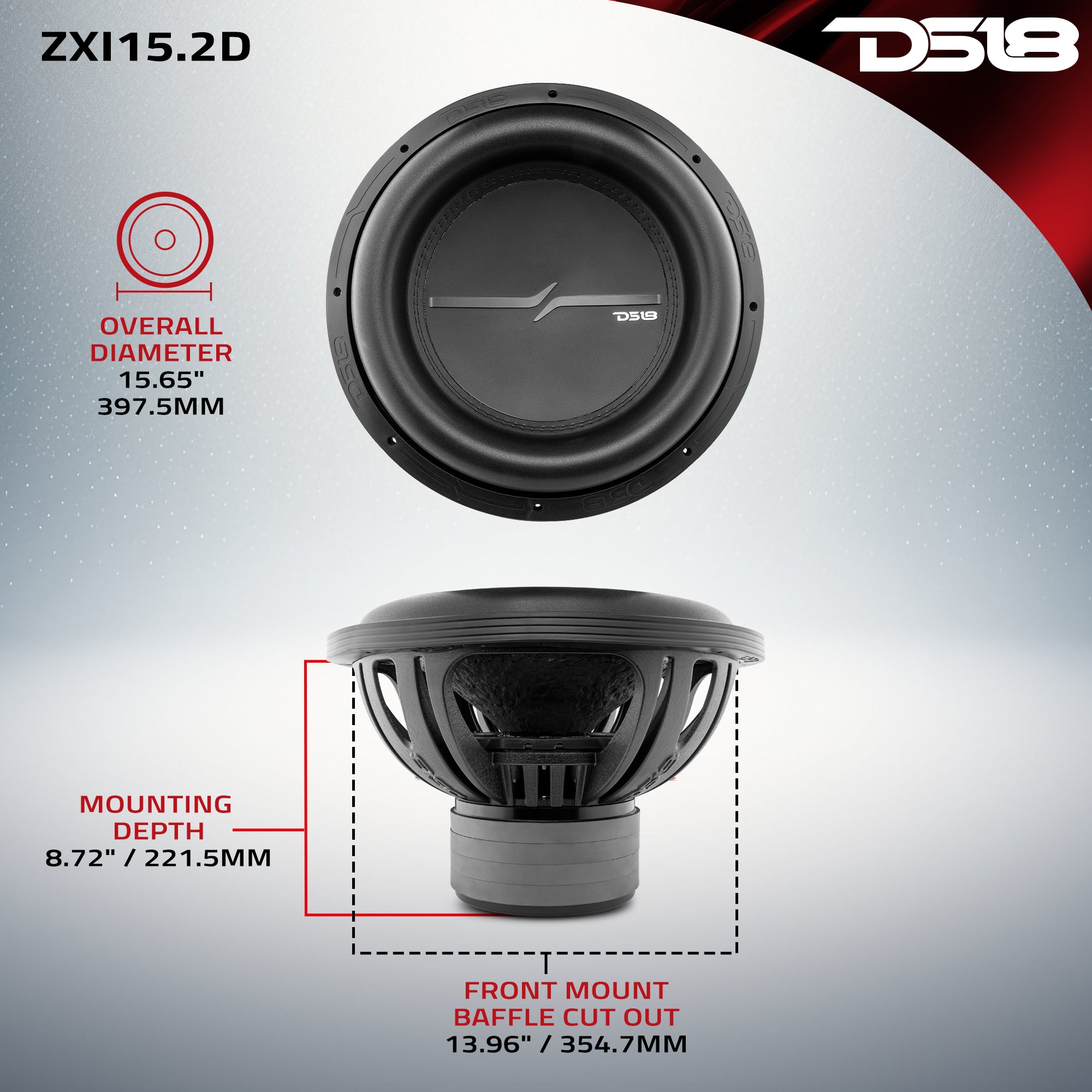

Dimensions
- Nominal diameter 15″
- 398mm
- Overall diameter 398mm
- Baffle cutout diameter 355mm
- Overall depth 267mm
- Flange thickness 45mm
- Mounting depth 222mm
- Volume occupied by the driver 5.82L
- Frame material Aluminium
