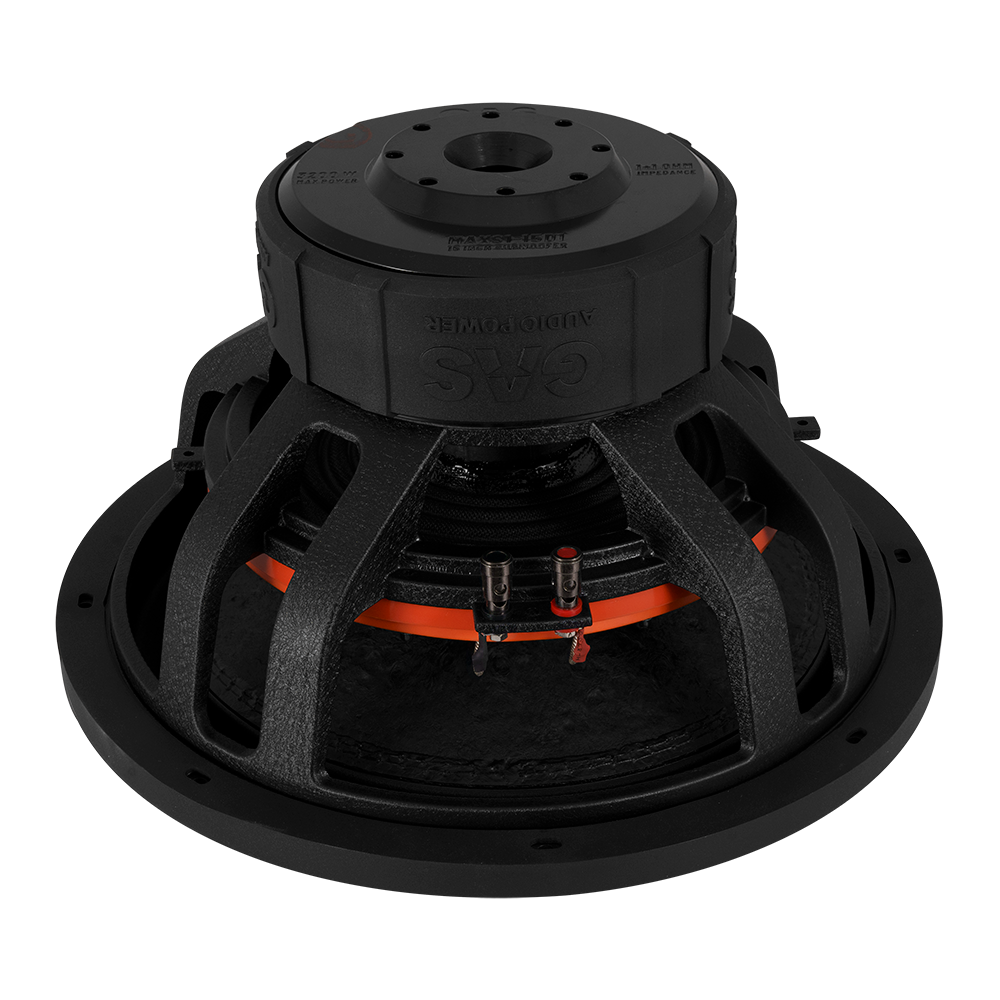

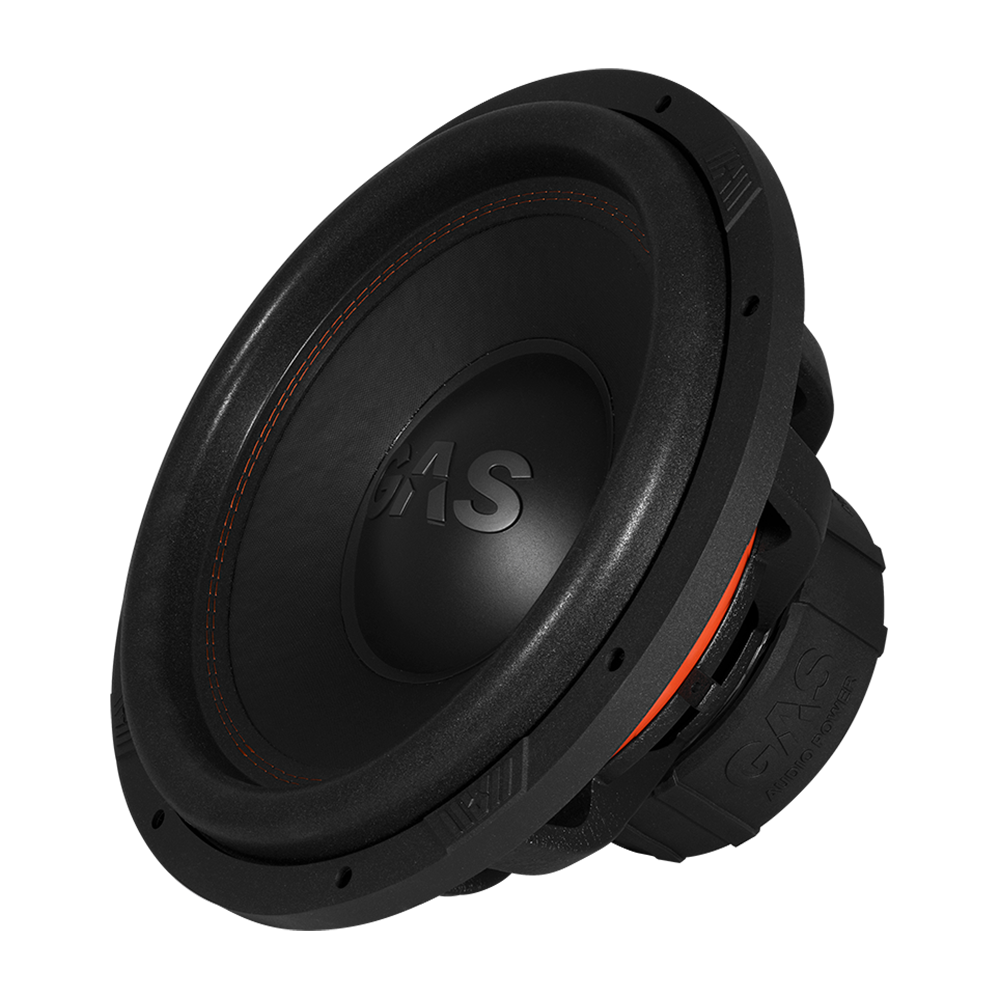

GAS Audio Power MAX S1-15D2
2x1Ω
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 24.4 Hz |
| Q factor | 0.53 |
| Sensitivity | 85.8 dB |
| Linear excursion | ± 20 mm |
| Program Power | 3200 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 24.4Hz
- Mechanical quality factor QMS 6.33
- Electrical quality factor QES 0.58
- Total quality factor QTS 0.53
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 1658cm³
- Power handling P 1600W
- Program power Pmax 3200W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 3.14mH
- VC Diameter 76.2mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 22.2N/A
- Motor constant Bl/√RE 11.4N/√W
- Diameter 202mm
- Weight 5.67kg
- Material Ferrite
Diaphragm
- Effective diameter 325mm
- Effective area SD 829cm²
- Moving mass MMS 468g
- Moving mass (without air load) MMD 451g
- Material Paper
Suspensions
- Stiffness KMS 11.5N/mm
- Compliance CMS 87µm/N
- Equivalent volume to the compliance VAS 79.7L
- Mechanical resistance RMS 11.3N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 396mm
- Baffle cutout diameter 350mm
- Overall depth 222mm
- Flange thickness 16mm
- Mounting depth 206mm
- Volume occupied by the driver 4.1L
- Net weight 14.6kg
- Frame material Aluminium
