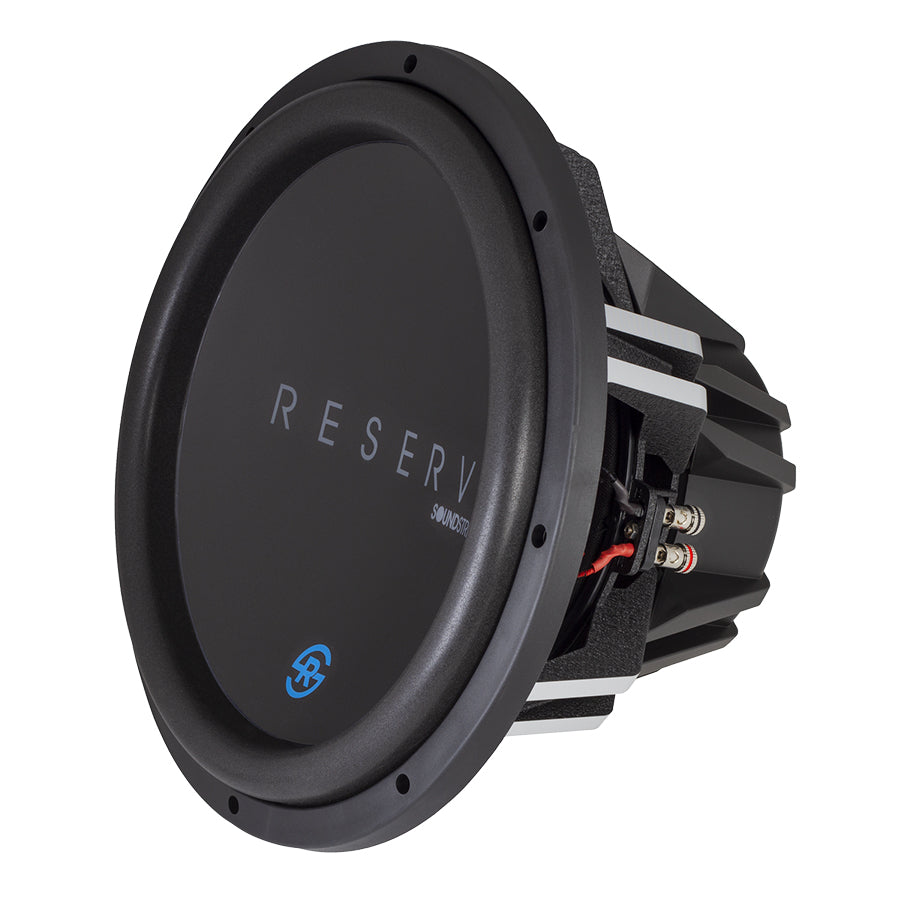

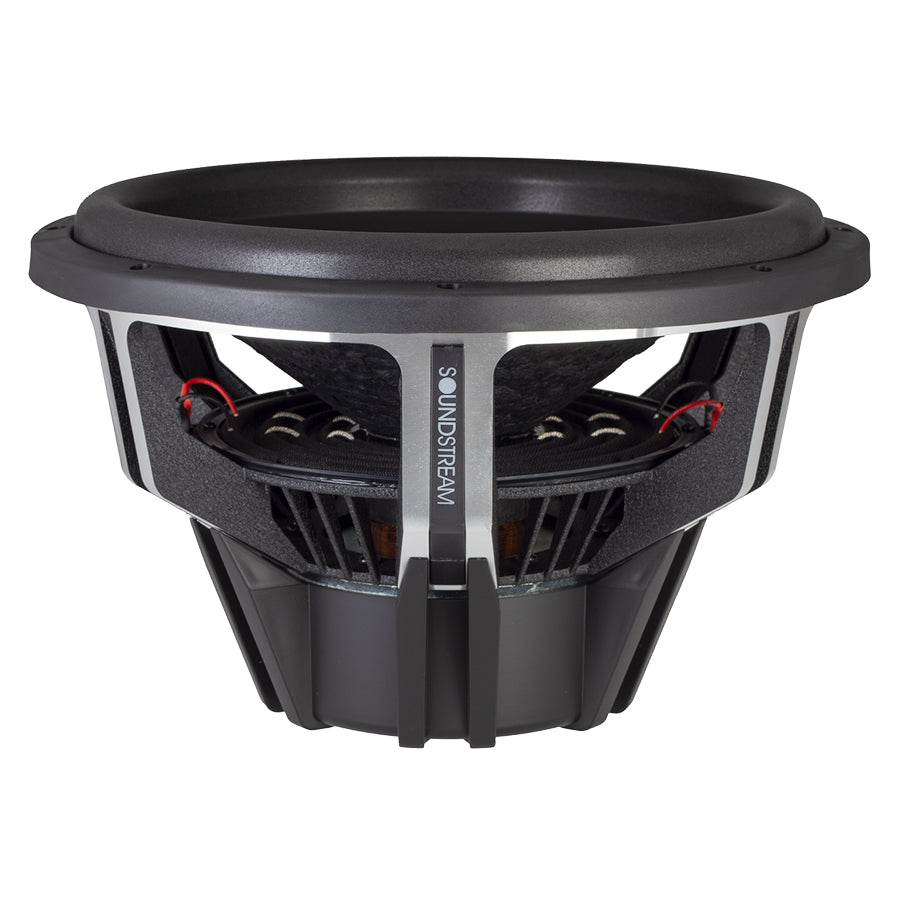

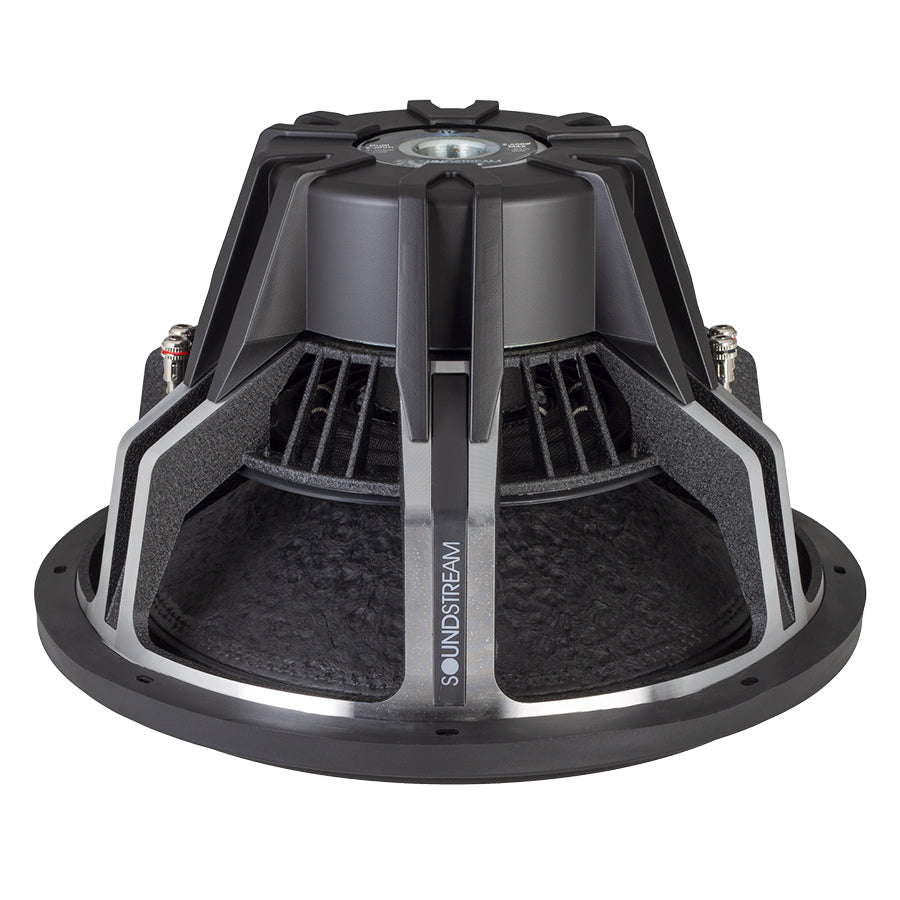

SoundStream RSW.152
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 26 Hz |
| Q factor | 0.90 |
| Sensitivity | 86.9 dB |
| Linear excursion | ± 16.5 mm |
| Program power | 2600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.9dB
Thiele & Small parameters
- Resonance frequency (free air) fS 26Hz
- Mechanical quality factor QMS 6.45
- Electrical quality factor QES 1.05
- Total quality factor QTS 0.90
Large signal parameters
- Maximum linear excursion (one way) xmax 16.5mm
- Maximum excursion before damage xlim 53.5mm
- Air volume displaced at xmax VD 1369cm³
- Power handling P 1300W
- Program power Pmax 2600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 4.45mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 21.7N/A
- Motor constant Bl/√RE 11.4N/√W
Diaphragm
- Effective diameter 325mm
- Effective area SD 829cm²
- Moving mass (including air load) MMS 420g
- Moving mass MMD 403g
- Material Spruce pulp cone
Suspensions
- Stiffness KMS 11.2N/mm
- Compliance CMS 89.4µm/N
- Equivalent volume to the compliance VAS 87.2L
- Mechanical resistance RMS 10.6N·s/m
- Surround material Poly-ether foam
- Spider material Poly-cotton
Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 394mm
- Baffle cutout diameter 356mm
- Mounting depth 213mm
- Volume occupied by the driver (estimated) 4.7L
- Frame material Die-Cast Aluminium
