DS18 ZXI8.4D

2x2Ω
2x4Ω

Subwoofer

Nominal diameter8″ / 218 mm
Resonance45 Hz
Q factor0.69
Sensitivity81.4 dB
Program Power1200 W

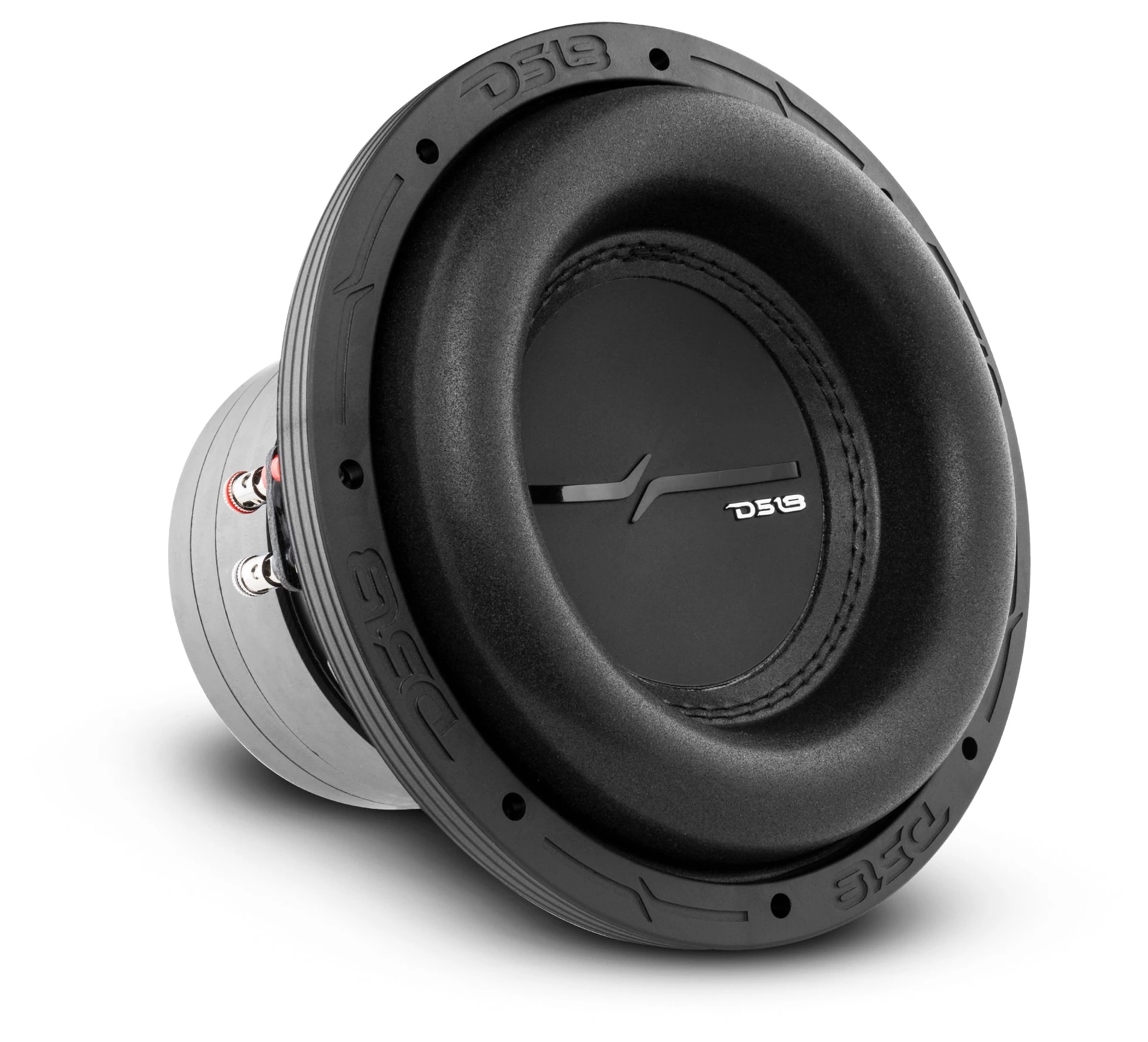

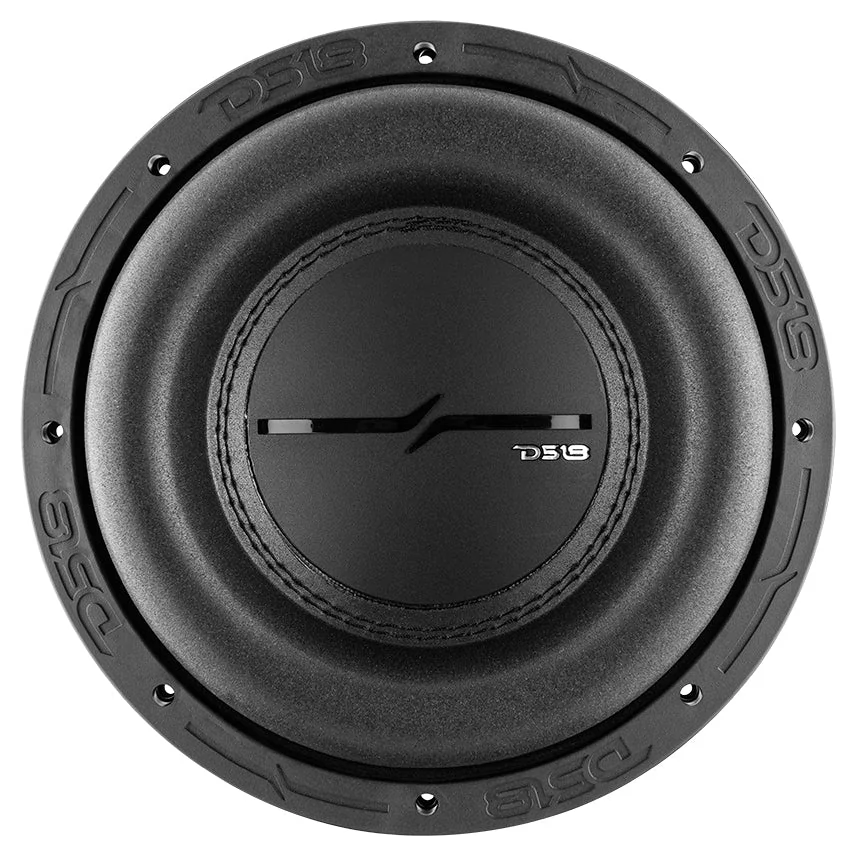

DS18 ZXI8.4D SubwooferDS18 ZXI8.4D SubwooferDS18 ZXI8.4D Subwoofer
Excursion
Velocity
SPL
Phase
Group delay
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 81.4dB
  • Frequency response 25 - 880Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 45Hz
  • Mechanical quality factor QMS 5.32
  • Electrical quality factor QES 0.79
  • Total quality factor QTS 0.69

Large signal parameters

  • Power handling P 600W
  • Program power Pmax 1200W

Voice Coil

  • Nominal impedance Z 2 x 4Ω
  • DC resistance (in series) RE 8.4Ω
  • Inductance (1kHz, in series) LE 1.88mH
  • VC Diameter 50.8mm
  • Winding material Copper Clad Aluminium
  • Former material Black Aluminum

Magnet

  • Force factor (in series) Bl 16.1N/A
  • Motor constant Bl/√RE 5.57N/√W
  • Diameter 134mm
  • Weight 2.948kg
  • Material Ferrite

Diaphragm

  • Effective diameter 155mm
  • Effective area SD 189cm²
  • Moving mass MMS 87.7g
  • Moving mass (without air load) MMD 85.6g
  • Material Non Pressed Paper

Suspensions

  • Stiffness KMS 7.41N/mm
  • Compliance CMS 135µm/N
  • Equivalent volume to the compliance VAS 6.75L
  • Mechanical resistance RMS 4.66N·s/m
  • Surround material EPDM
  • Spider material Sandblasted Black

Dimensions

  • Nominal diameter 8″
  • 218mm
  • Overall diameter 218mm
  • Baffle cutout diameter 200mm
  • Overall depth 174mm
  • Flange thickness 34mm
  • Mounting depth 140mm
  • Volume occupied by the driver 1.02L
  • Frame material Aluminium
Impedance
Step response
Tone Burst

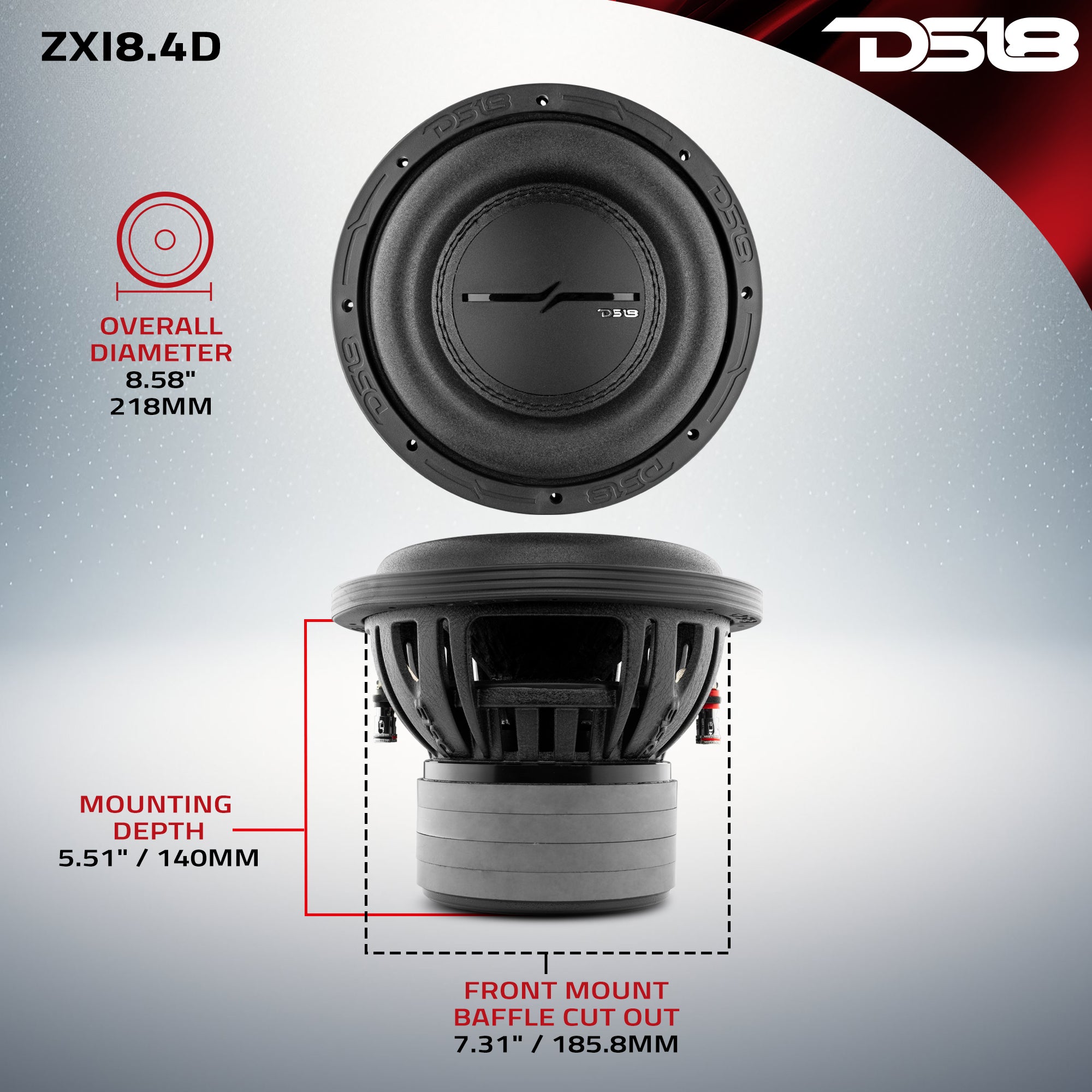

DS18 ZXI8.4D Dimensions
PDF fileDatasheet
